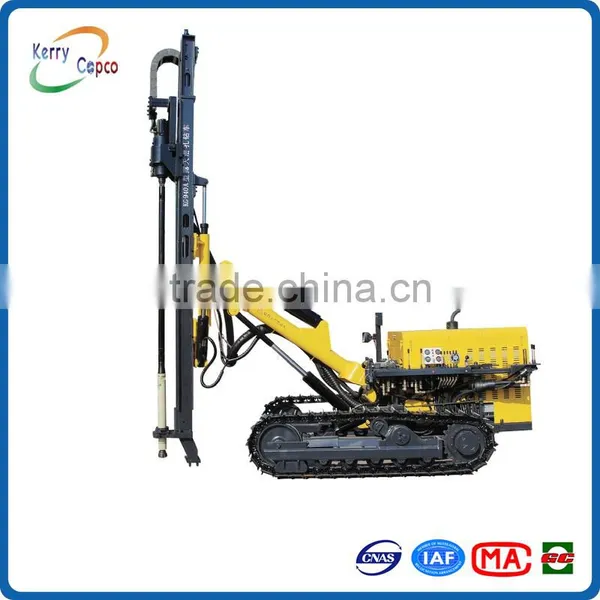

KG940A High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig
US$ 33,600 - 39,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KG935 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 28,100 - 32,700MOQ: 1 Set -
KG930A High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 25,100 - 29,200MOQ: 1 Set
-
KG925D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 21,700 - 25,300MOQ: 1 Set
-
KG925 Middle Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 21,700 - 25,300MOQ: 1 Set
-
KG920S Middle Pressure Diesel Engine and Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 24,300 - 28,400MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Zhejiang, China
Brand Name
Kaishan
Model Number
KG940A
Usage
Ore
Voltage
380V
Power(W)
58 kw
Dimension(L*W*H)
5.4*2.33*2.02 m
Weight
6500 kg
Certification
ISO9001:2000
Warranty
1 Year
After-sales Service Provided
No overseas service provided

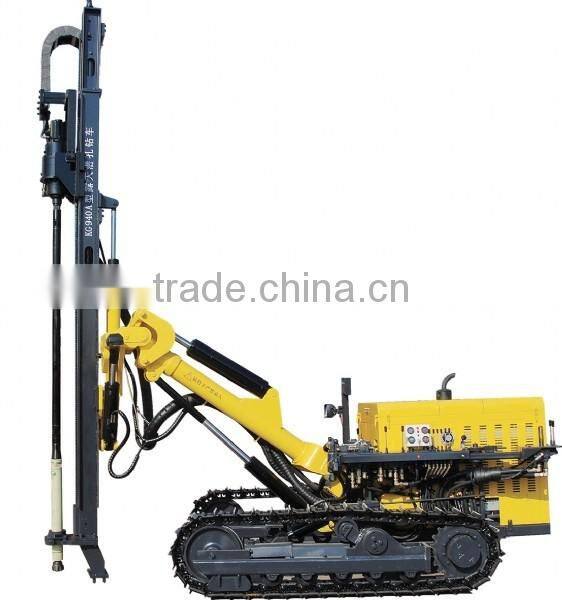

KAISHAN KG940A High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig
High Pressure Pneumatic Surface DTH Drilling Rig
KG940 series surface DTH drilling rig retains the characteristics of KY140 drilling rig. The hydraulic system, drilling boom components, traveling components have been optimized and upgraded. Motivation and climb capacity is stronger and drilling angle is more reasonable. The rotation speed and advancing speed can be faster. The motor service life is longer and the reliability is better.
KG960 series surface DTH drilling rig with strengthened gyrator to provide strong torque, and can meet the requirements of drilling holes of the maximum 220mm diameter. The double location walking control mode with both of safety and comport, and unique rubber hose following mechanism protects the hose better.
| High Pressure Pneumatic Surface DTH Drilling Rig Specification | |||
| Model | KG940A | KG940D | KG960 |
| Rock Rigidity | f=6-20 | f=6-20 | f=6-20 |
| Drilling Hole Diameter | 105-165mm | 105-165mm | 105-220mm |
| Drilling Depth | 25m | 25m | 40m |
| Traveling Speed | 0-2.0km/h | 0-2.0km/h | 0-2.5(slow) / 4.0(fast)km/h |
| Rotation Speed | 0-100r/min | 0-100r/min | 0-120r/min |
| Rotation Torque | 2800N.m | 2800N.m | 4500N.m |
| Max. Feed Force | 22000N | 22000N | 22000N |
| Push Way | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain |
| Feed Stroke | 3000mm | 3000mm | 3000mm |
| Climb Capacity | 30º | 30º | 30º |
| Ground Clearance | 320mm | 320mm | 370mm |
| Weight | 6500kg | 6500kg | 7000kg |
| Dimension | 5.4*2.33*2.02m | 5.4*2.33*2.02m | 7.25*2.75*2.8m |
| Guide Tilt | 180º | 180º | 180º |
| Guide Swing | 50º(15º) right, 50º (95º)left | 50º(15º) right, 50º (95º)left | 40º(3º) right, 40º (91º)left |
| Boom Lift | 45ºup, 25ºdown | 45ºup, 25ºdown | 45ºup, 25ºdown |
| Boom Swing | 45º right, 45º left | 45º right, 45º left | 45º right, 45º left |
| Compensation Stroke | 900mm | 900mm | 900mm |
| Engine Model | YC4D80 | Electromotor | 4BTA3.9-C125 |
| Power | 58kw | 45kw | 93kw |
| Working Pressure | 10-24bar | 10-24bar | 14-24bar |
| Air Consumption | 12-24m³/min | 12-24m³/min | 12-24m³/min |
| Air Hose | φ51*2*20 | φ51*2*20 | φ51*2*20 |
| Recommended Hammer | KQG45A (HD45A; HD45S) | KQG45A (HD45A; HD45S) | KQG45A (HD45A; HD45S) |
| Recommended Rod | φ76*3000mm (φ89*3000mm) | φ76*3000mm (φ89*3000mm) | φ76*3000mm (φ89*3000mm; φ102*3000mm) |
| Recommended Bit | φ105-165mm (115mm; 105mm) | φ105-165mm (115mm; 105mm) | φ105-220mm (115mm; 105mm) |
| Recommended Air Compressor | LGCY-19.5/19 (LGCY18/17; LGCY22/20) | LGCY-19.5/19 (LGCY18/17; LGCY22/20) | LGCY-22/20 (LGCY18/17; LGCY19.5/19) |
| Please contact us for further information. | |||

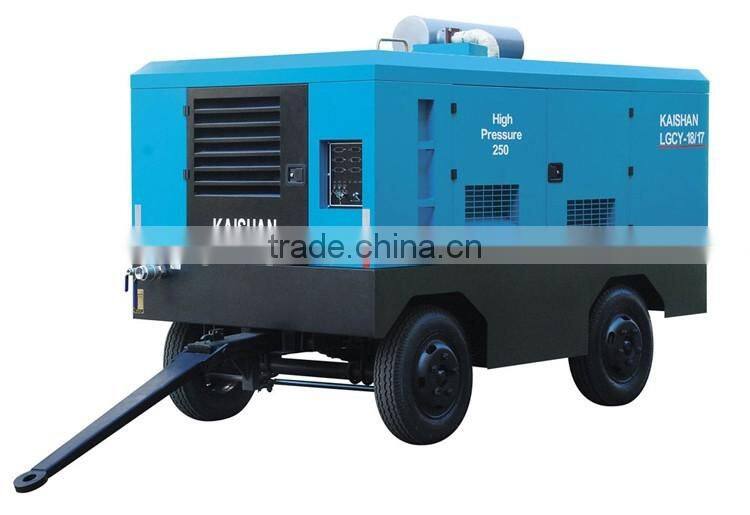

Recommended Diesel engine portable screw air compressor (LGCY-18/17):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
