KG925D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
US$ 21,700 - 25,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KG925 Middle Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 21,700 - 25,300MOQ: 1 Set -
KG920S Middle Pressure Diesel Engine and Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 24,300 - 28,400MOQ: 1 Set
-
KG920D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 17,300 - 20,300MOQ: 1 Set
-
KG920A Middle Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 18,100 - 21,300MOQ: 1 Set
-
KG910C Low Pressure Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 13,200 - 15,700MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Electric
Place of Origin
Zhejiang, China
Brand Name
Kaishan
Model Number
KG925D
Usage
Ore
Voltage
380V
Power(W)
30 kw
Dimension(L*W*H)
5.68*2.13*2.1 m
Weight
4000 kg
Certification
ISO9001:2000
Warranty
1 Year
After-sales Service Provided
No overseas service provided

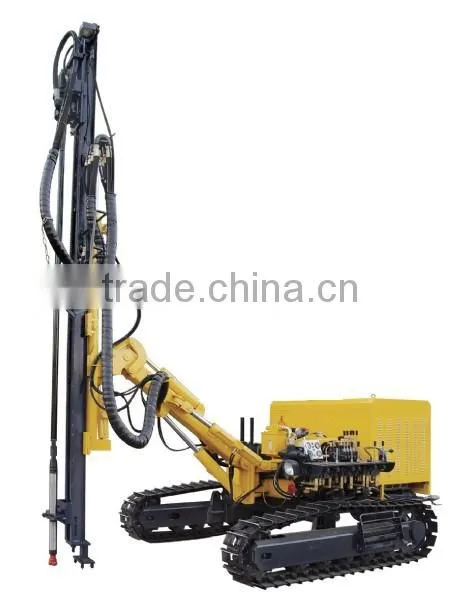

KAISHAN KG925D Middle Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling Rig
Middle Pressure Pneumatic Surface DTH Drilling Rig

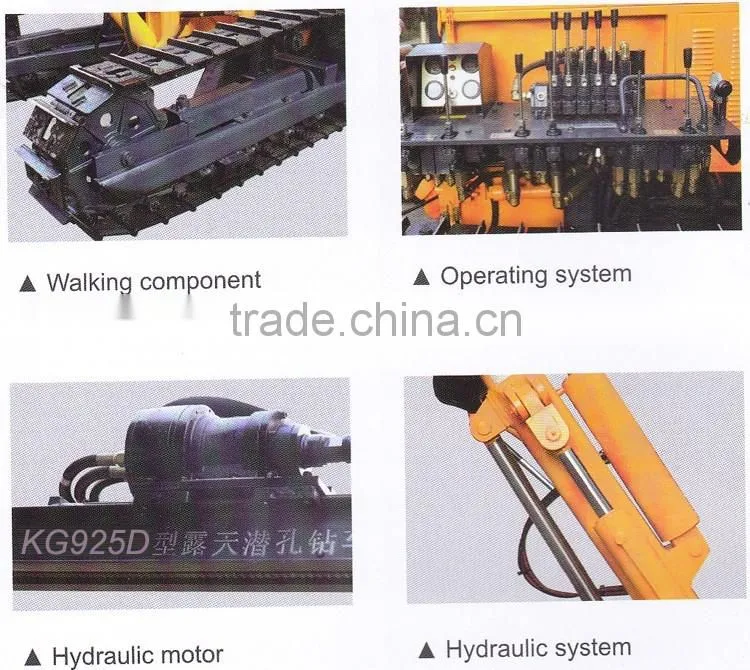

KG920 series surface DTH drilling rig retains the characteristics of KY125 drilling rig. The hydraulic system, drilling boom components, traveling components have been optimized and upgraded. Motivation and climb capacity is stronger and drilling angle is more reasonable. The rotation speed and advancing speed can be faster. The motor service life is longer and the reliability is better.
KG925 series surface DTH drilling rig is with variable pitch mechanism and double pivot angle mechanism. Pitch and pendulum angle is big, and moves smoothly, the cycloid motor gyrator with high speed and big torque.
| Middle Pressure Pneumatic Surface DTH Drilling Rig Specification | ||||||
| Model | KG920A | KG920B | KG920D | KG920S | KG925 | KG925D |
| Rock Rigidity | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 | f=6-20 |
| Drilling Hole Diameter | 80-115mm | 80-115mm | 80-115mm | 80-115mm | 80-115mm | 80-115mm |
| Drilling Depth | 25m | 25m | 25m | 25m | 25m | 25m |
| Traveling Speed | 0-1.8km/h | 0-1.8km/h | 0-1.8km/h | 0-2.0km/h | 0-2.0km/h | 0-2.0km/h |
| Rotation Speed | 0-70r/min | 0-70r/min | 0-70r/min | 0-120r/min | 0-120r/min | 0-120r/min |
| Rotation Torque | 1400N.m | 1400N.m | 1400N.m | 1400N.m | 1400N.m | 1400N.m |
| Max. Feed Force | 15000N | 15000N | 15000N | 15000N | 15000N | 15000N |
| Push Way | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain | Cylinder. Chain |
| Feed Stroke | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
| Climb Capacity | 30º | 30º | 30º | 30º | 30º | 30º |
| Ground Clearance | 290mm | 290mm | 290mm | 350mm | 290mm | 290mm |
| Weight | 4000kg | 4200kg | 4000kg | 5500kg | 4200kg | 4000kg |
| Dimension | 5.5*2.2*2.3m | 5.5*2.2*2.3m | 5.5*2.2*2.3m | 5.5*2.2*2.35m | 5.68*2.13*2.1m | 5.68*2.13*2.1m |
| Guide Tilt | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down | 50º up, 135º down |
| Guide Swing | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left | 45º right, 100º left |
| Boom Lift | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown | 25ºup, 50ºdown |
| Boom Swing | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left | 45º right, 44º left |
| Compensation Stroke | 900mm | 900mm | 900mm | 900mm | 900mm | 900mm |
| Engine Model | YC2108 | YC4D80 | Electromotor | YC4D80 / Electromotor | YC4D80 | Electromotor |
| Power | 33kw | 58kw | 30kw | 58/45kw | 58kw | 30kw |
| Working Pressure | 7-17bar | 7-17bar | 7-17bar | 7-17bar | 7-17bar | 7-17bar |
| Air Consumption | 9-16m³/min | 9-16m³/min | 9-16m³/min | 9-16m³/min | 9-16m³/min | 9-16m³/min |
| Air Hose | φ38*2*20 | φ38*2*20 | φ38*2*20 | φ38*2*20 | φ38*2*20 | φ38*2*20 |
| Recommended Hammer | QCW930 (KQG45S; HD45S; KQG35A) | QCW930 (KQG45S; HD45S; KQG35A) | QCW930 (KQG45S; HD45S; KQG35A) | QCW930 (KQG45S; HD45S; KQG35A) | KQG45S (HD45S; QCW930; KQG35A) | KQG45S (HD45S; QCW930; KQG35A) |
| Recommended Rod | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) | φ64*3000mm (φ76*3000mm) |
| Recommended Bit | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) | φ80-115mm (105mm; 90mm; 115mm) |
| Recommended Air Compressor | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) | LGCY-13/13 (LGCY-15/13; LGCY-12/10; LGCY-13/17) |
| Please contact us for further information. | ||||||
Recommended Diesel engine portable screw air compressor (LGCY-13/17):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
