KG935 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig

Guangzhou Kerrycopco Machinery And Equipment Co., Ltd.
KG935 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig thumbnail-1

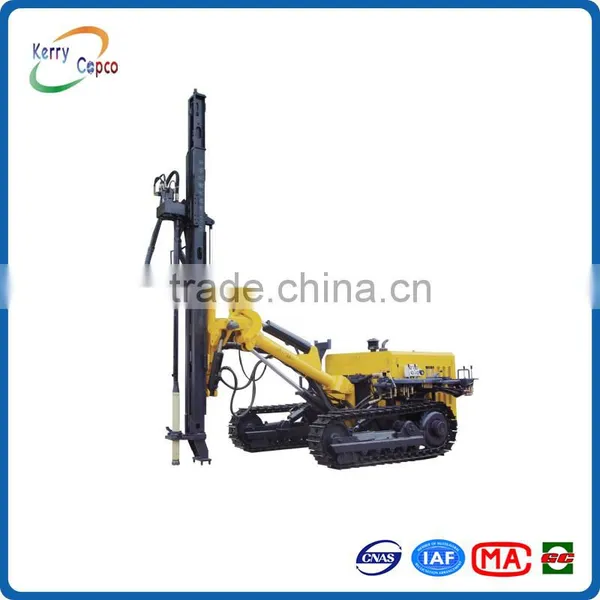

KG935 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig photo-1
US$ 28,100 - 32,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Zhejiang, China
Brand Name Kaishan
Model Number KG935
Usage Ore
Voltage 380V
Power(W) 58 kw
Dimension(L*W*H) 5.4*2.33*2.02 m
Weight 6500 kg
Certification ISO9001:2000
Warranty 1 Year
After-sales Service Provided No overseas service provided

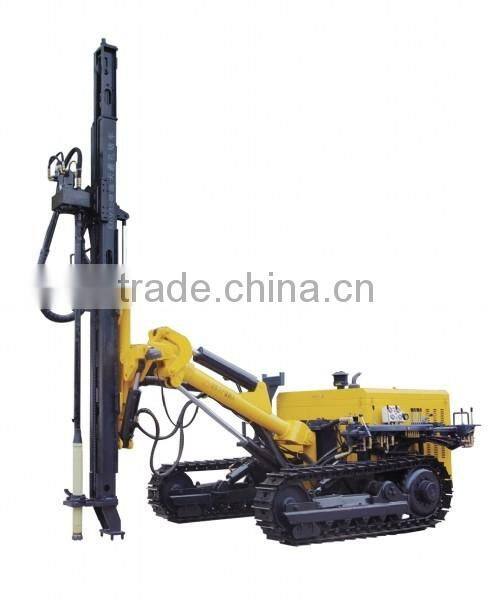

KAISHAN KG935 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling Rig



KG935 high pressure diesel engine crawler mounted pneumatic surface DTH drilling rig



High Pressure Pneumatic Surface DTH Drilling Rig



KG930 series surface DTH drilling rig retains the characteristics of KY130 drilling rig. The hydraulic system, drilling boom components, traveling components have been optimized and upgraded. Motivation and climb capacity is stronger and drilling angle is more reasonable. The rotation speed and advancing speed can be faster. The motor service life is longer and the reliability is better.



KG935 series surface DTH drilling rig has the following characteristics:



1. Double cycloid motor drive gyrator with large output torque and high rotation speed.



2. Enhanced carriage is equipped with oil cylinder-plate chain feed mechanism with has high strength, good rigidity and the hoisting speed is faster.



3. Left and right caterpillar with automatic leveling function to adapt themselves to the ground of the ups and downs.



High Pressure Pneumatic Surface DTH Drilling Rig Specification
ModelKG930AKG930BKG930DKG935KG935D
Rock Rigidityf=6-20f=6-20f=6-20f=6-20f=6-20
Drilling Hole Diameter80-125mm80-125mm80-125mm105-125mm105-125mm
Drilling Depth25m25m25m25m25m
Traveling Speed0-2.0km/h0-2.0km/h0-2.0km/h0-2.5km/h0-2.5km/h
Rotation Speed0-107r/min0-107r/min0-107r/min0-100r/min0-100r/min
Rotation Torque2000N.m2000N.m2000N.m2400N.m2400N.m
Max. Feed Force15000N15000N15000N15000N15000N
Push WayCylinder. ChainCylinder. ChainCylinder. ChainCylinder. ChainCylinder. Chain
Feed Stroke3000mm3000mm3000mm3300mm3300mm
Climb Capacity30º30º30º30º30º
Ground Clearance320mm320mm320mm320mm320mm
Weight5000kg5000kg5000kg6500kg6500kg
Dimension5.4*2.2*2.05m5.4*2.2*2.05m5.4*2.2*2.05m5.4*2.33*2.02m5.4*2.33*2.02m
Guide Tilt50º up, 135º down50º up, 135º down50º up, 135º down180º180º
Guide Swing45º right, 100º left45º right, 100º left45º right, 100º left50º(15º) right, 50º (95º)left50º(15º) right, 50º (95º)left
Boom Lift25ºup, 50ºdown25ºup, 50ºdown25ºup, 50ºdown45ºup, 25ºdown45ºup, 25ºdown
Boom Swing45º right, 44º left45º right, 44º left45º right, 44º left45º right, 45º left45º right, 45º left
Compensation Stroke900mm900mm900mm900mm900mm
Engine ModelYC4D80YC4D80ElectromotorYC4D80Electromotor
Power58kw58kw37kw58kw45kw
Working Pressure10-24bar10-24bar10-24bar10.5-24.6bar10.5-24.6bar
Air Consumption12-24m³/min12-24m³/min12-24m³/min12-24m³/min12-24m³/min
Air Hoseφ38*2*20φ38*2*20φ38*2*20φ51*2*20φ51*2*20
Recommended HammerKQG45A (HD45A; HD45S)KQG45A (HD45A; HD45S)KQG45A (HD45A; HD45S)KQG45A (HD45A; HD45S)KQG45A (HD45A; HD45S)
Recommended Rodφ76*3000mmφ76*3000mmφ76*3000mmφ76*3000mmφ76*3000mm
Recommended Bitφ80-125mm (115mm; 105mm)φ80-125mm (115mm; 105mm)φ80-125mm (115mm; 105mm)φ80-125mm (115mm; 105mm)φ80-125mm (115mm; 105mm)
Recommended Air CompressorLGCY-18/17 (LGCY-19.5/19; LGCY22/20)LGCY-18/17 (LGCY-19.5/19; LGCY22/20)LGCY-18/17 (LGCY-19.5/19; LGCY22/20)LGCY-19.5/19 (LGCY18/17; LGCY22/20)LGCY-19.5/19 (LGCY18/17; LGCY22/20)
Please contact us for further information.



KG935 high pressure diesel engine crawler mounted pneumatic surface DTH drilling rig



Recommended Diesel engine portable screw air compressor (LGCY-18/17):

KG935 high pressure diesel engine crawler mounted pneumatic surface DTH drilling rig



Recommended components and spare parts for drilling equipments:

KG935 high pressure diesel engine crawler mounted pneumatic surface DTH drilling rig



Please contact us for further information.
