KG925S Diesel Engine and Electric Motor Crawler Mounted Pneumatic Rock Bolting Rig
US$ 25,600 - 29,900
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Diesel and Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KG960 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 44,100 - 50,900MOQ: 1 Set -
KG940D High Pressure Electric Motor Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 33,600 - 39,000MOQ: 1 Set
-
KG940A High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 33,600 - 39,000MOQ: 1 Set
-
KG935 High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 28,100 - 32,700MOQ: 1 Set
-
KG930A High Pressure Diesel Engine Crawler Mounted Pneumatic Surface DTH Drilling RigUS$ 25,100 - 29,200MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Other, Diesel and Electric
Place of Origin
Zhejiang, China
Brand Name
Kaishan
Model Number
KG925S
Usage
Ore
Voltage
380V
Power(W)
58 / 45 kw
Dimension(L*W*H)
5.9*2.2*2.3 m
Weight
7000 kg
Certification
ISO9001:2000
Warranty
1 Year
After-sales Service Provided
No overseas service provided

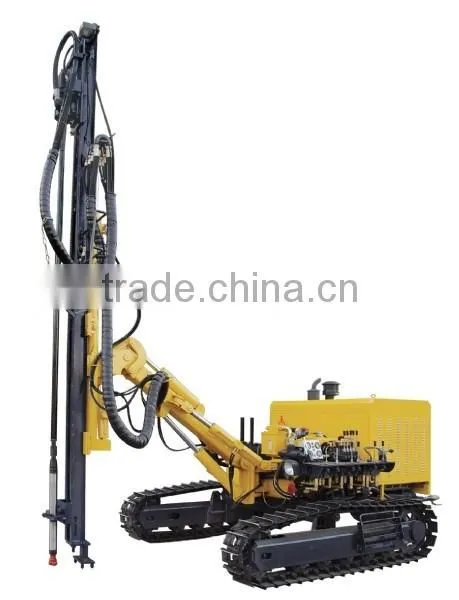

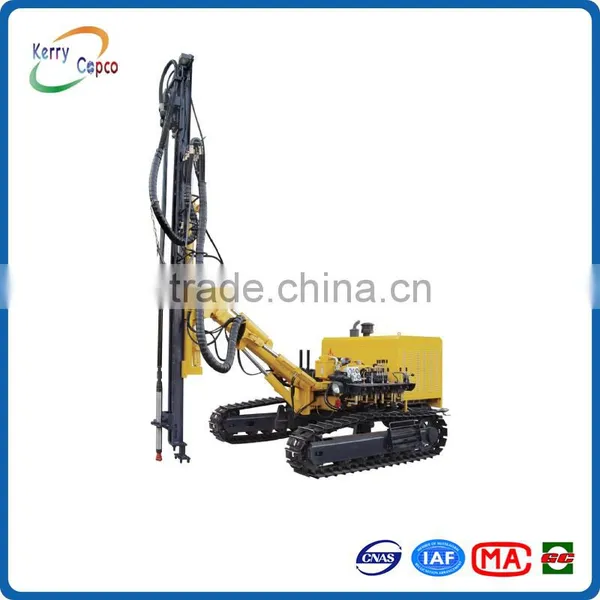

KAISHAN KG925S Diesel Engine and Electrical Motor Crawler Mounted Pneumatic Rock Bolting Rig
Rock Bolting Rig
KG925S surface DTH drilling rig is with variable pitch mechanism and double pivot angle mechanism. Pitch and pendulum angle is big, and moves smoothly, the cycloid motor gyrator with high speed and big torque. It is special designed for rock bolting rig (anchor rig).
KG935S surface DTH drilling rig is special designed for rock bolting rig (anchor rig); and it has the following characteristics:

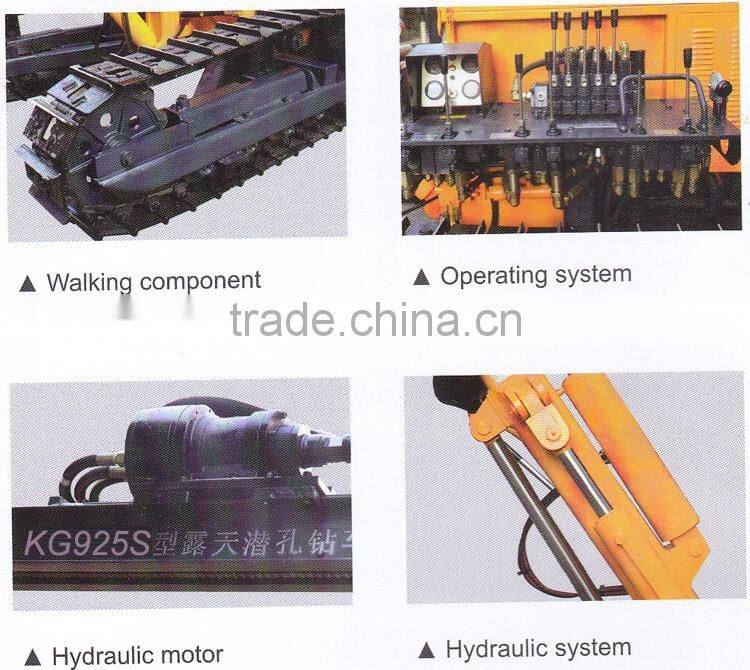

1. Double cycloid motor drive gyrator with large output torque and high rotation speed.
2. Enhanced carriage is equipped with oil cylinder-plate chain feed mechanism with has high strength, good rigidity and the hoisting speed is faster.
3. Left and right caterpillar with automatic leveling function to adapt themselves to the ground of the ups and downs.
| Rock Bolting Rig Specification | ||
| Model | KG925S | KG935S |
| Rock Rigidity | f=6-20 | f=6-20 |
| Drilling Hole Diameter | 105-152mm | 105-152mm |
| Drilling Depth | 25m | 25m |
| Traveling Speed | 0-3.5km/h | 0-4.0km/h |
| Rotation Speed | 0-120r/min | 0-120r/min |
| Rotation Torque | 4500N.m | 4500N.m |
| Max. Feed Force | 15000N | 15000N |
| Push Way | Cylinder. Chain | Cylinder. Chain |
| Feed Stroke | 3000mm | 3000mm |
| Climb Capacity | 30º | 30º |
| Ground Clearance | 450mm | 400mm |
| Weight | 7000kg | 7800kg |
| Dimension | 5.9*2.2*2.3m | 5.4*2.2*2.3m |
| Guide Tilt | 180º | 180º |
| Guide Swing | 50º right, 50º left | 50º(15º) right, 50º (95º)left |
| Boom Lift | 45ºup, 25ºdown | 45ºup, 25ºdown |
| Boom Swing | 45º right, 45º left | 45º right, 45º left |
| Compensation Stroke | 900mm | 900mm |
| Engine Model | YC4D80 / Electromotor | YC4D80ZD / Electromotor |
| Power | 58/45kw | 70/45kw |
| Working Pressure | 10-24bar | 10-24bar |
| Air Consumption | 12-24m³/min | 12-24m³/min |
| Air Hose | φ38*2*20 (φ51*2*20) | φ38*2*20 (φ51*2*20) |
| Recommended Hammer | KQG45A (KQG55A) | KQG45A (KQG55A) |
| Recommended Rod | φ76*3000mm (φ89*3000mm) | φ76*3000mm (φ89*3000mm) |
| Recommended Bit | φ105-152mm (115mm; 138mm) | φ105-152mm (115mm; 138mm) |
| Recommended Air Compressor | LGCY-18/17 (LGCY22/20) | LGCY-18/17 (LGCY22/20) |
| Please contact us for further information. | ||
Recommended Diesel engine portable screw air compressor (LGCY-18/17):
Recommended components and spare parts for drilling equipments:
Please contact us for further information.
