Specifications
Small wheel loaderCE Certificated
Engine:Changchai L22
Hydraulic pilot control
Various tools and quick hitch device
Features
1. The ZL08A wheel loader uses the branded DI diesel engine as power, so it has the advantages of easy start, less oil consumption, strong power and environmental protection.
2. Using the dedicated engineering axles, the machine can make improvement for integral mechanical gearboxes, dual steering cylinders and so on, and can facilitate the operation.
3. The wheel loader uses the branded big-flow hydraulic pumps and steering gear. The hoisting arms, direction change and so on take less time and the work efficiency is greatly increased through its matching with the diesel engine.
4. With 24V battery (dual battery), the wheel loader will have an easy start in winter.
5. Its branded and high-quality rubber tire is far better for long-time operations in various environments.
6. The wheel loader employs the high-articulated structure (the distance between upper and lower hinge plates is short and the turning radius is small) to further stabilize the driving operation.
7. Featuring unique appearance, the cab of the wheel loader has a large operating space and wide vision so the machine achieves much safer operation.
8. The wheel loader has anoverhauled cover that is easy for maintenance.
Technical Specifications
Main Technical Parameter of ZL08 | |
| Item | Parameter |
| Rated load (kg) | 800 |
| Bucket capacity (m3) | 0.4 |
| Wheel tread (mm) | 1160 |
| Wheel base (mm) | 1620 |
| Min turning radius (mm) | 3000 |
| Min ground clearance (mm) | 220 |
| Dumping height (mm) | 2300 |
| Corresponding dumping reach (mm) | 900 |
| Lifting time (s) | 4.5 |
| Hydraulic cycle time (s) | 9 |
| Maximum excavating force (KN) | 21 |
| Drive mode | Rear Wheel Drive |
| Machine weight (kg) | 2000 |
| Overall dimensions (mm) (Length*width*height) | 4480*1400*2200 |
| Engine model | ChangchaiL22 |
| Rated power of engine (kw) | 15.5 |
| Rated speed of engine (rpm) | 2200 |
Weili World is a major manufacturer of wheel loader, based in China.
We offer various types of products such as wheel loaders, internal combustion forklift trucks, wheel loader parts and so on.
Our products are high quality and competitively priced. We can complete the full chain of manufacturing loader pitchforks, rims, etc. right here in China. Our lower manufacturing cost can save your purchasing cost.
Attachments

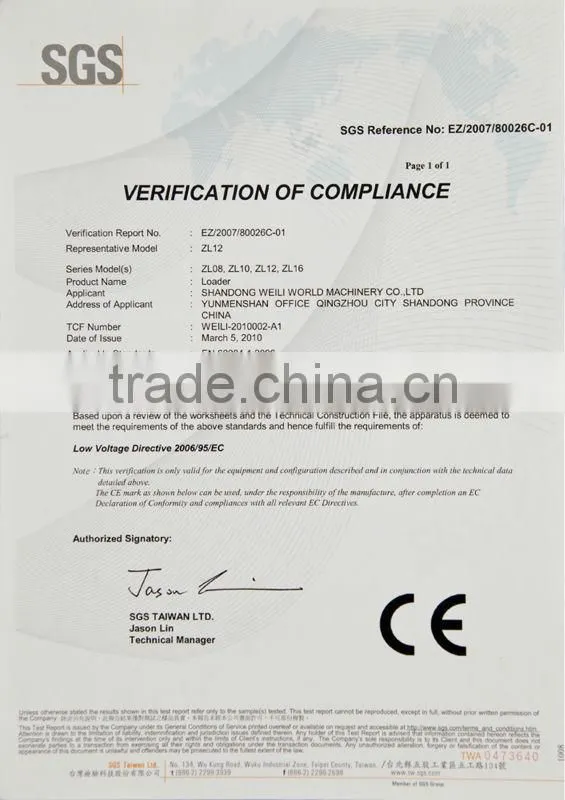

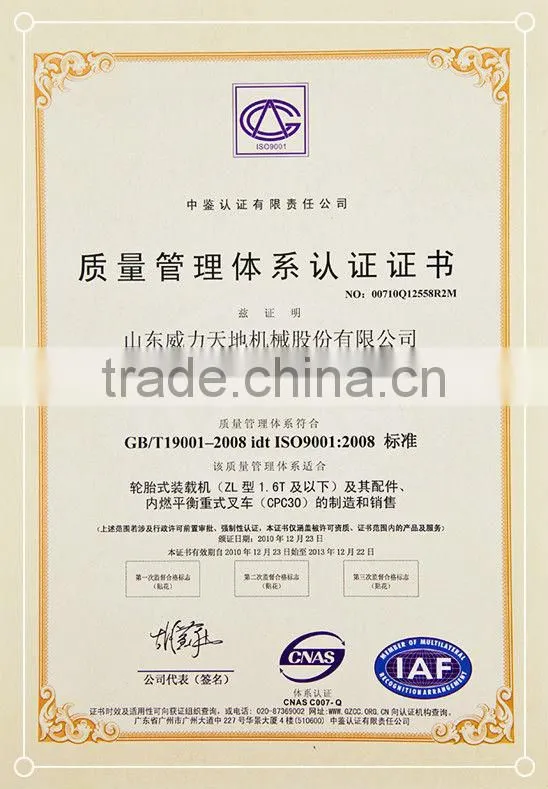

Certificates and Honors
BAUMA CHINA 2012 IN SHANGHAI

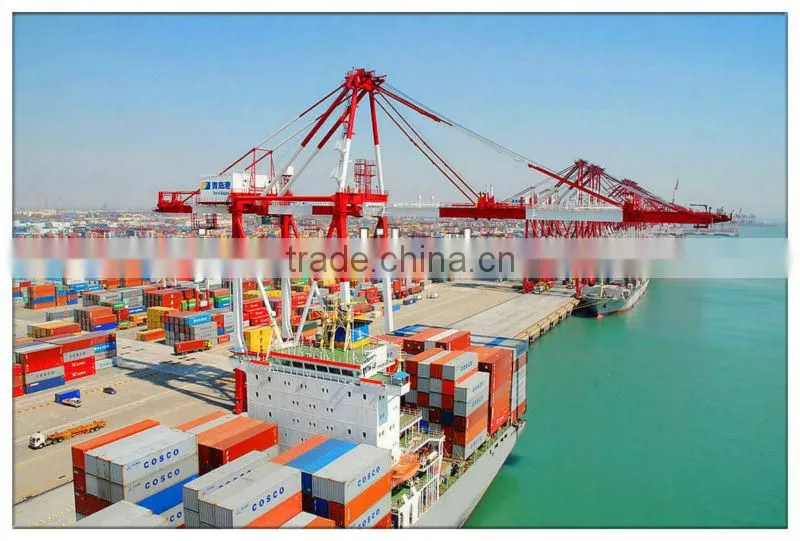

Shipping in Qingdao Port
