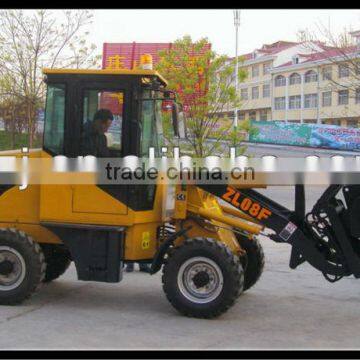

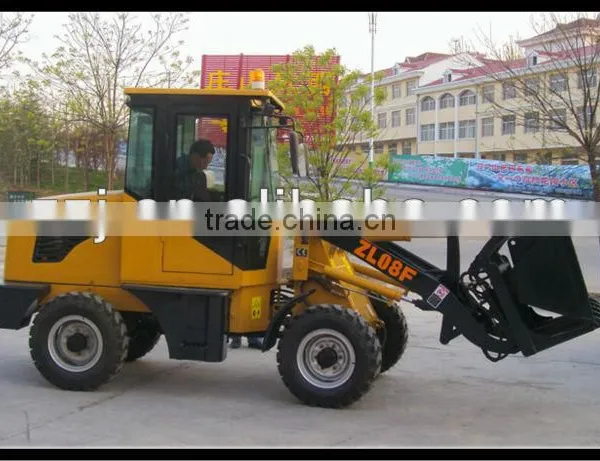

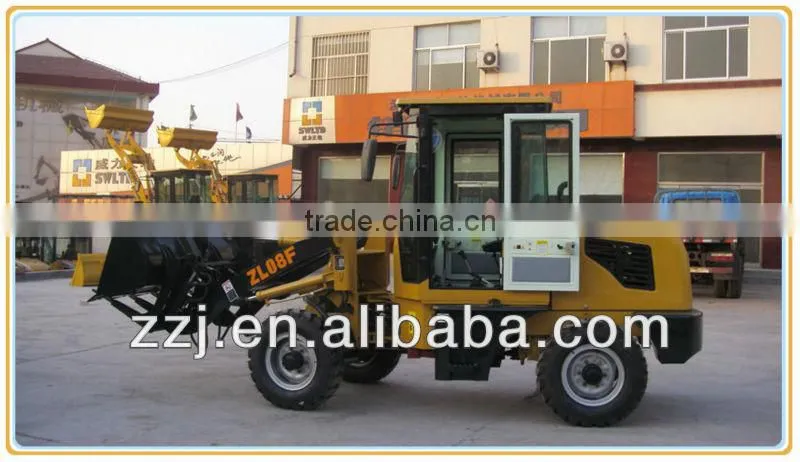

Help CenterMini Front Loader ZL08F With ce
Related Products
Specifications
1.mini front loader ZL08F.2.CE Certification, ISO 9001.
3.Longevity.
4.Low cost of ownership.
5.Easy operation
Technical Specifications of Model ZL08F of Wheel Loaders ( 4WD, One-Cylinder)
1.0 Engine Details
(1) Model: Changcai L24
(2) Engine type: In-line arrangement, water cooled, one-cycle diesel Engine
(3) Rated Power: 17KW (24 H. P. )
(4) Rated Speed: 2200 r/min(rpm)
(5) Fuel Consumption ratio in standard working condition: 269g/kw. H
2.0 Steering System
(1) Cycloid full hydraulic steering system: BZZ-80
(2) System Pressure: 10MPa
(3) Steering Cylinder: Φ76x Φ63x160
(4) Speed
--i Forward shift (forward I) 7.19
--ii Forward shift (forward II) 3.35
--iii Reverse shift (Reverse I) 7.19
--iiii Reverse shift (Reverse II) 3.35
3.0 Bucket
(1) Bucket Capacity: 0.4 m3
(2) Bucket width: 1300mm
(3) Bucket type: Heavy duty bolt on teeth
(4) Max. Breakout Force: 22.5KN
(5) Rated Load: 800kg
(6) Operating Weight: 2000kg
4.0 Overall Dimension
(1) Overall Length ( Bucket on ground position ): 4480mm
(2) Overall Height
(a) Ground to Cab Top: 1400mm
(b) Ground to exhaust pipe: It is below from the top of cabin
(c) Dumping Height: 2300mm
(3) Overall Width: 2200mm
5.0 Operating Specifications
(1) Drive Means: Two-wheel drive
(2) Min Turning Radius: 3000mm
(3) Driving System: Mechanical
(4) Dumping Reach at max height: 900mm
(5) Min Base to the ground: 220mm
(6) Time of raise: 4.5sec.
(7) Hydraulic cycle time: 8.5sec.
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
7.0 Wheelbase:
1620mm
8.0 Track:
1160mm
