ZSW series plate feeding machine
Plate feeding machine Application:
Plate feeding machine is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. Plate feeding machine are widely used in mining, building-material, silicate andchemical industry in the crushing and screening plants.In the Sand-Stone production line, Plate feeding machine can send materials to crusher
evenly and continuously and at the same time, it can screen materials roughly.Vibrating feeder can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
Plate feeding machine Features:
1.The plate feeding machine features double screening and embodies the functions of dirt removing, screening and feeding. It is characterized by even feeding, excellent continuity and adjustable vibrating force.
2. Plate feeding machine is Smooth operation, great feeding capacity and high efficiency.
3.Eccentric block is the vibration source which features smooth operation, low noise, little electricity consumption, excellent adjustability and causes no material clashing.
Plate feeding machine working principle:
Plate feeding machine consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials
pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached

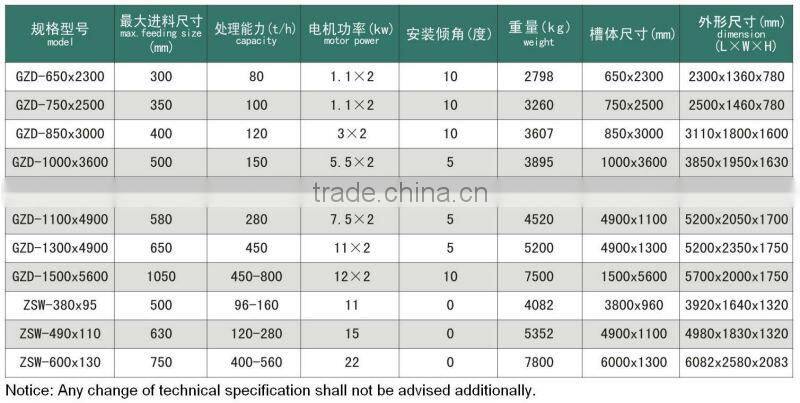

Plate feeding machine Specification:

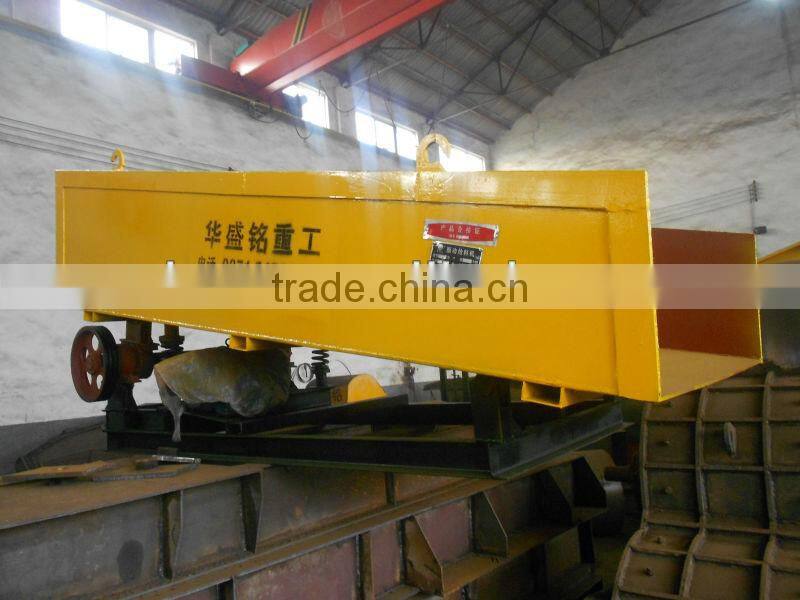

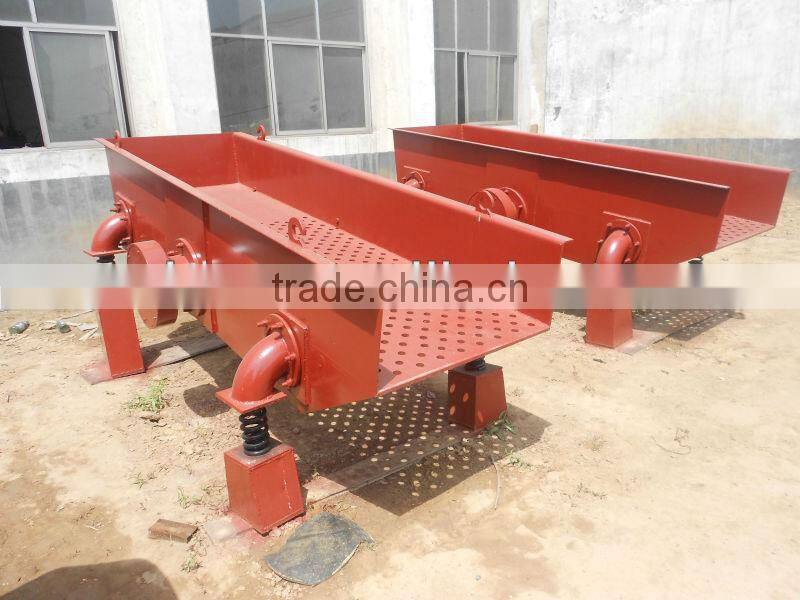

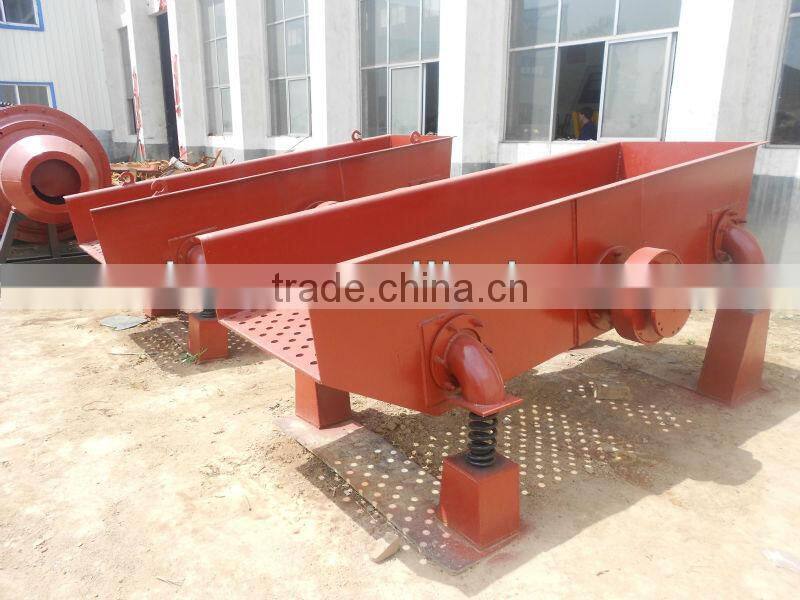

Picture of plate feeding machine for reference:
Working site of plate feeding machine
To get more information about our machines,contact to us(Huashengming heavy machinery factory). About more details pls view our website:
