Application OF Sand Shaker Table Gravel Shaker Table For Sale
Table Separator Gold widely applied on separating Gold, Tungsten, Tin, Manganese, Iron, Titanium, Zircon, Tantalum, Barium, Chrome, Lead, Zinc, Mercury, Copper, Aluminum ,and other rare metals and the noble metal ore, also applied on sorting coal.When dealing with the metal ore, the shaker effective recycling granularity scope is 2-0.037 millimeters.
Detailed description of Sand Shaker Table Gravel Shaker Table For Sale
Shaking table is the best gold gravity machine for alluvial gold mining, in some aspect it is the most important gravity ore dressing machine. It was designed to concentrate the fine-grinded or micro-grinded rare metal & precious material.
The shaking table separate the mineral granular based on the gravity differences between the different materials inside the pulp. When the pulp reached the table surface from the feeding channel, the granular in it will be effected by the gravity force, water flow force, the inertial force and friction force which comes from the reciprocating movement of the table surface, under the effect of these four forces, the granular inside the pulp will be classified and moved to the different direction: the high density one will go front and drop from the concentration end, the gangue will go to the tailing side, and the middles will be re-concentrated on the shaking table.
Usage of Shake table for Sand Shaker Table Gravel Shaker Table For Sale
The gravity alluvial gold machine--shaking table has been widely used in other rare metal dressing plant, such as tin ore, tungsten, tantalite, columbite and etc. And also some times it been used to concentrating manganese ore and iron ore.
The shaking table normally had been put at the end of ore dressing plant as the final concentration process.

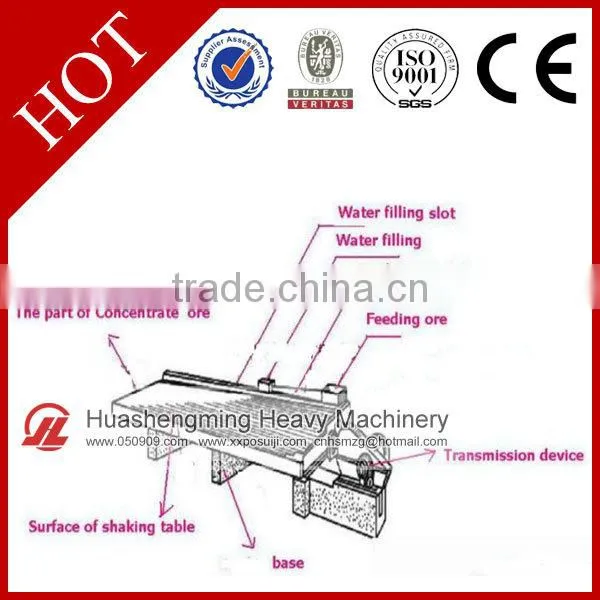

Working Principle of Sand Shaker Table Gravel Shaker Table For Sale
The Table Separator Gold separate the mineral granular based on the gravity differences between the different materials inside the pulp.When the pulp reached the table surface from the feeding channel, the granular in it will be effected by the gravity force, water flow force, the inertial force and friction force which comes from the reciprocating movement of the table surface, under the effect of these four forces, the granular inside the pulp will be classified and moved to the different direction: the high density one will go front and drop from the concentration end, the gangue will go to the tailing side, and the middles will be re-concentrated on the shaking table.
More photos of Sand Shaker Table Gravel Shaker Table For Sale
Packing :small model usually is used by one 20ft container,big model is used by 40ft container,
small parts are packed by wooden or according to your requirments.
Shipping:: from our factory to nearest port we used by truck , from our port to destination port we usd by ship.
Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
1. Select equipment model;
2. Sdeign and manufacture products according to clients' special requirement;
3. Train technical personnel for clients.
Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
1. Pre-check and accept products ahead of delivery;
2. help clients to draft solution.
After-sales service
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators on site;
4. Examine the equipment regularly;
5. Take initiative to eliminate the troubles rapidly at site;
6. Distribute the guarantee fittings door-to-door;
7. provide perfect service;
8. Provide technical exchanging;
9. Provide maintenance for big items
...
