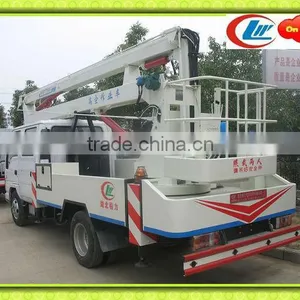

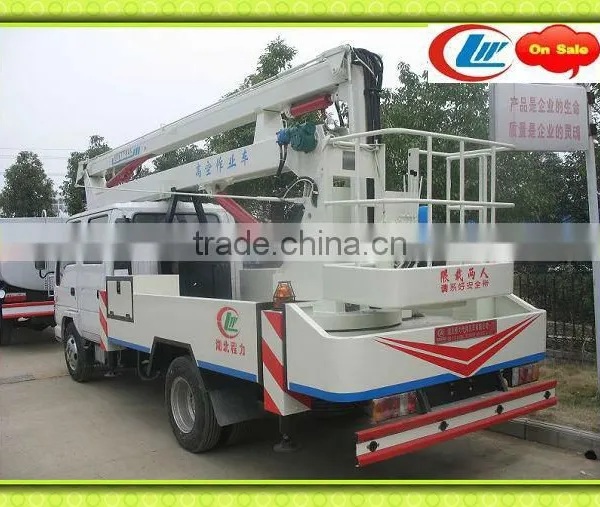

JMC Overhead Working Truck,hydraulic Aerial Cage Truck

US$ 20,999 - 59,999 MOQ: 1 Set

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 2

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 2

Fuel Type Diesel

Dimensions (L x W x H) (mm) 6500*1980*3000

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5051JGKZ

Specifications

JMC overhead working truck
Max operation height=16m,max operation radius>5.7m, working platform rating loading=200kg,
3C,ISO

JMC overhead working truck

Item	unit	parameter
Vehicle model		CLW5051JGKZ High-altitude Operation Truck
Chassis model		JX1050DSL2
Overall dimensions	mm	6500×1980×3000
Factual loading	kg	200
GVW	kg	Appro×15250
Rated loading capacity		185-
Body internal dimensions	mm	-
Wheel base		3360
F/R track base		1385 / 1425
Approach/departure angle	.	27/17.5
Exhaust/hp	ml/kw	2771/90
Max speed	km/h	100
Tire specification	7.00R15-10PRLT,7.00R16-10PRLT	Engine type	JX1050DSL2
Traction system	4×2	transmission	5-speed with over drive
Number of axles	2	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	3+2
Equipment	Max operation height=16m,max operation radius>5.7m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:11005701000mm,60°turning(left or right),4 H-shape legs. Clients can choose hydraulic parts made in China, with hook
Engine	JX1050DSL2 diesel engine
Production cycle	25-30 days
