4X2 Refuse Trucks,Garbage Truck,Compactor Truck,waste Compactor Trucks

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Drive Wheel:

4x2

Type:

Compactor

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Drive Wheel 4x2

Type Compactor

Transmission Type Manual

Emission Standard Euro 2

Volume 3001 - 6000L

Fuel Type Diesel

Engine Capacity 3707

Size Cubage

Gross Vehicle Weight 5280

Place of Origin Hubei, China

Brand Name CLW

Model Number Cubage

Certification ISO, BUREAU

Specifications

4X2 refuse trucks
type:Compactor refuse trucks
Drive type: 4*2
Capacity of tank: 3-4m3
Horsepower: 90hp

refuse trucks Detailed Product Description

the garbage compactor truck are Mainly used for carrying the elevation waste bin, also can used for the conneyance ash,sand ,detritus,soil,etc

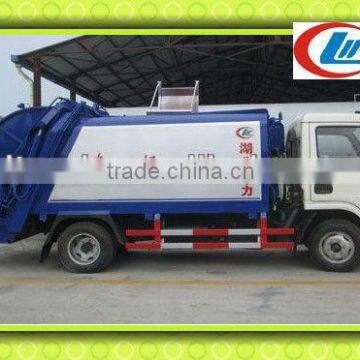

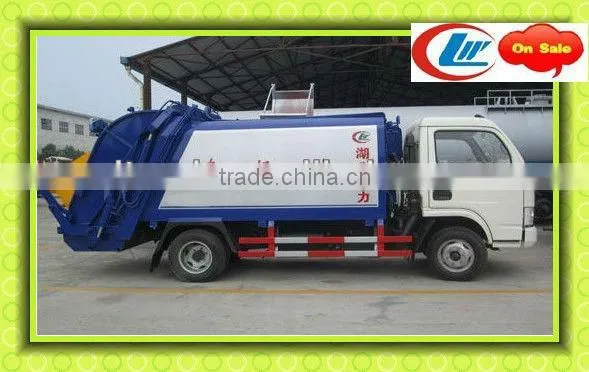

Product	Dongfeng XBW compression garbage truck
Chassis type	EQ1051T51DJ3A
Cubage(cbm)	3-4
Parameters	Overall dimension length/width/height (mm)	6320×2000×2445
	Total Mass(kg)	5280
	Kerb Mass(kg)	4150
	Approach angle/ Departure angle(mm)	23/13
	Front suspension/rear suspension(mm)	962/2058
	Fuel Type	diesel
	Max Speed	95
Engine	Type	CY4100ZLQ/4100QBZL
	Displacement/Power(kw)	3707 / 70,3298/70
	Manufacturer	Dongfeng Chaoyang diesel engine company
	Type	4-in-line
Chassis	Drive type	4×2
	Wheelbase(mm)	3100
	Tread(front/rear)	1750 / 1586
	Front axle	2.4 Ton
	Rear axle	3 Ton
	Steering gear	Recirculation ball steering
	Transmission	5 forward gear,1 reverse gear,manual mechanical type
	Clutch	Uniwafer, dry clutch, hydraulic remote control
	Braking system	Air brakingcam drum braking
	Cab	Non-long headed cabin
	Number of spring axle(front/rear)	7/8+5,8/10+7
	Tire Type	6.50-16 16PR
	Air-condition	Choose to fix
