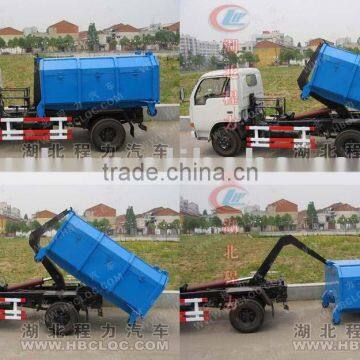

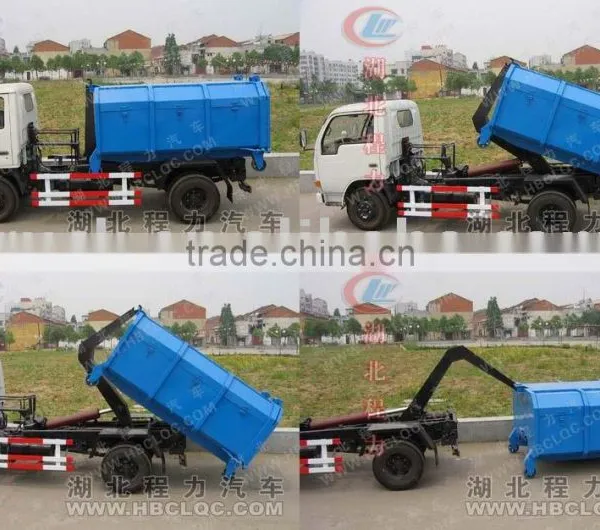

Dongfeng Xiaobawang Arm-Roll Garbage Truck

Chengli Special Automobile Co., Ltd.

US$ 10,555 - 10,666 MOQ: 1 Set

Key Specifications

Fuel Type:

Diesel

Place of Origin:

Hubei, China

Brand Name:

CLW

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or othters

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Place of Origin Hubei, China

Brand Name CLW

Model Number SNJ5050ZKX

Specifications

the arm-roll garbage truck is used widely in shool and and district to carry garbage .

Item		unit	parameter
Vehicle model			SNJ5050ZKX Arm-Roll Garbage Truck
Chassis model			EQ1061T14DJ2A
Overall dimensions		mm	5310×1890×2140
	Fact cubage	L	3000-4000
	GVW	kg	Appro×5425
	Rated loading capacity		Appro×2000
	Mass in working order		Appro×3295
	Body internal dimensions	mm	/
	Wheel base		3000
	F/R track base		1404/1458
	Approach/departure angle	°	19/15
Exhaust/hp		ml/kw	3298/70
Max speed		km/h	95
Tire specification		6.50-16,7.00-16	Engine type	4100QBZL
Traction system		4×2	transmission	5-speed with over drive
Number of axles		2	Electric system	24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab	2
Equipment		Equipped with hermetic dustbin, hydraulic system and operating system Equipped with one advanced doubleacting hydrocylinder,cycling time60s One vehicle can cooperate with several dustbins to improve the ability of cycle operation.
Engine		YunNei,diesel engine
Production cycle		15-16days
Warranty		12 month,from the date of supply
