Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Zhejiang, China | Brand Name | Suntech | |
| Model Number | ST-DFLM | Voltage | 3 Phase,380V(adjustable for all countries) | |
| Power(W) | KW | Dimension(L*W*H) | 2660*2120*2300MM | |
| Weight | 1000KG | Certification | CE | |
| Warranty | 13 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

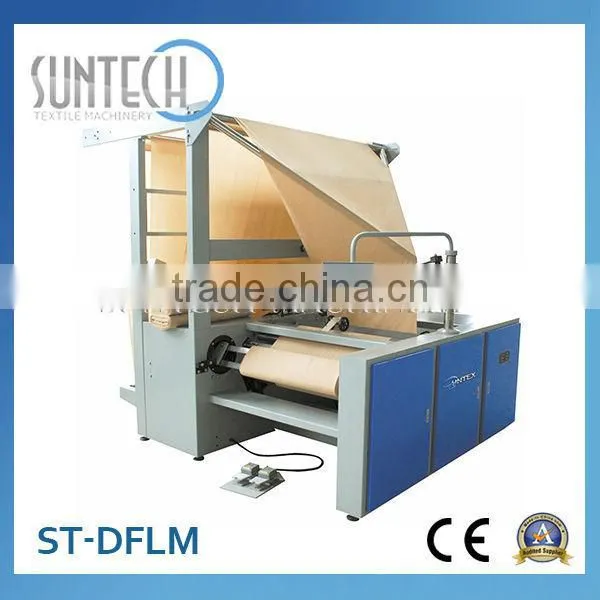

ST-DFLM lapping machine and polishing,textile folding machines,fabric double folding machine
ST-DFLM lapping machine and polishing,textile folding machines,fabric double folding machine is for doubling, lapping, measuring any type of fabrics with inlet from plait/ loose fabrics, rolls or A-fram batchers and with outlet winded on paper/wood board.
Technical Specs. of ST-DFLM lapping machine and polishing,textile folding machines,fabric double folding machine
| Speed | 0-70m/min |
| Fabric Width | 1.8-4.0 meters |
| Standard Roll Diameter | 700mm |
| Dimensions(LxWxH) | 2660x2120x2300(for model ST-DFALM-180 only) |
| Weight | 1000kgs(for model ST-DFLM-180 only |
| Electric Specs | 3phase-380V; 50HZ(can be adjusted to suit for different countries) |
| Remark | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Warranty Extension is Available at SUNTECH Than Other Suppliers.
Metallic Paint( used for Luxury Imported Cars):
*A Seriously Cool Effect-- Glimmer and Sparkle.
*More Resistant to Fading--Longevity
*More Hardness than Ordinary Paint--Protect From Damage or Scratches
Excellent Features of lapping machine and polishing,textile folding machines,fabric double folding machine
1)Doubling, rolling, measuring any type of fabrics with inlet from plait/ loose fabrics, rolls or batchers
and with outlet on slabs/board...
2)For proper folding, special systems for thin and sensitive fabrics.
3)Automatic alignment of selvedge on the doubling triangle with very sensitive and precise
photo-electric guide.
4)Reliable measuring with electronic calibrated counter meter system.
5)Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of the fabrics on
slab/cardboard...
6)Automatic printing on selvedge, checking table, printing of measuring - Optional
7)Foot switch is used to withdraw the finished fabrics and send the empty sword plate.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for ST-DFLM lapping machine and polishing,textile folding machines,fabric double folding machine
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving &
finishing Units, especially for Fabric Make-up Machines and Material Storage & Handling
Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales
office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now
has its Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala,
Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt,
South Africa, Syria, Mauritius, etc.
Q1:Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A4:Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas
Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.
