SUNTECH ST-DFLM Flat Lapping Textile Folding Machines
SUNTECH Flat Lapping Textile Folding Machines
It is for doubling, lapping, measuring any type of fabrics with inlet from plait/ loose fabrics,
rolls or A-fram batchers and with outlet winded on paper/wood board.
Technical Specs. of SUNTECH Flat Lapping Textile Folding Machines
| Speed | 0-70m/min |
| Fabric Width | 1.8-4.0 meters |
| Standard Roll Diameter | 700mm |
| Dimensions(LxWxH) | 2660x2120x2300(for model ST-DFALM-180 only) |
| Weight | 1000kgs(for model ST-DFLM-180 only |
| Electric Specs | 3phase-380V; 50HZ(can be adjusted to suit for different countries) |
| Remark | Variable working width is possible and can be tailor-made to your requirements of processing needs. |

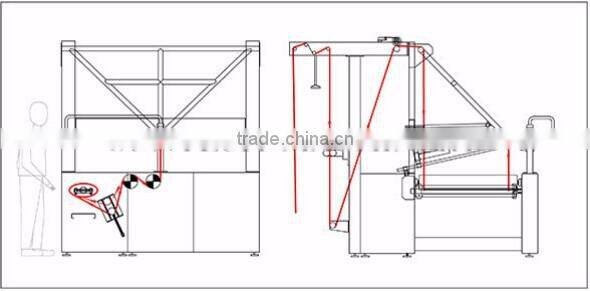

Images of SUNTECH Flat Lapping Textile Folding Machines
Excellent Features of SUNTECH Flat Lapping Textile Folding Machines
1) Doubling, rolling, measuring any type of fabrics with inlet from plait/ loose fabrics, rolls or
batchers and with outlet on slabs/board.
2) For proper folding, special systems for thin and sensitive fabrics.
3) Automatic alignment of selvedge on the doubling triangle with very sensitive and precise
photo-electric guide.
4) Reliable measuring with electronic calibrated counter meter system.
5) Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of the
fabrics on slab/cardboard.
6) Automatic printing on selvedge, checking table, printing of measuring - Optional
7) Foot switch is used to withdraw the finished fabrics and send the empty sword plate.
Q1: How to ensure its alignment of fabric selvedge?
A1: 1) The cloth guider at feeding position can make the fabric at center position;
2)The Edge Allignment Raster on the machine can detect the fabric edge and move left or right
for automatical selvedge alignment and its error less than 6 millimeter.
Q2: Is the machine has the function to control the fabric tension?
A2: The function of fabric tension control is available. The machine could be developed to suit
for high elasticity knitted fabric.
Q3: Is the machine have length counting? In Meter or Yard or Inch?
A3: Yes, Digital Counter Meter is installed on the machine which gives Meter counting or Yard counting. The desired length also could be pre-set on the digital counter meter. When arrives at pre-set length,
machine stops automatically.
Q4:What is the electrical specs? Can I use the machine directly in my country?
A4: It is 3 phase, 380v and 50hz; we could make it suitable for different countries.
Q5: Is the control panel in English?
A5: Yes, it is in English.
Q6: How long is the warranty? If any problems, how to solve it?
A6: 13 months from the date of shipment. If any quality problems within warranty, SUNTECH will
responsible for it, and send new replacements.
Q7: Will you provide free spare parts along with the machine?
A7: Yes, 5% to 10% free spare parts will be sent with the machine.
Packing Details: Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for SUNTECH Flat Lapping Textile Folding Machines
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving &
finishing Units, especially for Fabric Make-up Machines and Material Storage & Handling
Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales
office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now
has its Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala,
Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran, Egypt,
South Africa, Syria, Mauritius, etc.
1.Round the Clock Customer Service Centers;
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas;
3.Expert Team, Technical Support;
4.Abundant Spare Parts, Swift Storage Center.
If you have any other questions, please contact us!
