SUNTECH Tubular Fabric Slitting Cutting Machine
- 100 Unit / Units per Month
- SHANGHAI/NINGBO
- T/T D/P D/A Credit Card
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | SUNTECH |
Model Number: | ST-TFSM-01 | Voltage: | 3phase-380V; 50HZ(can be adjusted to suit for different countries) | Power(W): | KW |
Dimension(L*W*H): | As per different models | Weight: | kgs | Certification: | ISO,CE |
Warranty: | 13 months, 13 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

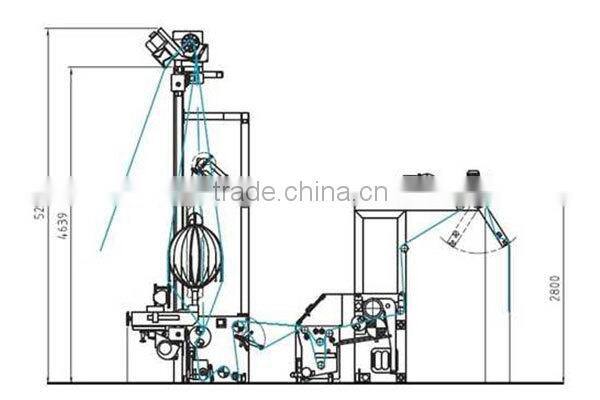

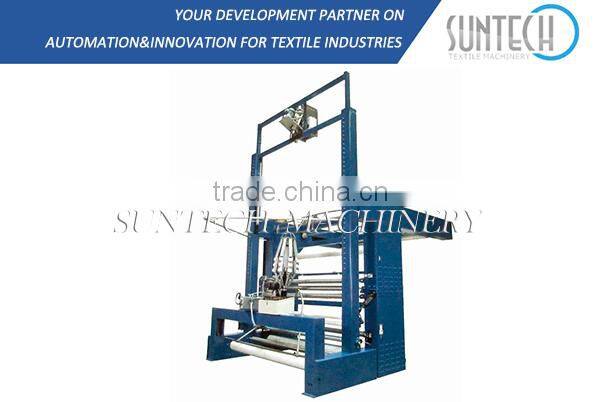

ST-TFSM-01 SUNTECH Tubular Fabric Slitting and Inspection Machine For Textile Industry
ST-TFSM-01 Tubular Fabric Slitting and Inspection Machine For Textile Industry
Mainly applicable after rope dyeing. It is used to slit & open roped fabric and has been specially designed for continuous high speed operation in automatic mode. The machine material could be A3 Steel or Stainless Steel, which could be suitable for both raw and wet fabrics.
Technical Specs. of Tubular Fabric Slitting and Inspection Machine For Textile Industry
Type | Fabric Slitting Machine for Tubular Knits |
Speed | 0-80m/min |
Fabric Width | 2.0-3.0 meters |
Max. Rope Diameter | Φ800mm |
Compressed Air Pressure | 5-7 bar |
Electric Specs | 3Phase-380V;50HZ(can be adjusted to suit for different countries) |
Remark | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Warranty Extension is Available at SUNTECH Than Other Suppliers.
Metallic Paint( used for Luxury Imported Cars):
* A Seriously Cool Effect-- Glimmer and Sparkle.
* More Resistant to Fading--Longevity
* More Hardness than Ordinary Paint--Protect From Damage or Scratches

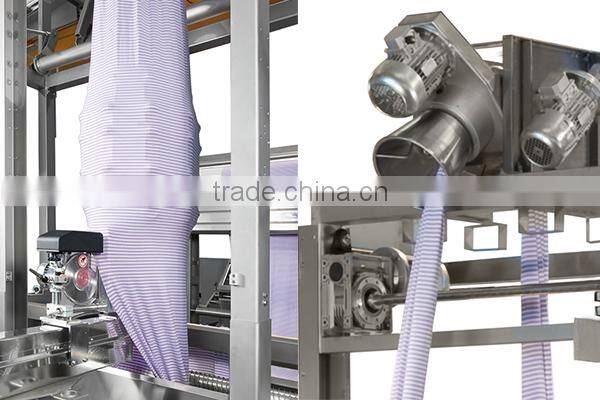

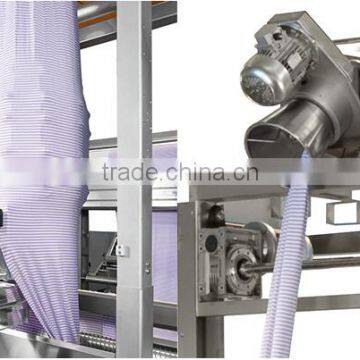

Excellent Features of Tubular Fabric Slitting and Inspection Machine For Textile Industry
1)Raisable frame and automatic detwister.
Automatic detwister fpr fabric rope. The signal from feeler is picked up by proximity switches. Fabric
rope engagement is by means of rotary opening rollers.
2)Slitting Basket
By means of a handwheel, the diameter of the round basket can be expanded from 320 to 800mm,
so as to facilitate the spreading of fabric and prevent permanent weft distorations, as may be
generated by the slitting process.
3)Needle Drop Sensor
Needle drop sensor can detect the needle drop on the fabric and adjust the basket to place the fabric
in proper slitting position.
4)Infrared Spreading-Centering Unit
It automatically open the fabric and then centre it, to ensure that the fabric is alignment in the centre
of the machine. It is used for both slitting and rope opening function.
5)Hydraulic Turntable-Option
Controlled by fulid power, 1800mm diameter, for fabric carriage rotation in heavy duty conditions. It
facilitate the operation of rope detwisting after washing or dyeing.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days for Tubular Fabric Slitting and Inspection Machine For Textile Industry
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving &
finishing Units, especially for Fabric Make-up Machines and Material Storage & Handling
Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales
office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now
has its Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala,
Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt,
South Africa, Syria, Mauritius, etc.
