ST-SFIM Metallic Paint Simple Fabric Inspecting and Plaiting Machinery
ST-SFIM Metallic Paint Simple Fabric Inspecting and Plaiting Machinery Cloth Inspection Machine With optional data collection and analysis system
(4-point system) to handle a wide range of fabrics.This machine can be supplied operate from

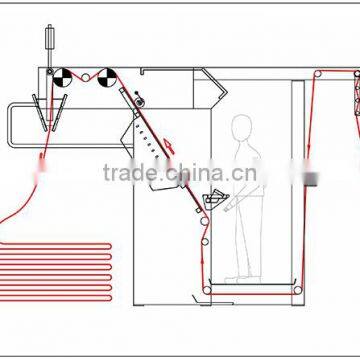

plait/loose fabrics to plait/loose fabrics, or with various other fabric inlet and outlet options.
1)Ergonomically designed.
2)Fast and easily handled, requiring for one operator only.
3)Improve fabric quality.
4)Synchronize production process.
5)Provide objective quality reporting.
6)Reduce administration.
Technical Specs. of Metallic Paint Simple Fabric Inspecting and Plaiting Machinery
| Speed | 0-110m/min |
| Fabric Width | 1.8-4.0 meters |
| Dimensions(L*W*H) | 2500*3500*2750mm(for model ST-SFIM-180 ONLY) |
| Weight | 1100kgs(for model ST-SFIM-180 ONLY) |
| Electric Specs | 3 phase-380V; 50HZ(can be adjusted to suit for different countries) |
Warranty Extension is Available at SUNTECH Than Other Suppliers.
Metallic Paint( used for Luxury Imported Cars):
* A Seriously Cool Effect-- Glimmer and Sparkle.
* More Resistant to Fading--Longevity
* More Hardness than Ordinary Paint--Protect From Damage or Scratches
Top & Bottom Lights: LED Lights
* Long Life--Ordinary Light Average 1000-20000 hours, LED light 50000 hour life
* Energy Efficiency--Save 80% than Ordinary Lights
* Ecologically Friendly--Green Solution
* Zero UV Emissions
* Operational in Extremely Cold or Hot Temperatures
Excellent Features of Metallic Paint Simple Fabric Inspecting and Plaiting Machinery
1)End of Fabric Roll Automatic Stop Sensor - for Next Roll Joining
This will allow for continuous fabric inspection, from one peice of roll to next.
2)Full Width Fabric Inspection - with 60 Degree Fixed Angle Inspection Screen
Fabric can be checked under the aid of different viewing and lighting options.
3)Accurate Fabric Length
Fabric roll length can be taken by industrial standard measuring systems with digital readouts to
give consistent fabric roll assessments.
4)Versatile Fabric Input and Output Options - Synchronize with Other Production Operations
Optional systems are available for different fabric input and output presentations, roll to roll,
continuous fabric input, etc.
5)Data Collection and Analysis System ( 4-point System) - Optional
100% fabric inspection with software for accurate fabric roll analysis and printout.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for Metallic Paint Simple Fabric Inspecting and Plaiting Machinery
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing
Units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in
Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its
Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia,
Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria,
Mauritius, etc.
Q1:Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A5:Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas
Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
If you have any other questions,please contact us !
