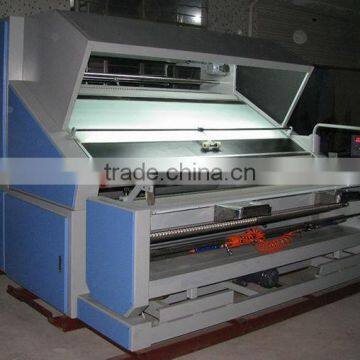

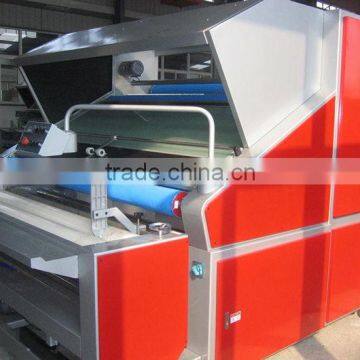

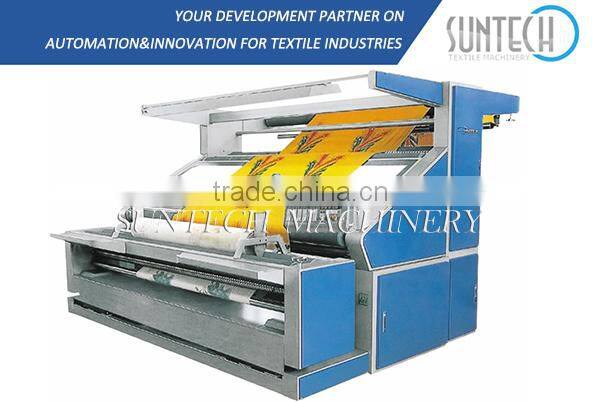

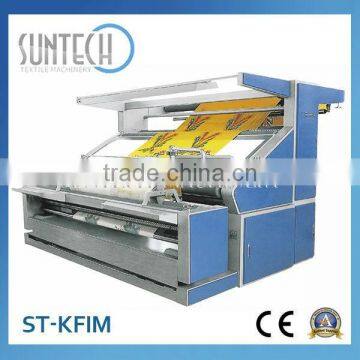

ST-KFIM-01 Tentionless Knitted Textile Testing and Rolling Machine
ST-KFIM Tentionless Knitted Textile Testing and Rolling Machine with optional data collection
and analysis system(4-point system) to handle a wide range of fabrics, from tension-sensitive
elastomeric and lycra fabrics to stable woven, technical and upholstery materials. This machine
can be supplied to operate from plait/loose fabrics to roll, or with various other farbic inlet or
outlet options.
*Ergonomically designed
*Fast and easily handle,requiring for one operator only
*Improve fabric quality
*Synchronize production process
*Provide objective quality reporting
*Reduce administration
Technical Specs. of Tentionless Knitted Cloth Testing and Rolling Machine
| Speed | 5-54m/min |
| Fabric Width | 1.8-4.0meters |
| Standard Roll Diameter | 500mm |
| Dimention(L*W*H) | 3300x3100x2000mm(for model ST-KFIM-260 only) |
| Weight: | 1550kgs(for model ST-KFIM-260 only) |
| Electric Specs | 3phase-380V; 50HZ(can be adjusted to suit for different countries) |
| Remark | Variable working width is possible and can be tailor- made to your requirements of processing needs. |
Warranty Extension is Available at SUNTECH Than Other Supplier.
Metallic Paint( used for Luxury Imported Cars):
* A Seriously Cool Effect-- Glimmer and Sparkle.
* More Resistant to Fading--Longevity
* More Hardness than Ordinary Paint--Protect From Damage or Scratches
Top & Bottom Lights: LED Lights
* Long Life--Ordinary Light Average 1000-20000 hours, LED light 50000 hour life
* Energy Efficiency--Save 80% than Ordinary Lights
* Ecologically Friendly--Green Solution
* Zero UV Emissions
* Operational in Extremely Cold or Hot Temperatures
Excellent Features of Tentionless Knitted Textile Testing and Rolling Machine

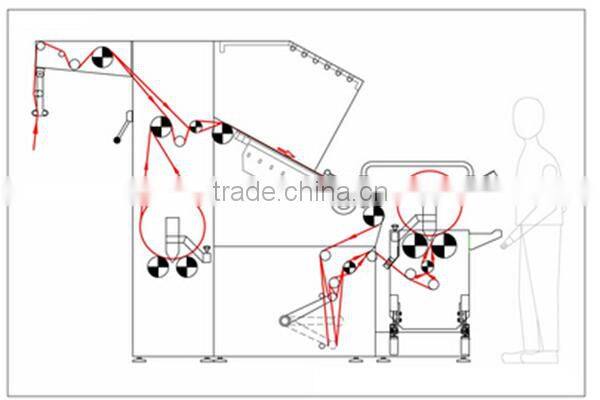

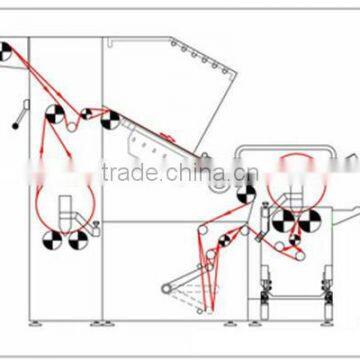

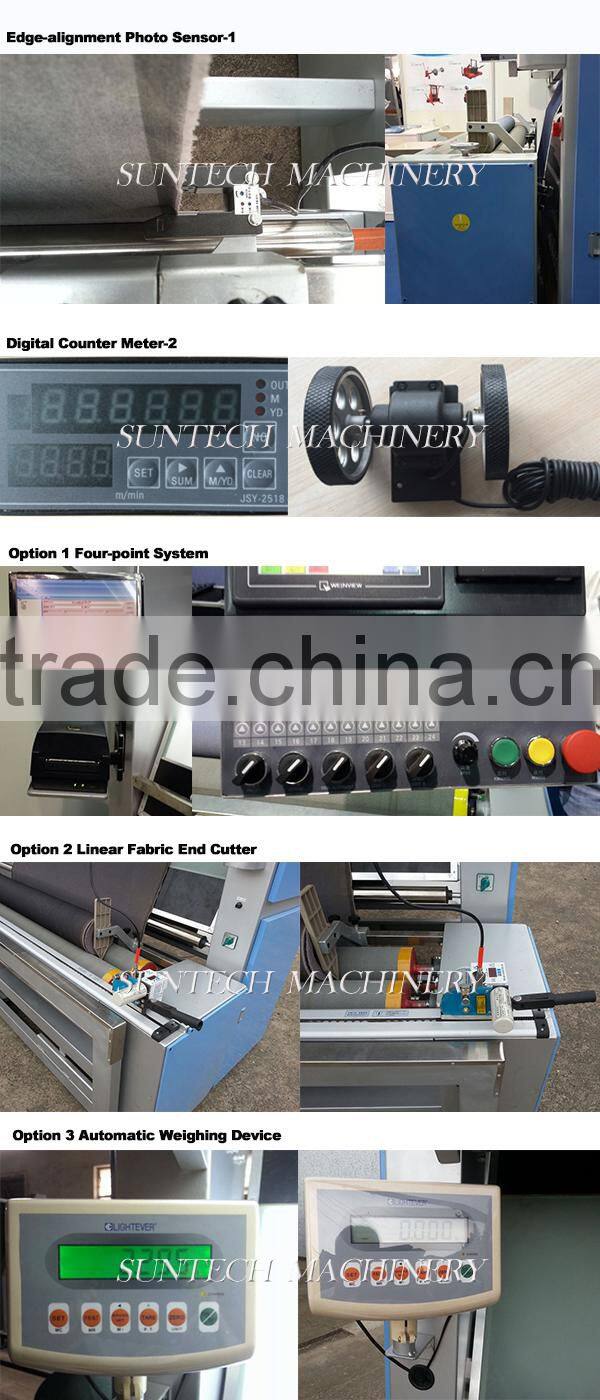

1)Low Tension Fabric Delivery and Speed Synchronization Unique mechanical and electric device
combination for making fabric feeding, delivering and re-winding synchronous.
2)Full Width Fabric Inspection - with 45 Degree Fixed Angle Inspection Screen Fabric can be
checked under the aid of different viewing and lighting options.
3)Accurate Fabric Length and Optional Weighing Machine. Fabric roll length and weight can be
taken by industrial standard measuring systems with digital readouts to give consistent fabric roll
assessments.
4)Stretch Fabric Control - with Scroll Roller System and De-curling System. Fabric controlled from
input to electro/ pneumatic edge guilding system for perfect roll generation.
5)Consistent Roll Output - with Twin Rewinding Roller and Roll Hardness Adjustment Processed
rolls are rewound with the minimum amount of tension and are consistent from roll to roll.
6)Versatile Fabric Input and Output Options - Synchronize with Other Production Operations
Optional systems are available for different fabric input and output presentations, roll to roll,
continuous fabric input and plait input and output.
7)Pneumatic Roll Ejection Device - Optional Heavy produced rolls can be pushed by the pneumatic
cylinder arms so as to save labour power.
8)Data Collection and Analysis System ( 4-point System) - Optional 100% fabric inspection with
software for accurate fabric roll analysis and printout.
9)Automatic Linear Cut ( Fabric Roll End Cutter) - Optional Full width cutting at the end of
processed roll, fast and accurate.
Packing Details:Steel Pallet or Wooden Box Packing
Delivery Details: 15-20 days delivery for Tentionless Knitted Textile Testing and Rolling Machine

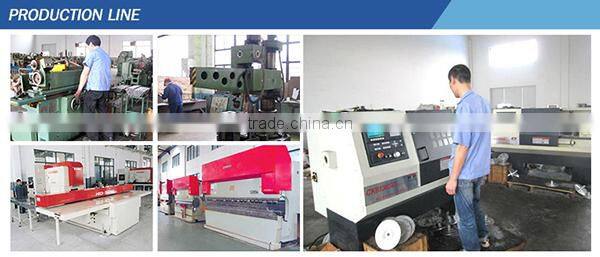

SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing
Units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in
Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its
Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia,
Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria,
Mauritius, etc.
Q1:Are you a trading company or manufacture?
A1: SUNTECH is a professional manufacturer with experience over 40 years. Now we have brand office in
HK and International sales office in Hangzhou(Hangzhou Strength Machinery Co.,Ltd). Your order will be
controlled from very beginning to the last.
Q2: What is your delivery time?
A2: Normally 15-20 days upon order confirmation.
Q3: What is your packing pattern?
A3: For FCL, steel pallet + stretch film covering
For LCL, steel frame + wooden box packing
Q4: How about your service?
A4:Round the clock customer service center- 24 hours hot line--13706812486.
Also, engineers available to service machinery overseas
Q5: How about your product?
A5: SUNTECH has the standard production and complete quality control system to ensure high quality
products. Our products get ISO9001:2008, Euro CE.
1.Round the Clock Customer Service Centers
2.Skilled Maintenance Team, Engineers Available to Service Machinery Overseas.
3.Expert Team, Technical Support
4.Abundant Spare Parts, Swift Storage Center
If you have any other questions,please contact us !
