Home > Sporting Goods & Recreation > Golf Cart > High Pressure Cleaning Truck, Electric, EG6032XA1

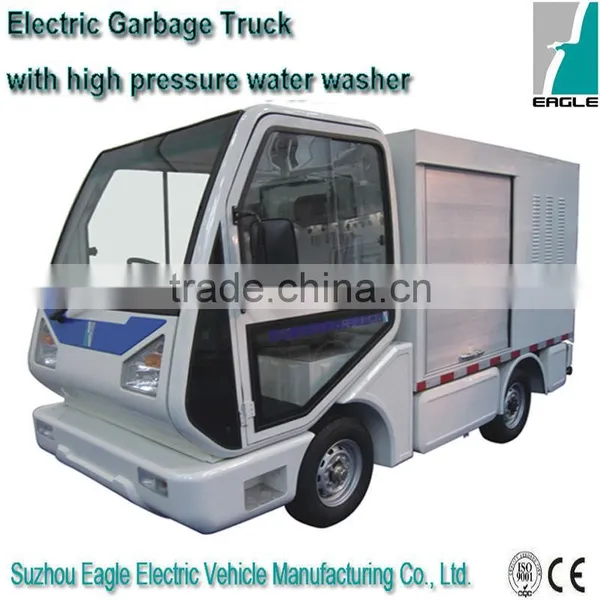

High Pressure Cleaning Truck, Electric, EG6032XA1

High Pressure Cleaning Truck, Electric, EG6032XA1 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Seats 1 - 2
Fuel Type Electric
Battery Voltage Other
Certification CE
High pressure cleaning truck, electric, EG6032XA1
Description:

EG6032XA1, high pressure cleaning truck, with high pressure pump engine, with water tank, for cleaning street, pole, etc.





Product Description



Key Components
ItemDescription
ControllerCurtis controller, 400A, imported from USA directly
Motor

Rated power 5KW (6.8HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand

BatteryTrojan battery, 12pcs T105+, imported from USA directly
Charger

72V transfered smart charger, output 110V-240V,50-60HZ,out 72V/25A



Performance
ItemDescription
Passenger Capacity2

Range (loaded) (km)*

up to 60
Max.speed (km/h)up to 50
Min.turning radius (m)5.3
Max.climbing ability(loaded)up to 20%
Max. movement after brake at speed of 20km/hN/A
Max.loading weight (kgs)1000
Charging time (hour)8-10
Battery lifespan (cycles)750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

  2)  Range will vary depending on temperature, grade, payload and driving style.



Dimensions
ItemDescription
Overall dimensions (mm)4580x1500x2150 (LxWxH)
Rear cargo bed dimensions (mm)2600x1500x1400 (LxWxH)
Min.ground clearance (mm)150
Wheelbase (mm)2370
Front wheel tread (mm)1220
Rear wheel tread (mm)1220



Body and Frame
ItemDescription
Frame & ChassisWelded steel framework with sand blasting and painting
CabinAluminum frame with FRP cover sheet and glass window
Front windshieldLaminated glass with wiper
SeatReborn sponge with artificial leather, highback
FloorSkidproof leather
Rear boxAluminum material, with side rolling door,with high pressure water pump inside and water tank
High pressure water pumpWorking pressure of 200kgs, speed of 15L/m, diesel
Water tankPP,1.2m3, 10mm thickness
Battery sliding systemSteel frame with sliding wheel
Beverage holders1 cups holders
Side rear view mirror2pcs, manual adjustable



Electric System
Item   Description
Lights

12V, headlight (H/L beam), front turning light,

Rear taillight (brake light and rear turing light)

HornElectric horn, 12V
Reverse buzzerElectric, 12V
Combination switch
DC/DC converter

72V/12V

Audio systemRadio with MP3 receiver, with two waterproof speaker
Digital Meterwith Current meter, voltometer, speedometer and various indicators



Steering & suspersion
ItemDescription
Steering System

Recirculating ball-type steering gear

Brake System4-wheel hydraulic drum brake with hand park brake, with vacuum booster
AcceleratorResistance type, stepless speed change
Front suspensionnon-independent suspension, cylinder hydraulic vibration absorber and leaf spring
Rear suspensionintegrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission systemClutch, 4F+1R gear box, transmission shaft
Wheel & Tyre175R13C tubeless tire, 4J*13 steel rim





Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

ItemOption description
1Rear steel bumper
2Inner rear view mirror
3Battery watering pipe
4Water pump (handle)
53-point seatbelt
6Diesel heater for defrosting
7Electric power system











Packaging & Shipping



Container loading qtySemi-knock-downRefer Picture
20'ft GP1High pressure cleaning truck, electric, EG6032XA1
40'ft GP2
40'HQ2





Our Services
  •  Customization is available
  • 13 months warranty from shipping date
  • FOC spare parts provided
