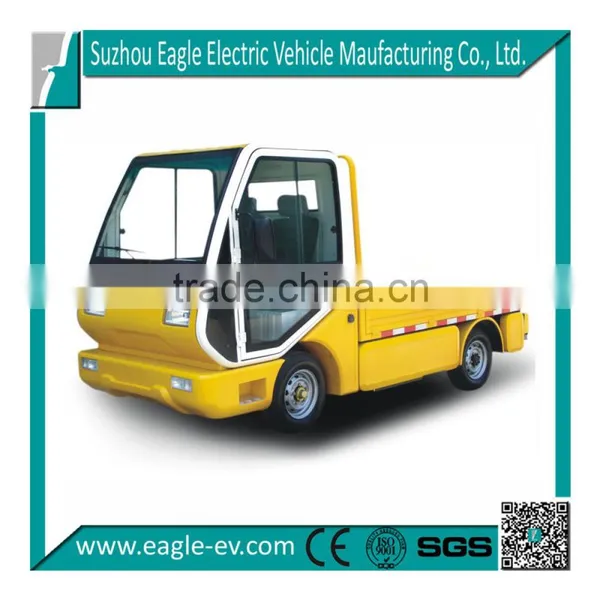

Help CenterElectric Mini Truck for Sale, 1000kgs Loading Weight, Closed Cab, EG6022H
Related Products
-
Electric Truck Vehicle, 1500kgs Loading Weight, Closed Cab, EG6032HNegotiableMOQ: 1 Unit -
2015 New Electric Mini Bus With Rear Cargo BoxNegotiableMOQ: 1 Unit
-
Utility Truck, Electric, 2000kgs Loading Weight, Closed Cab, EG6042HNegotiableMOQ: 1 Unit
-
Electric Scissor Lifter Vehicle, 6m Lifting Height ,EG6060J, CE ApprovedNegotiableMOQ: 1 Unit
-
4 Seater Electric Golf Car With Revised SeatsNegotiableMOQ: 1 Unit
| Item | Description |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated power 5KW (6.8HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand |
| Battery | Trojan battery, 12pcs T105+, imported from USA directly |
| Charger | 72V transfered smart charger, output 110V-240V,50-60HZ,out 72V/25A |
| Item | Description |
| Passenger Capacity | 2 |
Range (loaded) (km)* | up to 75 |
| Max.speed (km/h) | up to 55 |
| Min.turning radius (m) | 5.3 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | N/A |
| Max.loading weight (kgs) | 1000 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 4200x1500x2150 (LxWxH) |
| Rear cargo bed dimensions (mm) | 2600x1500x319 (LxWxH) |
| Min.ground clearance (mm) | 150 |
| Wheelbase (mm) | 2370 |
| Front wheel tread (mm) | 1220 |
| Rear wheel tread (mm) | 1220 |
| Item | Description |
| Frame & Chassis | Welded steel framework with sand blasting and painting |
| Cabin | Aluminum frame with FRP cover sheet and glass window |
| Front windshield | Laminated glass with wiper |
| Seat | Reborn sponge with artificial leather, highback |
| Floor | Skidproof leather |
| Rear cargo bed | Steel side fender, rear foldable fender |
| Battery sliding system | Steel frame with sliding wheel |
| Beverage holders | 1 cups holders |
| Side rear view mirror | 2pcs, manual adjustable |
| Item | Description |
| Lights | 12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 72V/12V |
| Audio system | Radio with MP3 receiver, with two waterproof speaker |
| Digital Meter | with Current meter, voltometer, speedometer and various indicators |
| Item | Description |
| Steering System | Recirculating ball-type steering gear |
| Brake System | 4-wheel hydraulic drum brake with hand park brake, with vacuum booster |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | non-independent suspension, cylinder hydraulic vibration absorber and leaf spring |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Wheel & Tyre | 175R13C tubeless tire, 4J*13 steel rim |
To increase the sales value of our vehicles, we also provide many optional accessories.
| Item | Option description |
| 1 | Rear steel bumper |
| 2 | Inner rear view mirror |
| 3 | Battery watering pipe |
| 4 | Water pump (handle) |
| 5 | 3-point seatbelt |
| 6 | Diesel heater for defrosting |
| 7 | Electric power system |
| Container loading qty | Semi-knock-down | Refer Picture |
| 20'ft GP | 1 | |
| 40'ft GP | 2 | |
| 40'HQ | 2 |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
