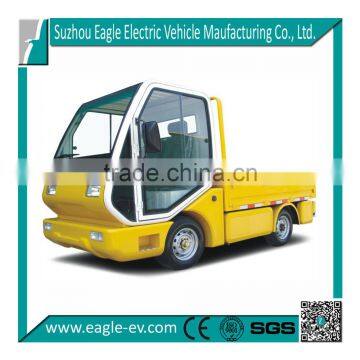

Electric Truck Vehicle, 1500kgs Loading Weight, Closed Cab, EG6032H

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

Other

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage Other

Certification CE

electric truck vehicle , 1500kgs loading weight, closed cab, EG6032H

Description:

EG6032H, electric utility trucks, light duty, 1500kgs loading capacity, spacy cabin in aluminum frame, FRP top and glass windows

Product Description

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated power 5KW (6.8HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand
Battery	Trojan battery, 12pcs T105+, imported from USA directly
Charger	72V transfered smart charger, output 110V-240V,50-60HZ,out 72V/25A

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 75
Max.speed (km/h)	up to 55
Min.turning radius (m)	5.3
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	N/A
Max.loading weight (kgs)	1000
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Cabin	Aluminum frame with FRP cover sheet and glass window
Front windshield	Laminated glass with wiper
Seat	Reborn sponge with artificial leather, highback
Floor	Skidproof leather
Rear cargo bed	Steel side fender, rear foldable fender
Battery sliding system	Steel frame with sliding wheel
Beverage holders	1 cups holders
Side rear view mirror	2pcs, manual adjustable

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch
DC/DC converter	72V/12V
Audio system	Radio with MP3 receiver, with two waterproof speaker
Digital Meter	with Current meter, voltometer, speedometer and various indicators

Steering & suspersion

Item	Description
Steering System	Recirculating ball-type steering gear
Brake System	4-wheel hydraulic drum brake with hand park brake, with vacuum booster
Accelerator	Resistance type, stepless speed change
Front suspension	non-independent suspension, cylinder hydraulic vibration absorber and leaf spring
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Wheel & Tyre	175R13C tubeless tire, 4J*13 steel rim

Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description
1	Rear steel bumper
2	Inner rear view mirror
3	Battery watering pipe
4	Water pump (handle)
5	3-point seatbelt
6	Diesel heater for defrosting
7	Electric power system
