2 Seater Electric Buggy With a Rear Cargo Box

Name: 2 Seater Electric Buggy With a Rear Cargo Box
Brand: EAGLE
SKU: 140812034
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Power:

Electric

Place of Origin:

Jiangsu, China

Brand Name:

EAGLE

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Power Electric

Place of Origin Jiangsu, China

Brand Name EAGLE

Model Number EG6043KDX

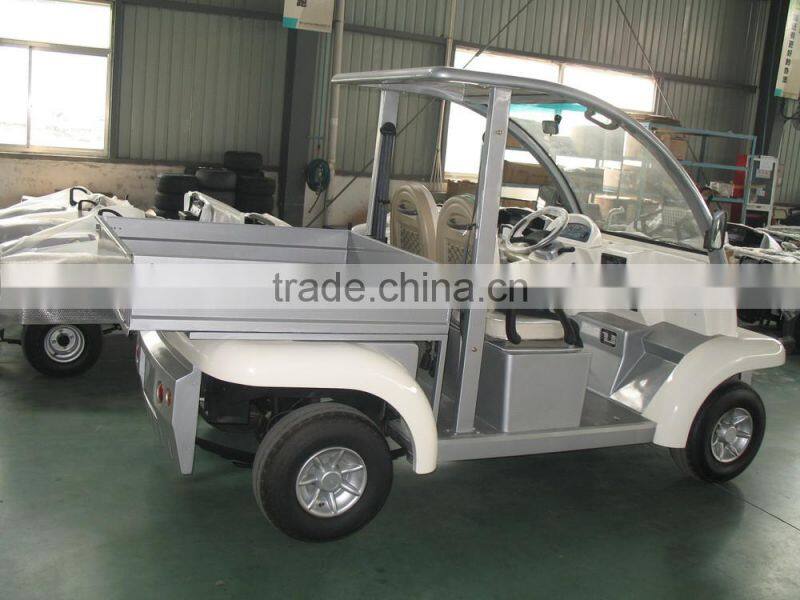

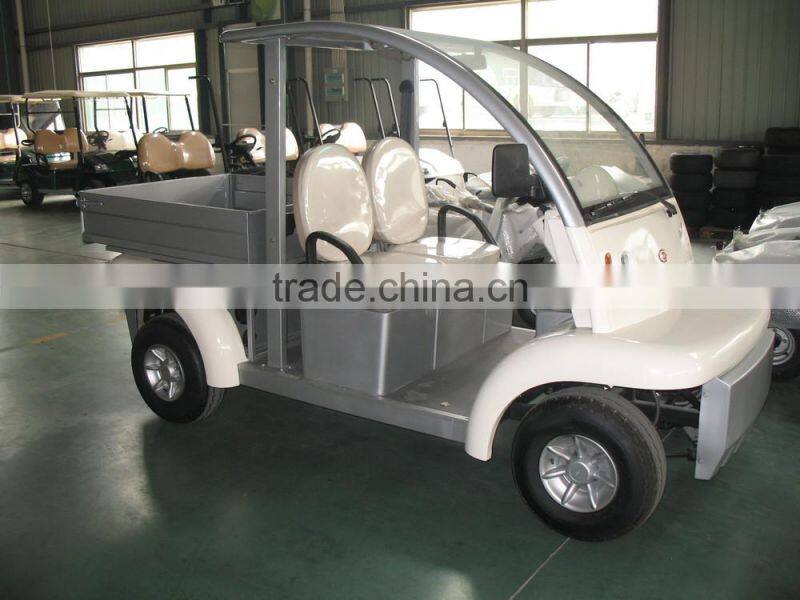

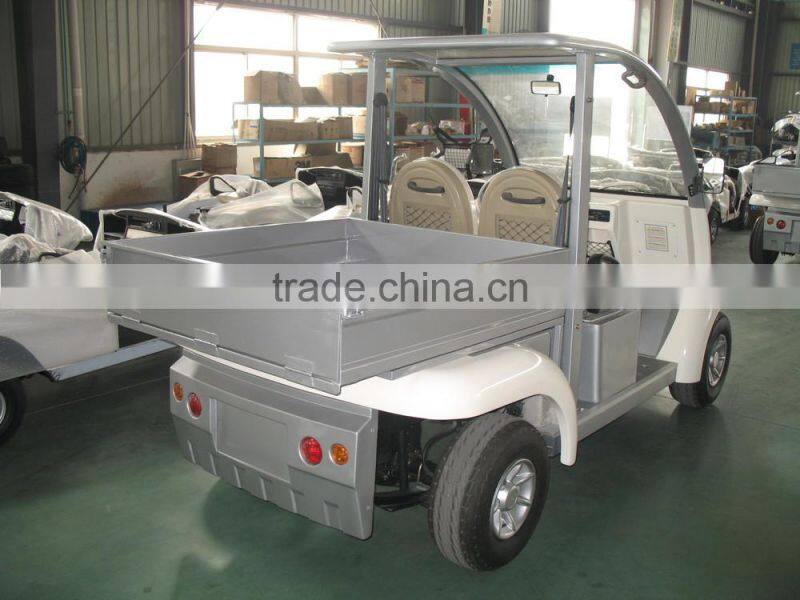

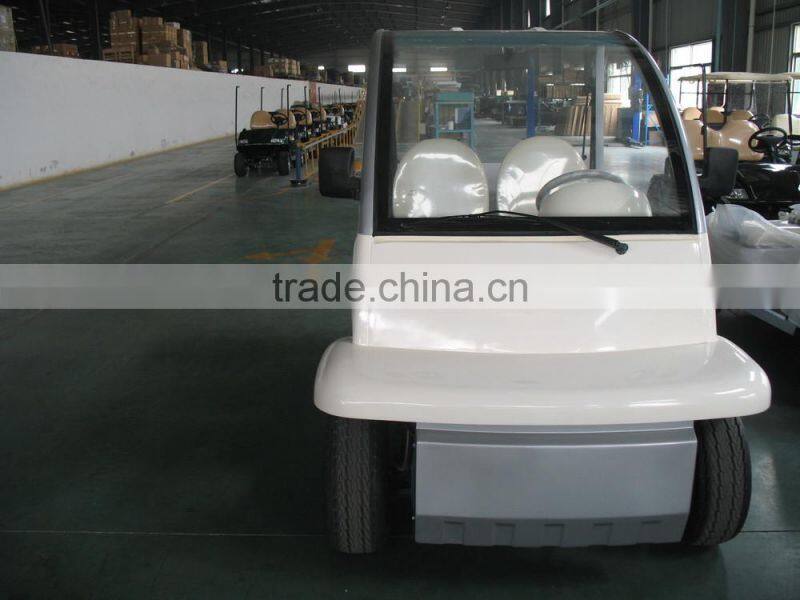

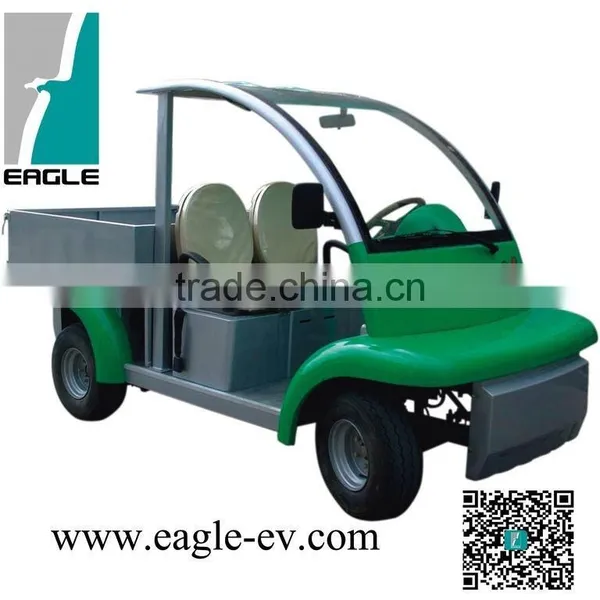

2 seater electric buggy with a rear cargo box

Detailed description as below:

Model	EG6043KDX	EG6043KDX01	EG6043KDX02	EG6043KDX06
System	48V/4KW Series	48V/4KW Sepex	48V/5KW Sepex	48V/5KW AC System
Key Components
Battery	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)
Motor	3.8KW Chinese motor	3.8KW Chinese motor	DV9 ADC motor	5KW Chinese Motor
Controller	Curtis 1204 (275A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes)	Zapi ACE2(400A@2minute)
Performance
Passenger capacity	2	2	2	2
Range (loaded) based on flat road at a speed of 20km/h (km)^*	>70	>70	>70	>90
Max. speed @12.76:1 gear ratio	32	32	32	32
Max. speed @10.26:1 gear ratio	/	40	32	--
Minimum turning radius (m)	4	4	4	4
Max. climbing ability (loaded) @ 12.76:1 gear ratio	20%	20%	25%	20%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	15%	15%	18%	--
Max. movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m
Max. loading weight	480kgs	480kgs	480kgs	480kgs
Net weight	N/A	N/A	N/A	N/A
Dimensions
Overall dimensions (mm)	3050x1400x1800
Rear cargo bed dimension(mm)	1200x1100x250
Min. ground clearance (mm)	140
Wheelbase (mm)	2040
Front wheel tread (mm)	1143
Rear wheel tread (mm)	1143
