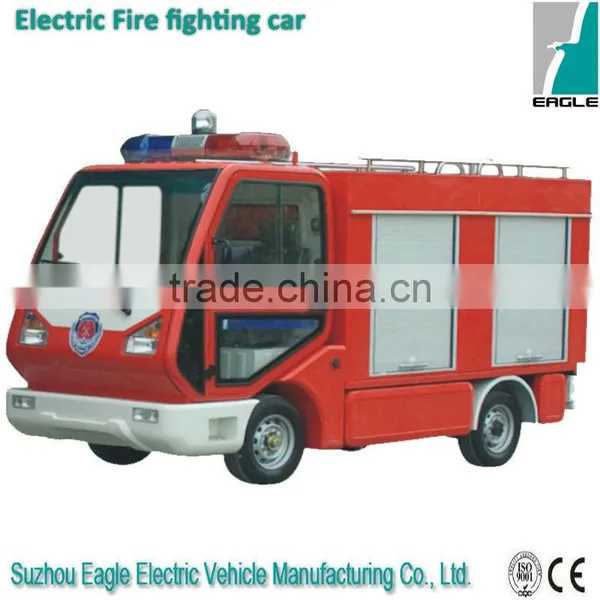

Electric Mini Fire Trucks, With Water Tank, Small for Narrow Place, EG6020F

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

Other

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage Other

Certification CE

electric mini fire trucks , with water tank, small for narrow place, EG6020F

Description:

EG6020F, electric fire engine, with 0.6 m3 water tank, necessary fire fighting tools, engine water pump

Product Description

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated power 5KW (6.8HP)DC motor,7.5KW (10.2HP)AC motor Chinese brand
Battery	Trojan battery, 12pcs T105+, imported from USA directly
Charger	72V transfered smart charger, output 110V-240V,50-60HZ,out 72V/25A

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 75
Max.speed (km/h)	up to 50
Min.turning radius (m)	5.2
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	N/A
Max.loading weight (kgs)	1000
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Cabin	Aluminum frame with FRP cover sheet and glass window
Front windshield	Laminated glass with wiper
Seat	Reborn sponge with artificial leather, highback
Floor	Skidproof leather
Rear box	Aluminum material, with side rolling door, with PVC water tank (0.6T)
Battery sliding system	Steel frame with sliding wheel
Beverage holders	1 cups holders
Side rear view mirror	2pcs, manual adjustable

Electric System

Item	Description
Lights	12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	Switch for headlight, turning light, wiper and horn
DC/DC converter	72V/12V
Warning light on the top	with siren
Audio system	Radio with MP3 receiver, with two waterproof speaker
Digital Meter	with Current meter, voltometer, speedometer and various indicators

Steering & suspersion

Item	Description
Steering System	Recirculating ball-type steering gear
Brake System	4-wheel hydraulic drum brake with hand park brake, with vacuum booster
Accelerator	Resistance type, stepless speed change
Front suspension	non-independent suspension, cylinder hydraulic vibration absorber and leaf spring
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission system	Clutch, 4F+1R gear box, transmission shaft
Wheel & Tyre	175R13C tubeless tire, 4J*13 steel rim

Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Rear steel bumper	20	Crowbar
2	Inner rear view mirror	21	Flashlights
3	Battery watering pipe	22	Life line
4	Water pump (handle)	23	Air mask
5	3-point seatbelt	24	Firefighter clothing
6	Diesel heater for defrosting	25	Helmet with lighting
7	Electric power system	26	Fire gloves
8	Fire fighting kits	27	Fire boots
9	Fire foam	28	Safety Belt
10	Fire hose bracket	29	Fire hatchet
11	65 fire hose	30	Fire blanket
12	Stream fire water gun	31	Taper barrel
13	Spray fire water gun	32	Separate belt
14	65 gated Wye Valve	33	Danger caution plate
15	Fire hydrant wrench	34	Breathing apparatus
16	Hose ramp	35	Powder fire extinguisher
17	Fire pliers	36	Fire Axe
18	Hammer	37	Semicircular fire barrel
19	Fire spade	38
