Home > Transportation > Trailer > Truck Trailer > Special Electric Sightseeing Golf Carts for Disabled, EG2068T

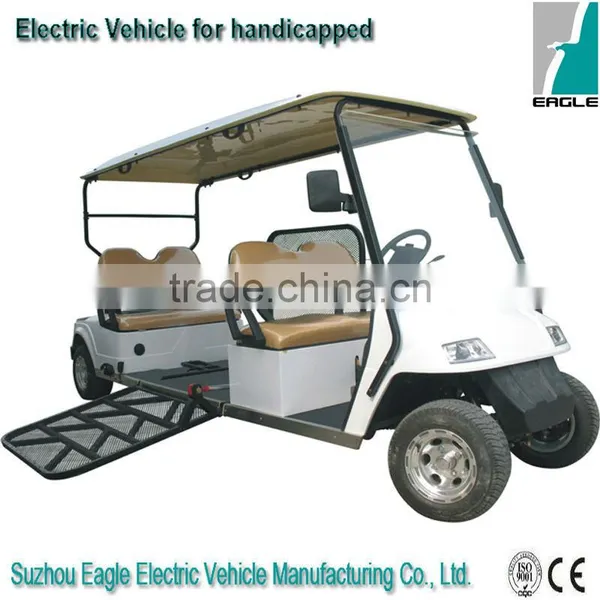

Special Electric Sightseeing Golf Carts for Disabled, EG2068T
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG2068T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Handicap Vehicle for Disabled People With Wheelchair, CE ApprovedNegotiableMOQ: 1 Unit -
Electric Catering Food Mini Cars, CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Dining Car for Food Delivery, CE ApprovedNegotiableMOQ: 1 Unit
-
Battery Powered Electric Hearse , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Airport People Movers EG2048TNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG2068T
Special electric sightseeing golf carts for disabled, EG2068T
Product Description
| Model | EG2068T | EG2068T02 | EG2068T03 |
| System | 48V/5.3KW Sepex | 48V/5KW AC System | 48V/5KW Sepex |
| Key Components | |||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 5.3KW Chinese motor | 5KW Chinese Motor | 5KW ADC DV9 motor |
| Controller | Curtis 1268 (400A@2minutes) | Zapi ACE2(400A@2minutes) | Curtis 1268 (400A@2minutes) |
| Performance | |||
| Passenger capacity | 8 | 8 | 8 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >60 | >75 | >60 |
| Max. speed @12.49:1 gear ratio | 25 | 32 | 25 |
| Minimum turning radius (m) | 6 | 6 | 6 |
| Max. climbing ability (loaded) @ 12.49:1 gear ratio | 15% | 15% | 15% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 640kgs | 640kgs | 640kgs |
| Net weight | 730kgs | 738kgs | 731kgs |
| Dimensions | |||
| Overall dimensions (mm) | 406x1180x1890 | ||
| Min. ground clearance (mm) | 120 | ||
| Wheelbase (mm) | 3400 | ||
| Front wheel tread (mm) | 875 | ||
| Rear wheel tread (mm) | 985 | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||
| Body and Frame | |||
| Frame | Welded steel framework with phosphate+electro-coating treatment | ||
| Body | PP plastic front body + PP plastic rear body | ||
| Roof | Fibreglass | ||
| Windshield | one-piece Organic glass | ||
| Windshield, hinged | |||
| Laminated windshield | |||
| Laminated windshield with wiper | |||
| Stainless steel package | including front upright, rear upright, caddie handle | ||
| Aluminum roof support | including front upright, rear upright, caddie handle | ||
| 2point seat belt | |||
| Large Seats: | |||
| 1) backrest and cushion | Rebond seat + artificial leather | ||
| 2) armrest | Formed | ||
| 3) plastic seat bottom | Last row of seat | ||
| Formed seat&backrest vinyl | exclude the first two rows of seat cushion | ||
| Backrest cover in wood finish | |||
| Floor | rubber | ||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | ||
| Dashboard in wood finish | |||
| Steering wheel in wood finish | |||
| Beverage holders | 4 cups drink holders | ||
| Glove box | |||
| Glove box door (include two locks) in black plastic | 2 doors per set | ||
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | ||
| Side trim | Aluminium | ||
| Score card holder | on steering wheel | ||
| Towing bracket | on front of golf car | ||
| Inner rear view mirror | One piece per cart in the middle of the windshield | ||
| Side rear view mirror | Two pieces per cart | ||
| Battery watering system,48V system | without water supply tool | ||
| Battery watering system,36V system | without water supply tool | ||
| Manual Pump | water supply tool (other water supply tools are available) | ||
| Overshadowing Curtain | |||
| Enclosure | |||
| Electric system | |||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | ||
| Reversing alarm | |||
| Meter(only available for 48V system) | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | ||
| Police Light | |||
| 12V accessory plug | to be mounted on the dashboard | ||
| Hour meter | |||
| Cooler | Under the rear seat | ||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | ||
| Steering and Suspension | |||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | ||
| Right hand drive system | |||
| Brake system | 4-wheel hydraulic brake + hand brake | ||
| Accelerator | Stepless speed change | ||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||
| Rear axle | Integrated, Gear ratio 12.49:1 | ||
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR | ||
| 6J-10 steel wheel with cap & 205/50-10 4PR | |||
Color
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All electric golf passenger mover sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
