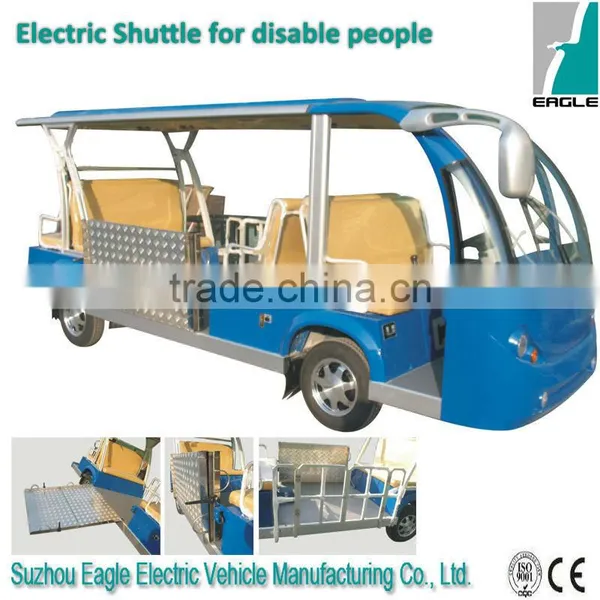

Electric Handicap Vehicle for Disabled People With Wheelchair, CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG6158T for handicapped
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Catering Food Mini Cars, CE ApprovedNegotiableMOQ: 1 Unit -
Electric Dining Car for Food Delivery, CE ApprovedNegotiableMOQ: 1 Unit
-
Battery Powered Electric Hearse , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Airport People Movers EG2048TNegotiableMOQ: 1 Unit
-
CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB1NegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6158T for handicapped
Electric handicap vehicle for disabled people with wheelchair, CE approved
Product Description
| Model | EG6158T | ||
| System | 72V/5KW Series | ||
| Key Components | |||
| Battery | 12xT105(185Ah@5hr rate) | ||
| Motor | 5KW Chinese motor for 60minutes | ||
| Controller | Curtis 1209 (400A@2minutes) | ||
| Performance | |||
| Max.passenger capacity | 8 | ||
| Range (loaded) based on flat road at a speed of 20km/h(km) | >80 | ||
| Max. speed | 45 | ||
| Minimum turning radius (m) | 5.35 | ||
| Max. climbing ability (loaded) | 25% | ||
| Max. movement after brake | ≤4m | ||
| Max. loading weight | 1120kgs | ||
| Net weight | 1270kgs | ||
| Dimensions | |||
| Overall dimensions (mm) | 5000x1490x2050 | ||
| Min. ground clearance (mm) | 135 | ||
| Wheelbase (mm) | 2710 | ||
| Front wheel tread (mm) | 1222 | ||
| Rear wheel tread (mm) | 1185 | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||
| Body and Frame | |||
| Ramp | Manual | ||
| Frame | Welded steel framework with sand blasting+paint treatment | ||
| Body | Fibreglass | ||
| Roof | Fibreglass+aluminum frame, with roof handle | ||
| Windshield | Laminated glass | ||
| 2point seat belt | 10pcs | ||
| Large Seats: | |||
| 1) backrest and cushion | Sponge + artificial leather | ||
| 2) armrest | Aluminum | ||
| Floor | Bamboo + artificial leather | ||
| Cup drinker holder | 1pc | ||
| Inner rear view mirror | One piece per cart in the middle of the windshield | ||
| Side rear view mirror | Two pieces per cart | ||
| Electric system | |||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | ||
| License plate light | 12V | ||
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | ||
| Audio System | Radio and tape player | ||
| CD player to replace tape player | |||
| Microphone | Wired | ||
| Speaker | 4pcs | ||
| Reversing alarm | |||
| Switch assembly | Lights switch, horn switch, wiper switch | ||
| Wiper | 12V | ||
| with water sprayer | |||
| Solar panel | 2pcs, 48V/170W | ||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | ||
| Steering and Suspension | |||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | ||
| Brake system | Four wheel hydraulic drum brake+hand parking brake | ||
| Transmission system | Clutch, 4F+1R gear box, transmission shaft | ||
| Front suspension | Independent suspension, helix spring + shock absorber | ||
| Rear suspension | rear plate spring + shock absorber | ||
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 145R12,6PR | ||
| 4J*12 Aluminum wheel, | |||
Color
Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 1unit | |
| Qty/40' | 2units | |
| Qty/40'HQ | 2units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
