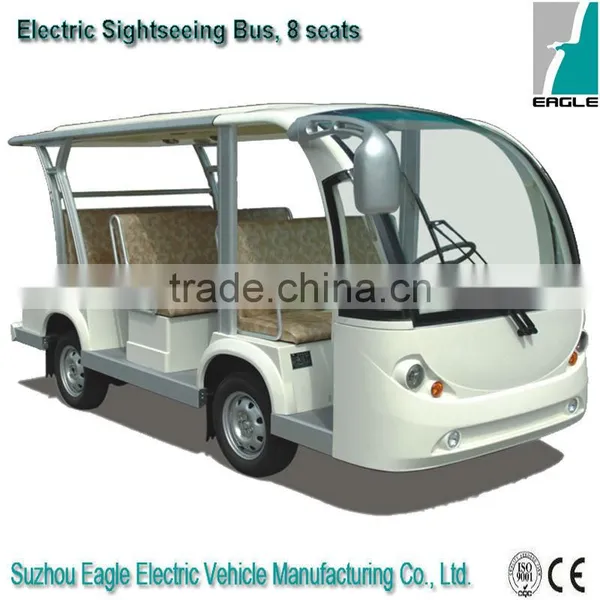

Electric Sightseeing Car, 8 Seater, CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Shuttle Personnel Carrier, 23 Seater, CE ApprovedNegotiableMOQ: 1 Unit -
Electric Closed Bus, 14 Seater, CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Enclosed Sightseeing Bus, 11 Seater, CE ApprovedNegotiableMOQ: 1 Unit
-
11 Seater Electric Enclosed Sightseeing Car , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Enclosed Shuttle Bus, 8 Seater, CE ApprovedNegotiableMOQ: 1 Unit
Power
Electric
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6088K
Electric sightseeing car, 8 seater, CE approved
Product Description
| Model | EG6088K | EG6088K03 | |
| System | 48V/3KW Series | 72V/5KW Series | |
| Key Components | |||
| Battery | 8xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) | |
| Motor | 3KW Chinese motor | 5KW Chinese motor | |
| Controller | Curtis 1204 (275A@2minutes) | Curtis 1205M (400A@1minute) | |
| Performance | |||
| Passenger capacity | 8 | 8 | |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >60 | >100 | |
| Max. speed (km/h) | 35 | 32 | |
| Minimum turning radius (m) | 4.5 | 4.5 | |
| Max. climbing ability (loaded) | 20% | 15% | |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | |
| Max. loading weight | 640kgs | 640kgs | |
| Net weight | 1010kgs | 1120kgs | |
| Dimensions | |||
| Overall dimensions (mm) | 4230X1490X2050 | ||
| Min. ground clearance (mm) | 140 | ||
| Wheelbase (mm) | 1900 | ||
| Front wheel tread (mm) | 1210 | ||
| Rear wheel tread (mm) | 1200 | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||
| Body and Frame | |||
| Frame | Welded steel framework with sand blasting+paint treatment | ||
| Body | Fibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body) | ||
| Roof | Fibreglass+aluminum frame, with roof handle | ||
| Windshield | Laminated glass | ||
| 2point seat belt | 6pcs | ||
| 2point seat belt | 8pcs | ||
| Overshadowing Curtain | |||
| Enclosure | PVC | ||
| Large Seats: | |||
| 1) backrest and cushion | Sponge + artificial leather | ||
| 2) armrest | Aluminum | ||
| New seat | Backrest and seat cushion be separated | ||
| Floor | Bamboo + artificial leather | ||
| Cup drinker holder | 1pc | ||
| Inner rear view mirror | One piece per cart in the middle of the windshield | ||
| Side rear view mirror | Two pieces per cart | ||
| Battery watering system,48V system | without water supply tool | ||
| Battery watering system,72V system | without water supply tool | ||
| Manual Pump | water supply tool (other water supply tools are available) | ||
| Emergency power-off button | / | ||
| Police lights with the loud speaker | / | ||
| Electric system | |||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | ||
| License plate light | 12V | ||
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | ||
| Audio System | Radio and MP3 receiver | ||
| CD player to replace MP3 receiver | |||
| Microphone | Wired | ||
| Speaker | 4pcs | ||
| Reversing alarm | |||
| Switch assembly | Lights switch, horn switch, wiper switch | ||
| Wiper | 12V | ||
| with water sprayer | |||
| Solar panel | 48V/185W | ||
| 72V/270W | |||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | ||
| Steering and Suspension | |||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | ||
| Right hand drive system | |||
| Electrical power steering | |||
| Brake system | Four wheel hydraulic drum brake+hand parking brake | ||
| Front disc brake and rear drum brake, with vacuum booster | |||
| Transmission system | Clutch, 4F+1R gear box, transmission shaft | Automatic Drive Sytem (Stepless Speed change system) | |
| Front suspension | Independent suspension, helix spring + shock absorber | ||
| Rear suspension | rear plate spring + shock absorber | ||
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 155R12C,8PR | ||
| 4J*12 Aluminum wheel, | |||
Color
Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 2units | 1unit |
| Qty/40' | 4units | 2units |
| Qty/40'HQ | 4units | 2units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
