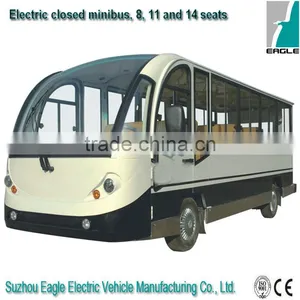

11 Seater Electric Enclosed Sightseeing Car , CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Enclosed Shuttle Bus, 8 Seater, CE ApprovedNegotiableMOQ: 1 Unit -
14 Seat Sightseeing Electric Mini BusNegotiableMOQ: 1 Unit
-
Electric Closed Passenger Car, EG6043KF , 4 Seats, CE Approved Electric Golf Car With Solar PanelNegotiableMOQ: 1 Unit
-
2 Person Electric Car for Patrol, Electric Patrol Car EG6023KNegotiableMOQ: 1 Unit
-
6 Seat Electric Passenger Vehicle With Aluminum Hard Door, Suzhou Eagle Electric Vehicle EG6063KBFNegotiableMOQ: 1 Unit
Power
Electric
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6118KAF
11 seater Electric enclosed sightseeing car , CE approved
Product Description
| Model | EG6118KAF02 | EG6118KAF04 |
| System | 72V/5KW Series | 72V/7.5KW AC system |
| Key Components | ||
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor | 7.5KW Chinese motor |
| Controller | Curtis 1205M (400A@1minute) | Zapi AC2(400A@2minute) |
| Performance | ||
| Passenger capacity | 11 | 11 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >100 | >110 |
| Max. speed (km/h) | 32 | 32 |
| Minimum turning radius (m) | 4.5 | 4.5 |
| Max. climbing ability (loaded) | 15% | 18% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
| Max. loading weight | 880kgs | 880kgs |
| Net weight | 1080kgs | 1129kgs |
| Dimensions | ||
| Overall dimensions (mm) | 4230X1490X2050 | |
| Min. ground clearance (mm) | 140 | |
| Wheelbase (mm) | 1900 | |
| Front wheel tread (mm) | 1210 | |
| Rear wheel tread (mm) | 1200 | |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||
| Body and Frame | ||
| Frame | Welded steel framework with sand blasting+paint treatment | |
| Body | Fibreglass | |
| Roof | Fibreglass+aluminum frame, with roof handle | |
| Windshield | Laminated glass | |
| 2point seat belt | 8pcs | |
| 2point seat belt | 11pcs | |
| Large Seats: | ||
| 1) backrest and cushion | Sponge + artificial leather | |
| 2) armrest | Aluminum | |
| New seat | Backrest and seat cushion be separated | |
| Floor | Bamboo + artificial leather | |
| Cup drinker holder | 1pc | |
| Inner rear view mirror | One piece per cart in the middle of the windshield | |
| Side rear view mirror | Two pieces per cart | |
| Battery watering system,48V system | without water supply tool | |
| Battery watering system,72V system | without water supply tool | |
| Manual Pump | water supply tool (other water supply tools are available) | |
| Emergency power-off button | / | |
| Solar panel | 72W 270W | |
| Police lights with loud speaker | / | |
| Electric system | ||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | |
| License plate light | 12V | |
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | |
| Audio System | Radio and MP3 receiver | |
| CD player to replace MP3 receiver | ||
| Microphone | Wired | |
| Speaker | 4pcs | |
| Reversing alarm | ||
| Switch assembly | Lights switch, horn switch, wiper switch | |
| Wiper | 12V | |
| with water sprayer | ||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
| Steering and Suspension | ||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |
| Right hand drive system | ||
| Electrical power steering | ||
| Brake system | Four wheel hydraulic drum brake+hand parking brake | |
| Front disc brake and rear drum brake, with vacuum booster | ||
| Drive system | Automatic drive system (stepless speed change) | |
| Front suspension | Independent suspension, helix spring + shock absorber | |
| Rear suspension | rear plate spring + shock absorber | |
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 155R12,8PR | |
| 4J*12 Aluminum wheel, | ||

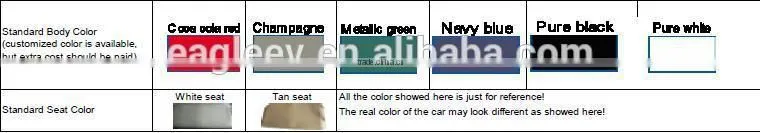

Color

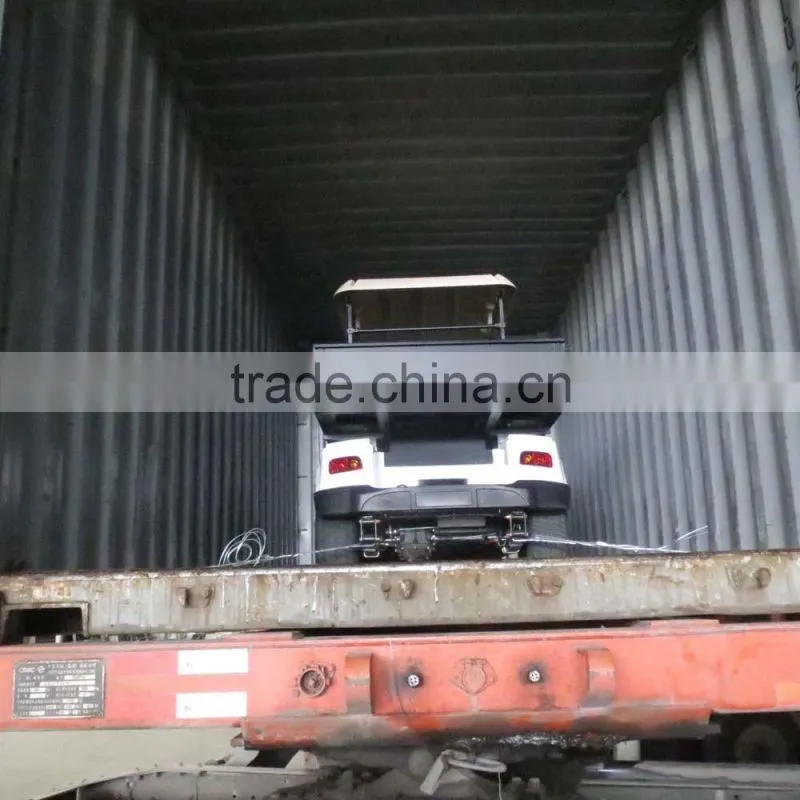

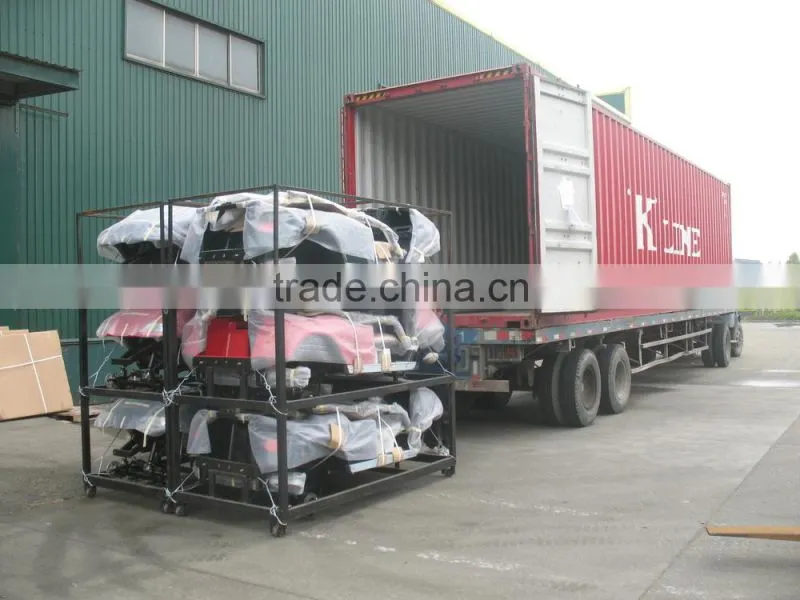

Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | / | 1unit |
| Qty/40' | / | 2units |
| Qty/40'HQ | / | 2units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
