Home > Transportation > Specialized Vehicle > Sightseeing Bus & Car > Electric Shuttle Personnel Carrier, 23 Seater, CE Approved

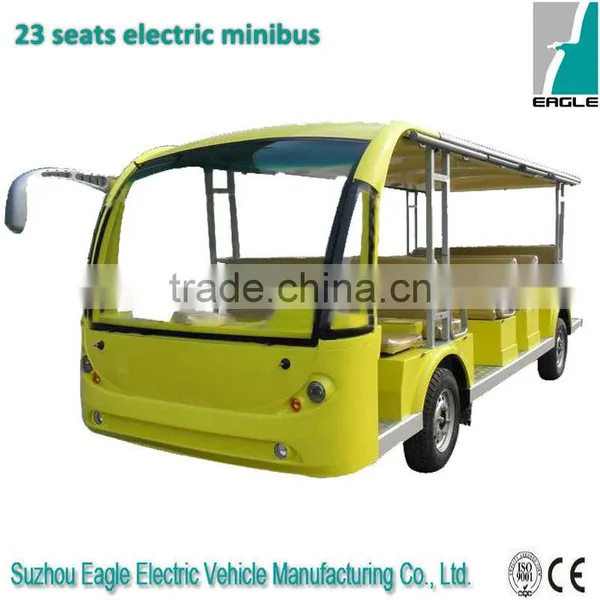

Electric Shuttle Personnel Carrier, 23 Seater, CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
Electric
Brand Name:
Eagle
Model Number:
EG6223K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Closed Bus, 14 Seater, CE ApprovedNegotiableMOQ: 1 Unit -
Electric Enclosed Sightseeing Bus, 11 Seater, CE ApprovedNegotiableMOQ: 1 Unit
-
11 Seater Electric Enclosed Sightseeing Car , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Enclosed Shuttle Bus, 8 Seater, CE ApprovedNegotiableMOQ: 1 Unit
-
14 Seat Sightseeing Electric Mini BusNegotiableMOQ: 1 Unit
Power
Electric
Brand Name
Eagle
Model Number
EG6223K
Electric shuttle personnel carrier, 23 seater, CE approved
| Model | EG6230K | EG6230K01 |
| System | 72V/6.3KW Series | 72V/10KW Series |
| Key Components | ||
| Battery | 24xT105(185Ah@5hr rate) | 24xT105(185Ah@5hr rate) |
| Motor | 6.3KW Chinese motor | 10KW Chinese motor |
| Controller | Curtis 1209 (400A@1minute) | Curtis 1209 (400A@1minute) |
| Performance | ||
| Passenger capacity | 23 | 23 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >70 | >70 |
| Max. speed (km/h) | 45 | 45 |
| Minimum turning radius (m) | 6.5 | 6.5 |
| Max. climbing ability (loaded) | 15% | 20% |
| Max. movement after brake at speed of 20km/h | ≤7m | ≤7m |
| Max. loading weight | 1840kgs | 1840kgs |
| Net weight | 2400kgs | 2460kgs |
| Dimensions | ||
| Overall dimensions (mm) | 5950*1950*2170 | |
| Min. ground clearance (mm) | 165 | |
| Wheelbase (mm) | 3200 | |
| Front wheel tread (mm) | 1692 | |
| Rear wheel tread (mm) | 1700 | |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||
| Body and Frame | ||
| Frame | Welded steel framework with sand blasting+paint treatment | |
| Body | Fibreglass | |
| Roof | Fibreglass+aluminum frame | |
| Windshield | Laminated glass | |
| Overshadowing Curtain | ||
| Large Seats: | ||
| 1) backrest and cushion | Sponge + artificial leather | |
| 2) armrest | Aluminum | |
| Floor | Bamboo + artificial leather | |
| Inner rear view mirror | One piece per cart in the middle of the windshield | |
| Side rear view mirror | Two pieces per cart | |
| Battery watering system,72V system | without water supply tool | |
| Manual Pump | water supply tool (other water supply tools are available) | |
| Emergency power-off button | / | |
| 2point seat belts | 23pcs | |
| Electric system | ||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 72V to 12V) , horn. | |
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | |
| Audio System | Radio and MP3 receiver | |
| Speaker | 6pcs | |
| Reversing alarm | ||
| Switch assembly | Lights switch, horn switch, wiper switch | |
| Wiper | 12V,100W | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A , 2pcs | |
| Steering and Suspension | ||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function, with hydraulic power assistant steering system | |
| Brake system | Front disc brake and rear drum brake, with vacuum booster | |
| Drive system | 5F+1R gear box, with clutch | |
| Front suspension | Independent suspension, helix spring + shock absorber | |
| Rear suspension | rear plate spring + shock absorber | |
| Wheel & Tyre | Tire 215/70R15C-8PR, with steel wheel and wheel cap | |
| Aluminum wheel, | ||
Color
Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | / | / |
| Qty/40' | 2 | 1 |
| Qty/40'HQ | 2 | 1 |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
