Electric Garbage Barrel Collection Truck, CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Other, Collection
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Refuse Truck With Side Loading for Recovery, CE ApprovedNegotiableMOQ: 1 Unit -
Electric High Pressure Water Cleaning Truck With CE CertificateNegotiableMOQ: 1 Unit
-
Electric Collection Truck for Liquid Waste , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Mini Garbage Collecting Car, CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Garbage Truck With Tail Gate Tipper, 1000kgs Loading Weight, Simple Enclosed Cab, EG6023XA1NegotiableMOQ: 1 Unit
Condition
New
Drive Wheel
4x2
Type
Other, Collection
Transmission Type
Manual
Volume
1000 - 3000L
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6032X01
Certification
CE
Size
4550x1500x2150mm

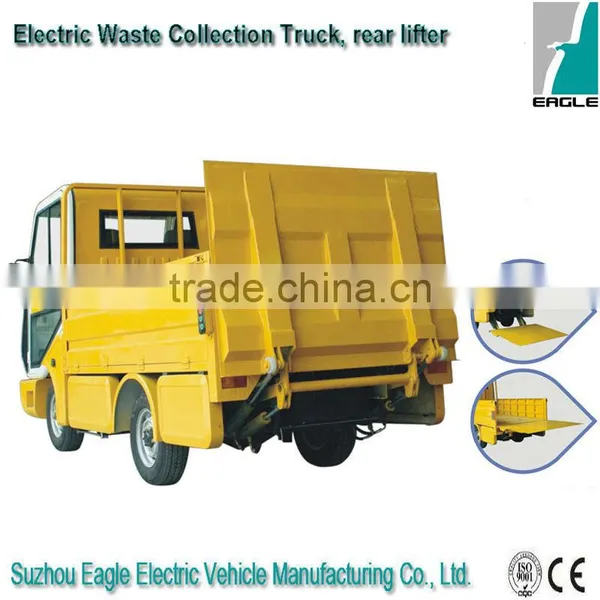

Electric garbage barrel collection truck, CE approved
Product Description
| Model | EG6032X01 | EG6032X03 |
| Description | Garbage barrel collecting vehicle | Garbage barrel collecting vehicle |
| System | 72V/5KW Series | 72V/7.5KW AC system |
| Key Components | ||
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor for 60minutes | 7.5KW Chinese motor |
| Controller | Curtis 1209(400A@2minutes) | Zapi AC2(400A@2minutes) |
| Performance | ||
| Passenger capacity | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | 60 | 60 |
| Max. speed(km/h) | 50 | 50 |
| Minimum turning radius (m) | 5 | 5 |
| Max. climbing ability (loaded) | 20% | 20% |
| Max. movement after brake at speed of 20km/h | N/A | N/A |
| Max. loading weight of the vehicle | 1000kgs | 1000kgs |
| Max.lifting weight of the rear lifter | 300kgs | 300kgs |
| Net weight | 1770kgs | 1779kgs |
| Dimensions | ||
| Overall dimensions (mm) | 4550x1500x2150 | |
| Rear garbage box dimension(mm) | 2760X1500X550 | |
| Min. ground clearance (mm) | 150 | |
| Wheelbase (mm) | 2200 | |
| Front wheel tread (mm) | 1220 | |
| Rear wheel tread (mm) | 1220 | |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||
| Body and Frame | ||
| Frame | Welded steel framework with sand blasting+paint treatment | |
| Body | Fibreglass | |
| Roof | Fibreglass | |
| Cabin | Aluminum frame + glass door | |
| Rear Bumper | Steel tube | |
| Windshield | Laminated glass | |
| Seats | With backrest and headrest, sliding | |
| Floor | Anti-sliding ruber floor mat | |
| Hydraulic lifting rear platform | ||
| Sliding system of battery | ||
| Side rear view mirror | Two pieces per cart | |
| Inner rear view mirror | One piece per cart in the middle of the windshield | |
| Battery watering system,72V system | without water supply tool | |
| Manual Pump | water supply tool (other water supply tools are available) | |
| Seatbelt | 3-point, 2pcs | |
| Electric system | ||
| Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2 front foglight, 2 taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn. | |
| Dashboard | FRP, with voltameter, ammeter, odometer, emergency switch; combined switch, meter indicator | |
| Audio System | Radio and MP3 adaptor | |
| Speaker | 2pcs | |
| Reversing alarm | ||
| Switch assembly | Lights switch, horn switch, wiper switch | |
| Emergency power-off button | ||
| Wiper | 12V, 50W, single arm | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A | |
| Offboard, Delta-Q 72V/12A 2pcs | ||
| Industrial police light | on top | |
| Heater | Diesel, for defrosting, 2KW | |
| Steering and Suspension | ||
| Steering system | Recirculating ball steering gear+ steering wheel | |
| Electrical power steering system | ||
| Brake system | Four wheel hydraulic drum brake+ parking brake | |
| Brake assistant | ||
| Transmission | Clutch, gear box, transimmison shaft | |
| Front suspension | plate spring + hydraulic shock absorber | |
| Rear suspension | rear plate spring + hydrualic shock absorber | |
| Rear axle | Integrated, Gear ratio 43:8 | |
| Wheel & Tyre | 175R14C tubeless tire, 14*5.5 J steel rim | |
Packaging & Shipping
Container loading qty Assembled
Qty/20' 1
Qty/40' 2
Qty/40'HQ 2
Color
Company Information
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
