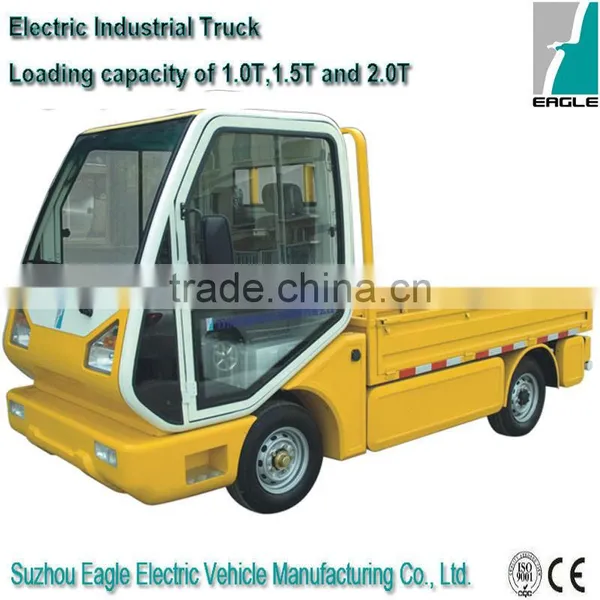

Electric mini semi trucks for sale with 1500kgs loading capacity , CE approved
Negotiable
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition: | New | Capacity (Load): | 1 - 10t | Drive Wheel: | 4x2 |
| Horsepower: | Other, < 150hp | Transmission Type: | Manual | Place of Origin: | Jiangsu, China |
| Brand Name: | Eagle | Model Number: | EG6032H |
Product Description
Electric mini semi trucks for sale with 1500kgs loading capacity , CE approved
| Model | EG6032H | EG6032H03 | EG6032H04 |
| Description | 1.5T electric truck | 1.5T electric truck | 1.5T electric truck |
| System | 72V/5KW Series | 72V/7.5KW AC system | 72V/7.5KW AC system |
| Key Components | |||
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor | 7.5KW Chinese motor | 7.5KW Chinese motor |
| Controller | Curtis 1209(400A@2minutes) | Zapi AC2(400A@2minutes) | Zapi AC2(400A@2minutes) |
| Performance | |||
| Passenger capacity | 2 | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >60 | >60 | >60 |
| Max. speed(km/h) | 55 | 55 | 28 |
| Minimum turning radius (m) | 5.3 | 5.3 | 5.3 |
| Max. climbing ability (loaded) | 20% | 20% | 12% |
| Max. movement after brake at speed of 20km/h | ≤NA | ≤NA | ≤NA |
| Max. loading weight | 1500kgs | 1500kgs | 1500kgs |
| Net weight | 1680kgs | 1670kgs | 1645kgs |
| Dimensions | |||
| Overall dimensions (mm) | 4580X1500X2150 | ||
| Rear cargo bed dimension(mm) | 3000X1500X319 | ||
| Min. ground clearance (mm) | 150 | ||
| Wheelbase (mm) | 2370 | ||
| Front wheel tread (mm) | 1220 | ||
| Rear wheel tread (mm) | 1220 | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||
| Body and Frame | |||
| Frame | Welded steel framework with sand blasting+paint treatment | ||
| Body | Fibreglass | ||
| Roof | Fibreglass | ||
| Cabin | Aluminum frame + glass door | ||
| Rear Bumper | Steel Tube | ||
| Windshield | Laminated glass | ||
| Seats | With backrest and headrest, sliding | ||
| Floor | Anti-sliding ruber floor mat | ||
| Battery sliding system | |||
| Side rear view mirror | Two pieces per cart | ||
| Inner rear view mirror | One piece per cart in the middle of the windshield | ||
| Battery watering system,72V system | without water supply tool | ||
| Manual Pump | water supply tool (other water supply tools are available) | ||
| Seatbelt | 3-point, 2pcs | ||
| Electric system | |||
| Lighting system and horn | 2 combined front lights(headlight, turning light, position light), 2 front foglight, 2 taillight(turn signals and brake lights), with DC-DC converter (converting from 72V to 12V), horn. | ||
| Dashboard | voltameter, ammeter, odometer, emergency switch; combined switch, meter indicator | ||
| Audio System | Radio and MP3 adaptor | ||
| Speaker | 2pcs | ||
| Reversing alarm | |||
| Switch assembly | Lights switch, horn switch, wiper switch | ||
| Emergency power-off button | |||
| Wiper | 12V, 50W, single arm | ||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A | ||
| Offboard, Delta-Q 72V/12A 2pcs | |||
| Heater | Diesel, for defrosting, 2KW | ||
| Amber Flashing light | On top | ||
| Steering and Suspension | |||
| Steering system | Recirculating ball steering gear+ steering wheel | ||
| Electrical power steering system | |||
| Brake system | Four wheel hydraulic drum brake+ parking brake | ||
| Brake assistant | |||
| Transmission | Clutch, gear box, transimmison shaft | Automatic drive system (Stepless speed change system) | |
| Front suspension | plate spring + hydraulic shock absorber | ||
| Rear suspension | rear plate spring + hydrualic shock absorber | ||
| Rear axle | Integrated | ||
| Wheel & Tyre | 175R13C tubeless tire, 13*5.5 J steel rim | ||
Color
Packaging & Shipping
| Container loading qty | Assembled |
| Qty/20' | 1 |
| Qty/40' | 2 |
| Qty/40'HQ | 2 |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
