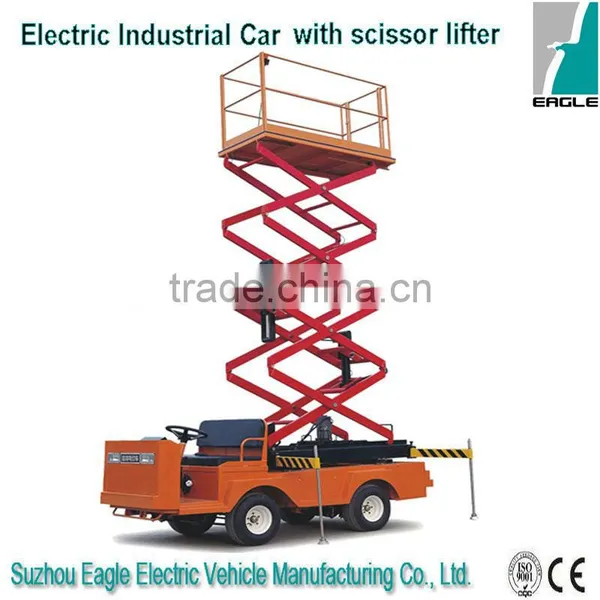

Electric Industrial Utility Vehicle With Scissor Lifter , CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG6060J
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Industrial Utility Vehicle, 1500kgs Loading Capacity, CE ApprovedNegotiableMOQ: 1 Unit -
Electric Fire Fighting Car With Outfire Equipments, CE ApprovedNegotiableMOQ: 1 Unit
-
Special Truck of Electric Fire Engine , CE ApprovedNegotiableMOQ: 1 Unit
-
Small Size Electric Fire Fighting Vehicle , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Garbage Barrel Collection Truck, CE ApprovedNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6060J
Lift Mechanism
Scissor Lift
Lift Drive / Actuation
Electric Motor
Power
1.1KW
Rated Loading Capacity
300KGS
Max. Lifting Height
6 meters
Table Size
2110X1370X260mm
Overall Dimensions
3415X1390X1200mm
Weight
1300kg
Certification
CE
Electric industrial utility vehicle with scissor lifter , CE approved
Product Description
| Model | EG6060J |
| System | 48V/3KW Series |
| Key Components | |
| Battery | 8xT105(185Ah@5hr rate) |
| Motor of vehicle | 3KW Chinese motor for 60minutes |
| Motor of lifter | 1.1KW |
| Controller | Curtis 1204 (275A@2minutes) |
| Performance | |
| Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >60 |
| Max. speed | 35 |
| Minimum turning radius (m) | 4.3 |
| Max. climbing ability (loaded) | 15% (scissor lifter in none working status) |
| Max. lift height of lifter (m) | 6 |
| Max. lift weight of lifter (kgs) | 160 |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max. loading weight of the whole vehicle | 320kgs |
| Net weight | 1300kgs |
| Dimensions | |
| Overall dimensions (mm) | 3415X1390X1200 |
| Cargo bed dimensions (mm) | 2110X1370X260 |
| Min. ground clearance (mm) | 160 |
| Wheelbase (mm) | 1730 |
| Front wheel tread (mm) | 1210 |
| Rear wheel tread (mm) | 1200 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |
| Body and Frame | |
| Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Steel plate |
| 2point seat belt | |
| Large Seats: | |
| 1) backrest and cushion | Rebond seat + artificial leather |
| 2) armrest | Steel |
| Floor | Bamboo board+ plastic |
| Cover for rear bed | plywood+ galvanized steel plate |
| Beverage holders | 1 cup drink holders |
| Side rear view mirror | Two pieces per cart |
| Front Canvas roof with windshield | Steel frame, organic windshield. |
| Battery watering system,48V system | without water supply tool |
| Manual Pump | water supply tool (other water supply tools are available) |
| Electric system | |
| Lighting system and horn | Front: 2 Headlights, 2 front turn signals; Back: 2 rear turn signals, 2 brake lights; |
| DC/DC Converter | 48V/12V DC/DC |
| Reversing alarm | |
| Dashboard meter | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, ignition key; Headlight switch, turn signal switch, horn button; |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 348V, 25A |
| Steering and Suspension | |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake + hand brake |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft |
| Front suspension system | independent suspension, cylinder hydraulic vibration absorber |
| Rear suspension system | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Wheel & Tyre | 4J*12 steel rim, 155R12C 8PR 6PR tyre, with wheel cover |
Color
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
