Home > Transportation > Truck > General Cargo Truck > Flat Cargo Truck of Electric Industrial Car With 800kgs Loading Capacity, CE Approved

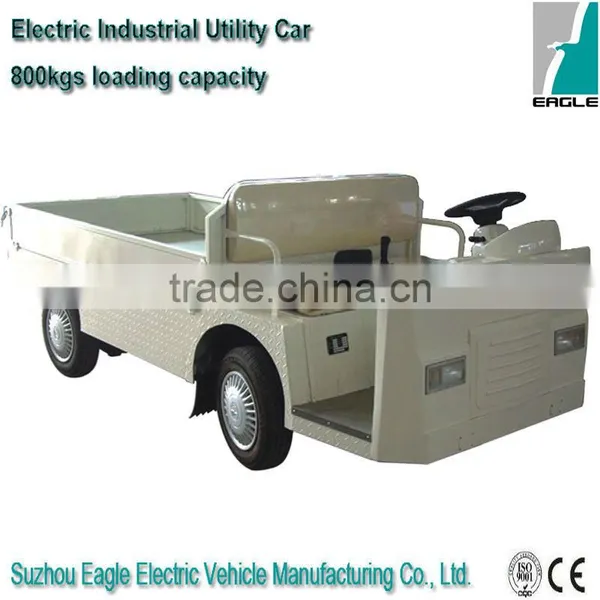

Flat Cargo Truck of Electric Industrial Car With 800kgs Loading Capacity, CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity (Load):
1 - 10t
Drive Wheel:
4x2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Industrial Utility Vehicle With Scissor Lifter , CE ApprovedNegotiableMOQ: 1 Unit -
Electric Industrial Utility Vehicle, 1500kgs Loading Capacity, CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Fire Fighting Car With Outfire Equipments, CE ApprovedNegotiableMOQ: 1 Unit
-
Special Truck of Electric Fire Engine , CE ApprovedNegotiableMOQ: 1 Unit
-
Small Size Electric Fire Fighting Vehicle , CE ApprovedNegotiableMOQ: 1 Unit
Condition
New
Capacity (Load)
1 - 10t
Drive Wheel
4x2
Horsepower
Other, < 150hp
Transmission Type
Manual
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6021H
flat cargo truck of Electric industrial car with 800kgs loading capacity, CE approved
Product Description
| Model | EG6021T | EG6021T01 |
| System | 48V/3KW Series | 48V/5KW Series |
| Key Components | ||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3KW Chinese motor | 5KW Chinese motor |
| Controller | Curtis 1204 (275A@2minutes) | Curtis 1205 (350A@2minutes) |
| Performance | ||
| Passenger capacity | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >60 | >60 |
| Max. speed | 32 | 40 |
| Minimum turning radius (m) | 4.3 | 4.3 |
| Max. climbing ability (loaded) | 20% | 20% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
| Max. loading weight | 800kgs | 800kgs |
| Net weight | 920kgs | 920kgs |
| Dimensions | ||
| Overall dimensions (mm) | 3415X1390X1200 | |
| Cargo bed dimensions (mm) | 2110X1370X260 | |
| Min. ground clearance (mm) | 160 | |
| Wheelbase (mm) | 1730 | |
| Front wheel tread (mm) | 1210 | |
| Rear wheel tread (mm) | 1200 | |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||
| Body and Frame | ||
| Frame | Welded steel framework with sand blasting+paint treatment | |
| Body | Steel plate | |
| 2point seat belt | ||
| Large Seats: | ||
| 1) backrest and cushion | Rebond seat + artificial leather | |
| 2) armrest | Steel | |
| Floor | Bamboo board+ plastic | |
| Cover for rear bed | plywood+ galvanized steel plate on the top | |
| plywood+ galvanized steel plate on the top&bottom | ||
| Beverage holders | 1 cup drink holders | |
| Foldable side plate for rear bed | Carbon Steel, painted | |
| Side rear view mirror | Two pieces per cart | |
| Battery watering system,48V system | without water supply tool | |
| Manual Pump | water supply tool (other water supply tools are available) | |
| Front Canvas roof with windshield | Steel frame, organic windshield. | |
| Electric system | ||
| Lighting system and horn | Front: 2 Headlights, 2 front turn signals; Back: 2 rear turn signals, 2 brake lights; | |
| DC/DC Converter | 48V/12V DC/DC | |
| Reversing alarm | ||
| Dashboard meter | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, ignition key; Headlight switch, turn signal switch, horn button; | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 348V, 25A | |
| Steering and Suspension | ||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |
| Brake system | 4-wheel hydraulic brake + hand brake | |
| Transmission system | Clutch, 4F+1R gear box, transmission shaft | |
| Front suspension system | independent suspension, cylinder hydraulic vibration absorber | |
| Rear suspension system | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber | |
| Wheel & Tyre | 4J*12 steel rim, 155R12C 8PR tyre, with wheel cover | |
Color
Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 2units | 1units |
| Qty/40' | 4units | 2units |
| Qty/40'HQ | 4units | 2units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
