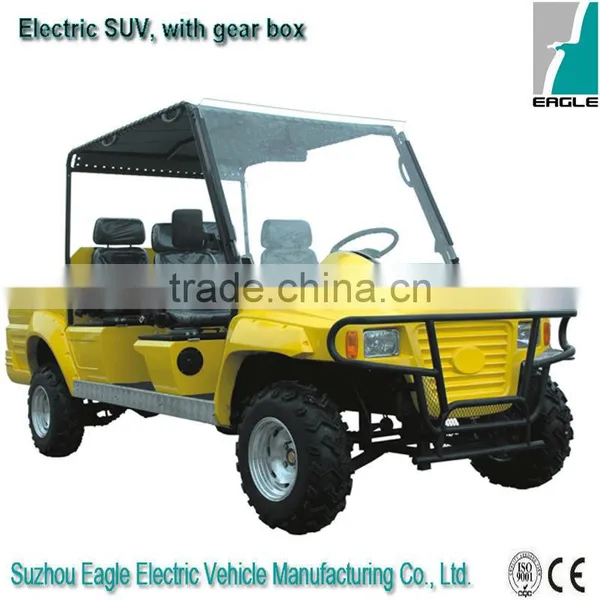

off Road Electric ATV,4 Seats With Cargo Bed , CE Approved

off Road Electric ATV,4 Seats With Cargo Bed , CE Approved thumbnail-1
off Road Electric ATV,4 Seats With Cargo Bed , CE Approved photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Eagle
Place of Origin:
Jiangsu, China
Model Number:
EG6042A
Contact Supplier Request Quote Chat Now
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Eagle
Place of Origin Jiangsu, China
Model Number EG6042A
Voltage Other, 72V

off road Electric ATV,4 seats with cargo bed , CE approved

Product Description



Model EG6042A EG6042A02
System 72V/5KW Series 72V/7.5KW AC
Key Components
Battery 12xT105(185Ah@5hr rate) 12xT105(185Ah@5hr rate)
Motor 5KW Chinese motor 7.5KW Chinese motor
Controller Curtis 1209(400A@2minutes) Zapi AC2(400A@2minutes)
Performance
Passenger capacity 4 4
Range (loaded) based on flat road at a speed of 20km/h (km)* >70 >70
Max. speed 50 50
Minimum turning radius (m) 5.42 5.42
Max. climbing ability (loaded)  20% 20%
Max. movement after brake at speed of 20km/h ≤4m ≤4m
Max. loading weight 620kgs 620kgs
Net weight 1136kgs 1136kgs
Dimensions
Overall dimensions (mm) 4150x1550x1950
Cargo bed dimensions (mm) 1090x1230x240 (inside)
Min. ground clearance (mm) 190
Wheelbase (mm) 2580
Front wheel tread (mm) 1250
Rear wheel tread (mm) 1310
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
Frame Welded steel framework with sand blasting+paint treatment
Body Fibreglass
Roof Fiberglass
Steel frame+ canvas roof
Front windshield One-piece organic glass
laminated windshield
2point seat belt
Large Seats:
     1) backrest and cushion Rebond seat + artificial leather
     2) armrest Formed armrest
     3) Seatbelt Retractable two point type
Floor Bamboo board+ plastic
Cover for rear bed plywood+ galvanized steel plate
steering wheel in wood finish
Beverage holders  1 cup drink holders
Side rear view mirror Two pieces per cart
Inner rear view mirror One piece per car
Battery watering system,72V system without water supply tool
Manual Pump water supply tool (other water supply tools are available)
Hand bar
Electric system
Lighting system and horn front headlights,  front turn signals, rear turn signals, taillights( combined brake lights with reverse lights), with DC-DC converter (converting from 72V to 12V)
Reversing alarm
Horn Normal beeper
Dashboard meter current meter, voltmeter, speedometer
Combined Switch Lights system and horn
Audio System Radio with MP3 receiver (12v)(including 2 water-proof speakers, wired microphone)
CD player to replace radio
Charger China origin, input 110V-240V~50Hz-60Hz, output 72V, 25A
Steering and Suspension
Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system 4-wheel hydraulic brake + hand brake
Transmission system Clutch, 4F+1R gear box, transmission shaft
Front suspension system independent suspension, cylinder hydraulic vibration absorber
Rear suspension system integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Wheel & Tyre 12x7 steel wheel + 23*8.5-12 tyre



Color

 off road Electric ATV,4 seats with cargo bed , CE approved

Packaging & Shipping



Container loading qty Disassembled Assembled
Qty/20' / 1units
Qty/40' / 2units
Qty/40'HQ 4units 2units

 off road Electric ATV,4 seats with cargo bed , CE approvedoff road Electric ATV,4 seats with cargo bed , CE approved

Company Information

 off road Electric ATV,4 seats with cargo bed , CE approved

Certifications

 off road Electric ATV,4 seats with cargo bed , CE approved

After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
