Help Center4 Seater Electric Golf Trolley Club Car
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG2048K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6 Seater Electric Trolley Golf Carts, EG2068KNegotiableMOQ: 1 Unit -
Electric Golf Carts, With Rear Golf Bag Seat, 2 Seats, CE Approved,EG2028TNegotiableMOQ: 1 Unit
-
2 Seater Mini Electric Golf CartNegotiableMOQ: 1 Unit
-
CE Approved 4 Passenger Electric Golf CarsNegotiableMOQ: 1 Unit
-
2 Seats Golf Carts, Fashion Model, CE Approved,EG2026KNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG2048K

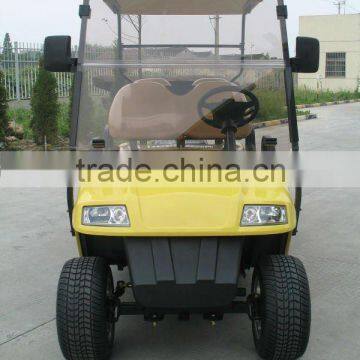

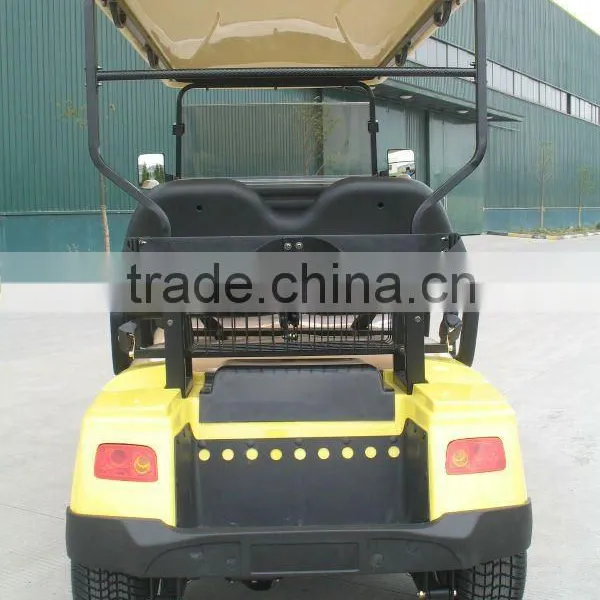

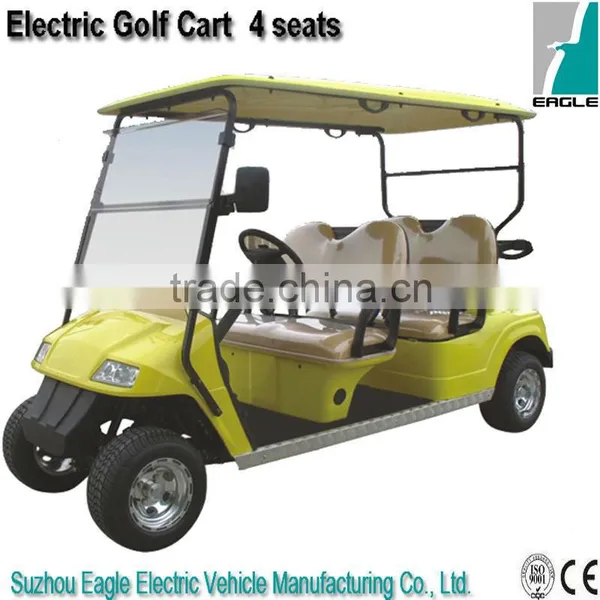

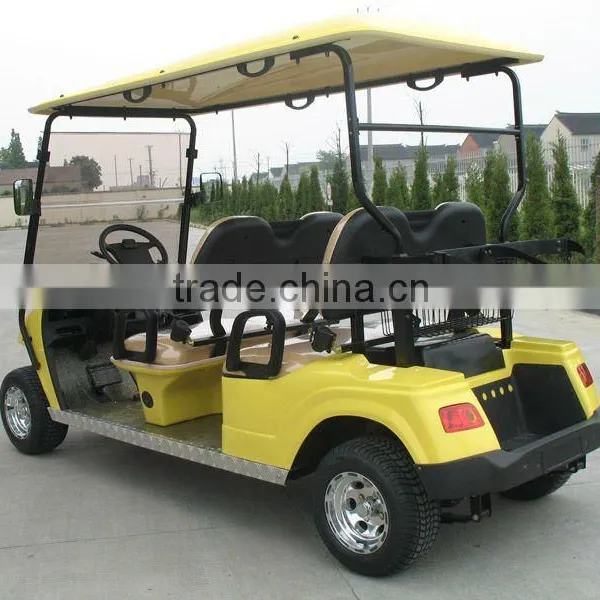

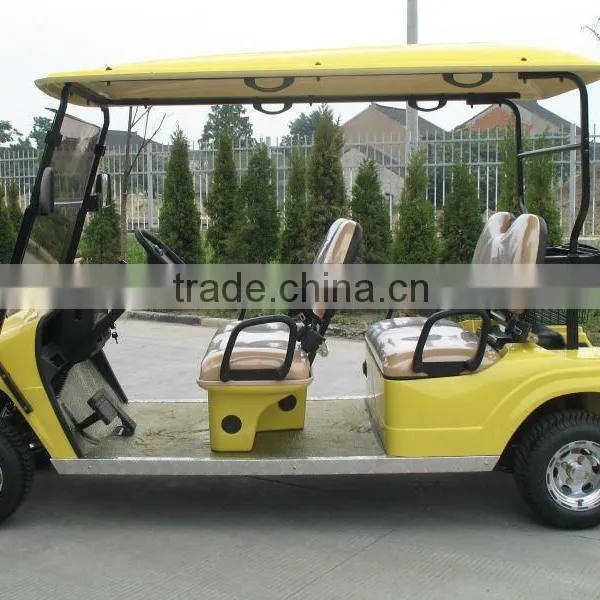

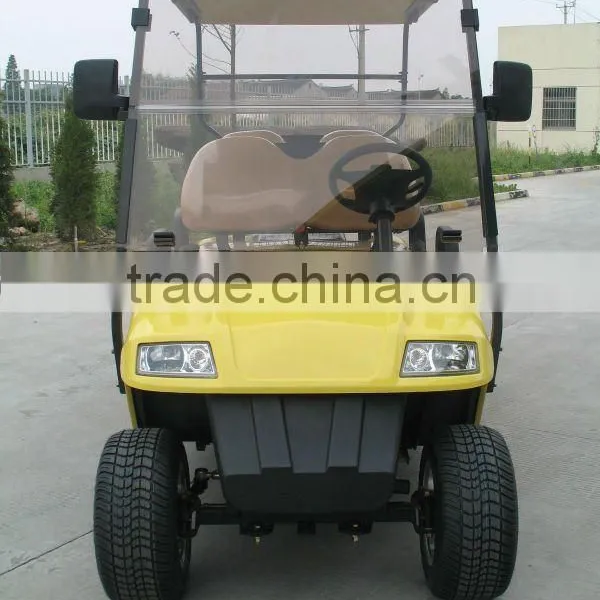

4 seater Electric Golf trolley club car
Product Description
| Model | EG2048K | EG2048K01 | EG2048K02 | EG2048K03 | EG2048K05 | EG2048K07 | EG2048K08 | EG2048K09 |
| System | 48V/3KW Sepex | 48V/4KW Sepex | 48V/4KW Sepex | 36V/3KW Sepex | 48V/5.3KW Sepex | 48V/3KW AC System | 48V/5KW AC System | 48V/5KW Sepex |
| Key Components | ||||||||
| Battery | 6PCSxT875(145Ah@5hr rate) | 6PCSxT875(145Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 6PCSxT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3KW ADC motor | 3.8KW Chinese motor | 3.8KW Chinese motor | 3KW ADC motor | 5.3KW Chinese Motor | 3KW German Motor | 5KW Chinese Motor | 5KW ADC DV9 Motor |
| Controller | Curtis 1266A (275A@2minutes | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Curtis 1243 (300A@2minutes) | Curtis 1268 (400A@2minutes | Zapi ACE0(280A@2minutes) | Zapi ACE2(400A@2minutes) | Curtis 1268 (400A@2minutes |
| Performance | ||||||||
| Passenger capacity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >55 | >55 | >80 | >50 | >80 | >100 | >100 | >80 |
| Max. speed @12.76:1 gear ratio | 25 | 32 | 32 | 21 | 32 | 32 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 32 | 40 | 40 | -- | -- | -- | -- | -- |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 20% | 25% | 25% | 20% | 25% | 25% | 25% | 25% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | 20% | 20% | -- | -- | -- | -- | -- |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs | 370kgs |
| Net weight | 542kgs | 544kgs | 594kgs | 536kgs | 557kgs | 545kgs | 665kgs | 558kgs |
| Dimensions | ||||||||
| Overall dimensions (mm) | 3110X1180X1890 | |||||||
| Min. ground clearance (mm) | 120 | |||||||
| Wheelbase (mm) | 2450 | |||||||
| Front wheel tread (mm) | 855 | |||||||
| Rear wheel tread (mm) | 975 | |||||||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||||||
| Body and Frame | ||||||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | |||||||
| Body | PP plastic front body + PP plastic rear body | |||||||
| Roof | Fibreglass | |||||||
| Plastic | ||||||||
| Windshield | one-piece Organic glass | |||||||
| Windshield, hinged | ||||||||
| Laminated windshield | ||||||||
| Laminated windshield with wiper | ||||||||
| Stainless steel package | including front upright, rear upright, sweater basket and bracket | |||||||
| Aluminum roof support | including front upright, rear upright,, caddie handle | |||||||
| 2point seat belt | option parts | |||||||
| Large Seats: | ||||||||
| 1) backrest and cushion | Rebond seat + artificial leather | |||||||
| 2) armrest | Formed | |||||||
| 3) plastic seat bottom | Last row of seat | |||||||
| Formed seat&backrest vinyl | exclude the front seat cushion | |||||||
| Backrest cover in wood finish | Option parts | |||||||
| Floor | rubber | |||||||
| Center storage basket | Large volume | |||||||
| Golf bag holder | Option parts | |||||||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||||||
| Dashboard in wood finish | Option parts | |||||||
| Steering wheel in wood finish | Option parts | |||||||
| Beverage holders | 4 cups drink holders | |||||||
| Glove box | ||||||||
| Glove box door (include two locks) in black plastic | 2 doors per set | |||||||
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | |||||||
| Side trim | Aluminum | |||||||
| Score card holder | on steering wheel | |||||||
| Towing bracket | on front of golf car | |||||||
| Inner rear view mirror | 1 piece per cart in the middle of the windshield | |||||||
| Side rear view mirror | Two pieces per cart | |||||||
| Battery watering system,48V system | without water supply tool | |||||||
| Battery watering system,36V system | without water supply tool | |||||||
| Manual Pump | water supply tool (other water supply tools are available) | |||||||
| Overshadowing Curtain | option parts | |||||||
| Front wheel fender(FRP material) | option parts | |||||||
| Rear trunk(FRP material) | option parts | |||||||
| Enclosure | option parts | |||||||
| Electric system | ||||||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||||||
| Reversing alarm | ||||||||
| Meter (only available for 48V system) | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | |||||||
| Emergency power-off button | option parts | |||||||
| Police Light&megaphone | option parts | |||||||
| 12V accessory plug | to be mounted on the dashboard | |||||||
| Hour meter | option parts | |||||||
| Solar Panel | 48V, 185W | |||||||
| Cooler | 12V DC, 6L | |||||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||||||
| Steering and Suspension | ||||||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||||||
| Right hand drive system | option parts | |||||||
| Brake system | Mechanical brake | |||||||
| 4-wheel hydraulic brake + hand brake | ||||||||
| 4-wheel hydraulic brake, front disc brake, rear drum brake | ||||||||
| Accelerator | Stepless speed change | |||||||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||||||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||||||
| Rear axle | Integrated, Gear ratio 12.76:1 | |||||||
| Integrated, Gear ratio 10.26:1 | ||||||||
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR | |||||||
| 6J-10 steel wheel with cap & 205/50-10 4PR | ||||||||
| 8*7 steel wheel with cap & 18*8.5-8 6PR | ||||||||
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 4units | 2units |
| Qty/40' | 12units | 6units |
| Qty/40'HQ | 18units | 6units |
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
