Specifications
A) chuck multicutterB) PLC
C) Max. diameter 600
C) 5-6 lathe tools at a time
D) especially suitable for rough machining

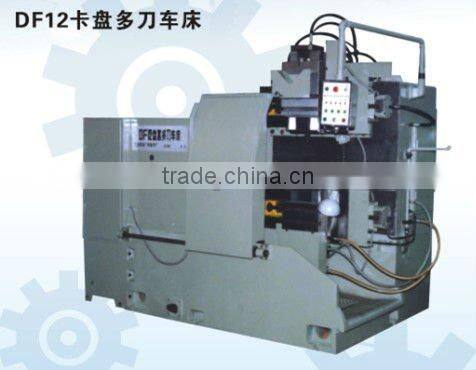

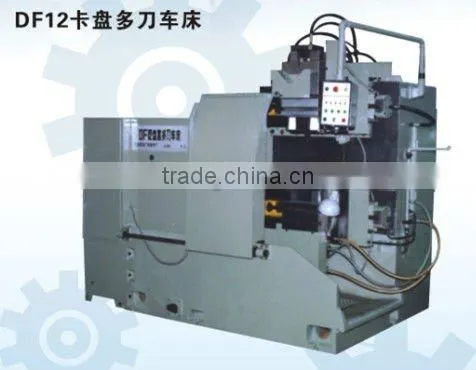

DE12 Chuck Hydraulic Multicutter Semi Automatic Lathe
A) chuck multicutter
B) PLC
C) Max. diameter 600
C) 5-6 lathe tools at a time
D) especially suitable for rough machining
This machine is a high efficient semi-automatic lathes for processing various dish class (short axis), bearing rings, gear base, the cylinder liner, those diameters over 500mm. Has the advantage of strong rigidity, big power, good precision stability, convenient operation, etc. Widely used in bearings, gears, automobile cylinder liner, motor, oil field, machine tools, etc.
Spindle starting and stopping are controlled by hydraulic clutch, upper and under knife rest vertically use anketten guide rail, hydraulic system with double pumps respectively provide energy for upper and under knife rest, electrical system use step program control circuit and PLC programmable control.
No. | Items | Unit | Parameter |
1 | Max. swing diameter of lathe bed | mm | 630 |
2 | Max. cutting diameter of knife rest | mm | 500 |
3 | Max. longitudinal travel of front knife rest | mm | 400 |
4 | Max. transverse travel of back knife rest | mm | 160 |
5 | Upper slide Swing degree(clockwise) | Degree | 45 |
6 | Upper slide Swing degree(anticlockwise) | Degree | 45 |
7 | Under slide Swing degree(clockwise) | Degree | 15 |
8 | Under slide Swing degree(anticlockwise) | Degree | 45 |
9 | Min. feeding speed | mm/min | 10 |
10 | Spindle revolving speed | r/min | 6 degrees:45,60,80,100,135,180, |
11 | Spindle hole | mm | 70 |
12 | Spindle front taper hole(Metric System) |
| 100 |
13 | Spindle motor power | KW | 22 |
14 | Fuel pump motor power | KW | 4 |
15 | Water pump motor power | KW | 0.09 |
16 | Overall dimension | mm | 2650×900×2200 |
17 | Overall weight | T | 9.5 |
TNN Development Ltd. (TNN) is an export-oriented, overseas-funded enterprise established in October, 1998.
TNN has passed ISO 9001: 2008 verification, TNN management and operation has obtained international advanced level.
Our goal is: Make your life better!
***********************************
Contact: Danny Tang
The TNN Development Limited
Tel: 0086 411 82561427
Fax: 0086 411 82561417
