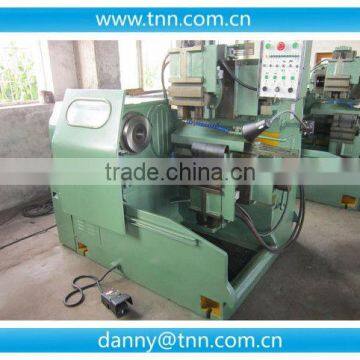

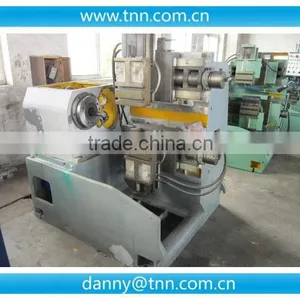

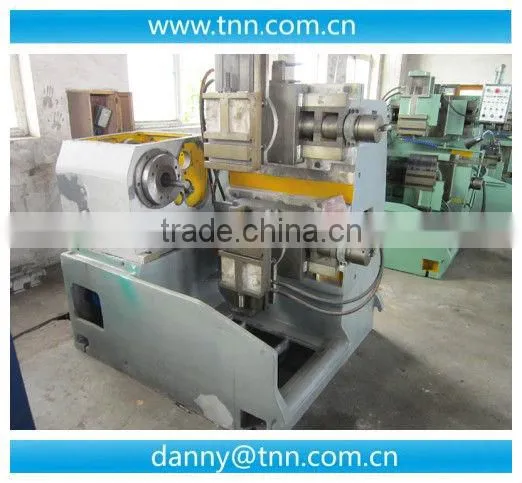

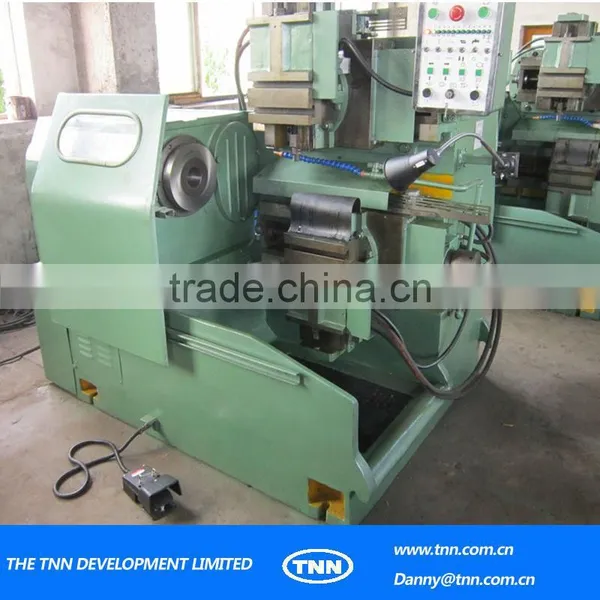

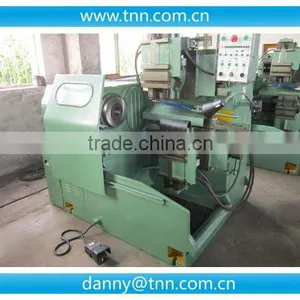

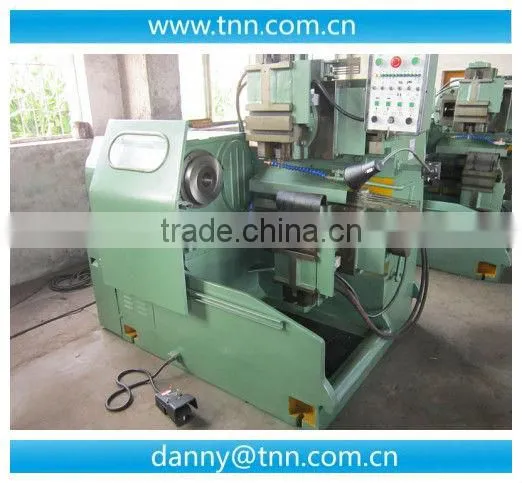

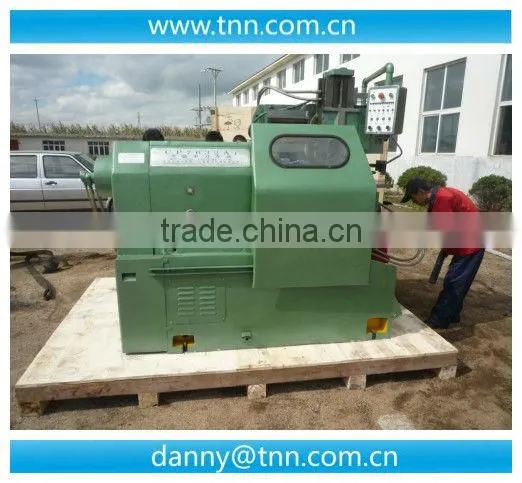

S33-newest designed multi-cutter hydraulic lathe machine price for sale
lathe machine price
Delivery in 30 days

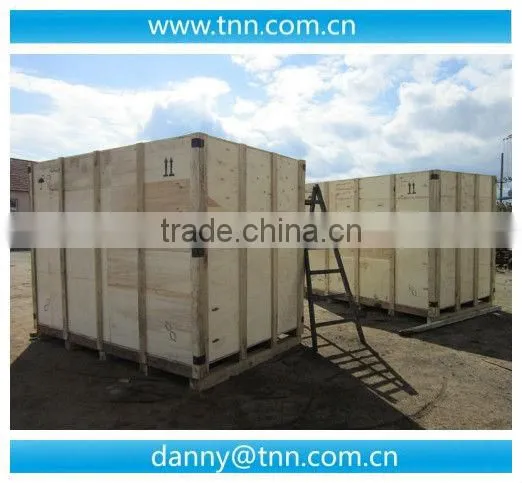

Professional packing, loading and fixing
1 year quality guarantee
ISO 9001:2008
Specifications:
This machine is a high efficient precision lathes for processing various dish class (short axis), bearing rings, gear base, the cylinder liner, those diameters over 300mm. Has the advantage of strong rigidity, big power, good precision stability, convenient operation, etc. Widely used in bearings, gears, automobile cylinder liner, motor, oil field, machine tools, etc.

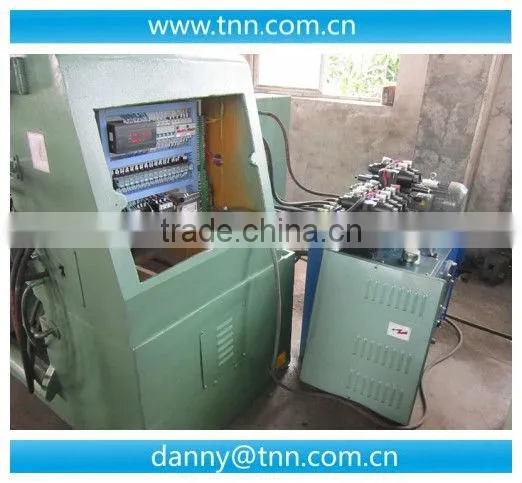

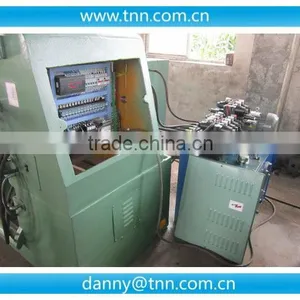

Spindle starting and stopping are controlled by hydraulic clutch, upper and under knife rest vertically use anketten guide rail, and knife rest on longitudinal can turn ± 18 °, hydraulic system with double pumps respectively provide energy for upper and under knife rest, electrical system use step program control circuit and PLC programmable control. metal lathe
No. | Items | Unit | Parameters | Note |
1 | Max. cutting diameter of knife rest | mm | 320 |
|
2 | Max. swing diameter of lathe bed | mm | 500 |
|
3 | Max. longitudinal travel of upper and under knife rest | mm | 350 |
|
4 | Max. transverse travel of upper and under knife rest | mm | 150 |
|
5 | Swing degree of upper knife rest | Degree | ±18 |
|
6 | Swing degree of under knife rest | Degree | ±45 |
|
7 | Transverse swing degree of under knife rest | Degree | 15°(clockwise)45(anticlockwise) |
|
8 | Min. feed of knife rest | mm/min | 10 |
|
9 | Speed of knife rest | mm/min | 4500 |
|
10 | Spindle speeds series | Degree | 8 |
|
11 | Spindle speed | r/min | 80/100/130/170/230/300/380/500 |
|
12 | Main motor power | KW | 18.5 |
|
13 | Oil pump flow | L/min | Max. 45(adjustable) |
|
14 | Working pressure of hydraulic system | MPa | 23 |
|
15 | Working pressure of chuck hydro-cylinder | MPa | 1.2—2.5 |
|
16 | Working pressure of hydraulic cluth | MPa | 1—2 |
|
17 | Fuel tank volume | L | 276 |
|
18 | Hydro-cylinder tension of chuck(2MPa) | KN | 90 |
|
19 | Overall weight | Kg | 4800 |
|
20 | Overall dimension | mm | L2260×W1800×H1880 |
|
TNN also supply all kinds of CNC metal machining machineries.

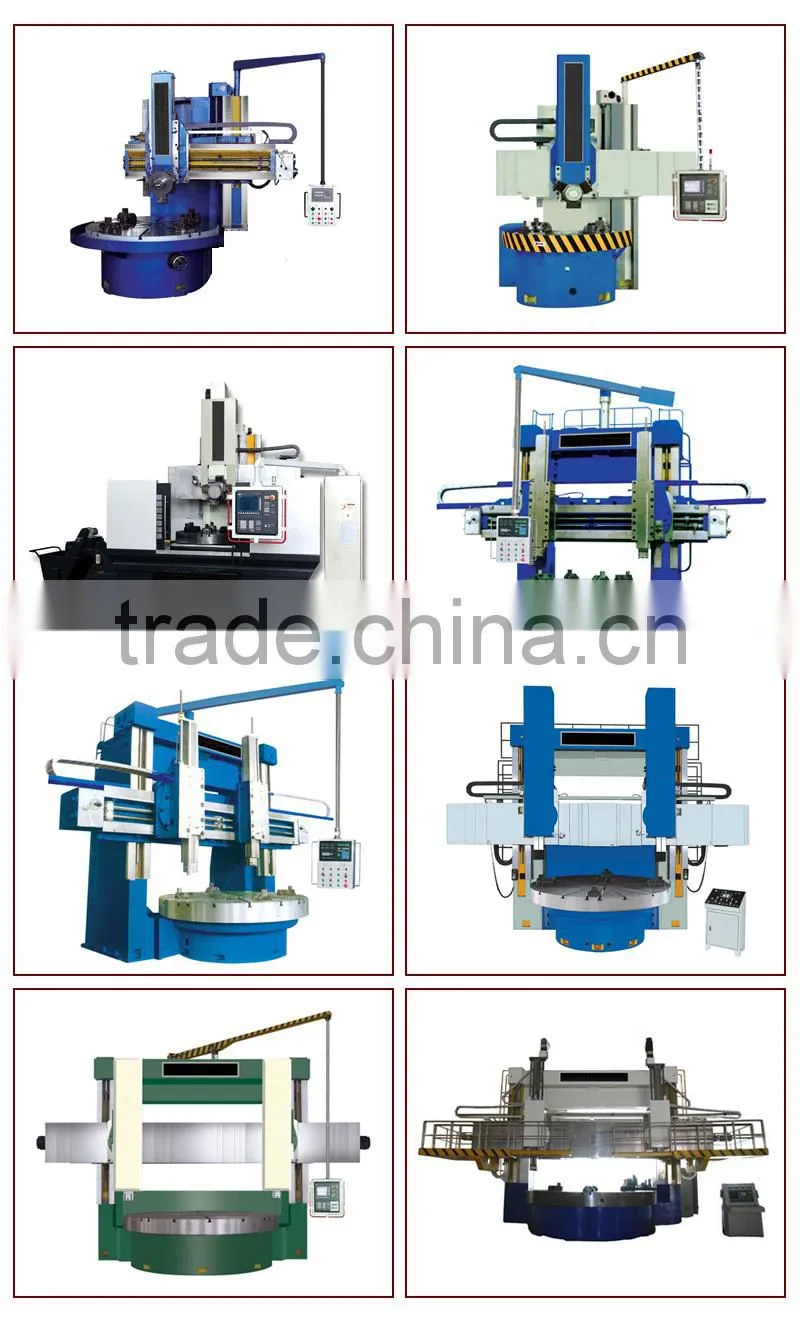

including CNC lathe machine, CNC milling machine, CNC vertical lathe machine, CNC turning center, CNC vertical machining center, CNC milling and boring machine, CNC heavy duty horizontal/vertical lathe machine, etc.
CNC lathe machine range and basic technical parameters(Flat Bed):
No. | Item | Unit | Flat Bed | |||||||||
CLK2010S | CLK3010S | CLK3230S | CLK6130E | CLK6140D | CLK6150 | CLK6156 | ||||||
1 | Swing over bed | mm | 230 | 350 | 300 | 400 | 500 | 560 | ||||
2 | Swing over slide | mm | 70 | 112 | 100 | 170 | 280 | 325 | ||||
3 | Center distance | mm | - | - | 500 | 750 | 1000 | 1000 | 1500 | 1000 | 1500 | |
4 | Max. process length | mm | 100 | 250 | 350 | 550 | 860 | 820 | 1320 | 820 | 1320 | |
5 | X travel | mm | 230 | 300 | 165 | 230 | 295 | 310 | ||||
6 | Spindle bore | mm | 26 | 40 | 56 | 38 | 51/81 | 77 | 89 | |||
7 | Spindle speed | rpm | 160-6000 | 60-6000 | 200-3000 | 80-2000 | 20-1620 | 40-1600 | ||||
8 | Tools |
| Gang tools | Gang tools | Gang tools | 4 station | 4 station | 4 station | ||||
9 | Main motor | KW | 3.7 | 5.5 | 2.2 | 5.5 | 7.5 | 7.5 | ||||
10 | Weight | kg | 750 | 1600 | 1200 | 1800 | 1900 | 2100 | 2150 | 2250 | 2450 | |
11 | Floor space | mm | 1250x1000 | 1650x1300 | 1530x1200 | 2000 x1100 | 2320 x1100 | 2500 x1370 | 3000 x1370 | 2570 x1300 | 3070 x1300 | |
CNC lathe machine range and basic technical parameters(Slant Bed):
No. | Item | Unit | Slant Bed | ||||
CLK6432S | CLK6440/1 | CLK6440A | CLK6140S | CLK6150S | |||
1 | Swing over bed | mm | 320 | 540 | 540 | 540 | 700 |
2 | Swing over slide | mm | 150 | 270 | 270 | 270 | 380 |
3 | Max. workpiece length | mm | 190 | 235 | 235 | 550 | 600 |
4 | Max. process diameter | mm | 320 | 400 | 400 | 400 | 500 |
5 | X travel | mm | 300 | 350 | 245 | 220 | 245 |
6 | Z travel | mm | 200 | 245 | 275 | 660 | 600 |
7 | Spindle bore | mm | 58 | 65 | 65 | 52 | 86 |
8 | Spindle speed | rpm | 6000 | 4000 | 4000 | 4000 | 4000 |
9 | Rapid speed(X/Z) | mm/min | 20000/26000 | 12000/16000 | 18000/18000 | 12000/16000 | 30000/30000 |
10 | Feeding speed | mm/min | 1-5000 | 1-5000 | 1-5000 | 1-5000 | 1-5000 |
11 | Position accuracy | mm | X0.016;Z0.02 | X0.016;Z0.02 | X0.016;Z0.02 | X/Y/Z0.012 | X0.016;Z0.02 |
12 | Re-position accuracy | mm | X0.007;Z0.008 | X0.007;Z0.008 | X0.007;Z0.008 | X/Y/Z0.006 | X0.007;Z0.008 |
13 | Tools | pcs | Gang tools | Gang tools | 10 | 10 | 12 |
14 | Main motor | KW | 5.5 | 7.5 | 7.5 | 7.5 | 18.5-22 |
15 | Weight | kg | 1900 | 3000 | 3000 | 3500 | 7000 |
16 | Overall dimension | mm | 2000x1700 x1850 | 1850x1700 x1800 | 1860x1520 x1850 | 2720x1580 x1870 | 3600x2000 x1950 |

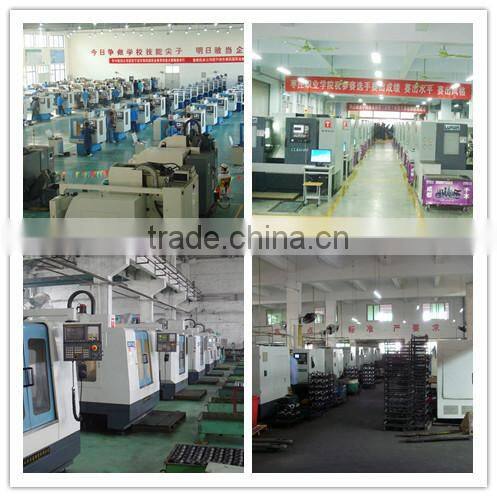

Our machine tools are largely used in customer factories, both domestic and overseas.

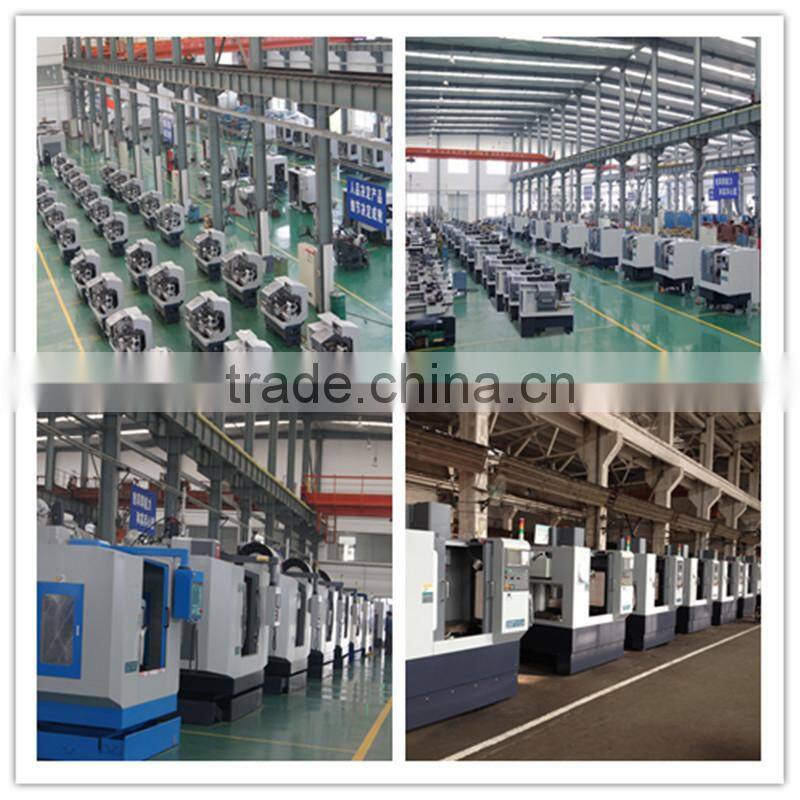

Following pictures show some of our vertical machine center production instance, from 3 axis to 5 axis all included.
