Specifications
A) chuck multicutterB) PLC
C) Max. diameter 200
C) 5-6 lathe tools at a time
D) especially suitable for rough machining

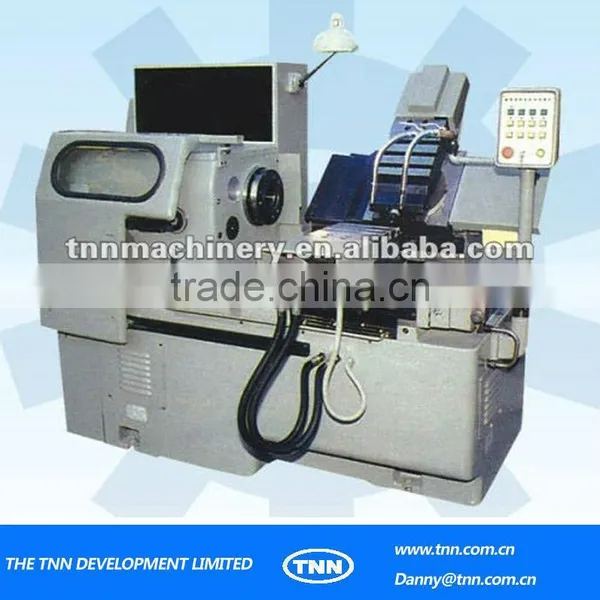

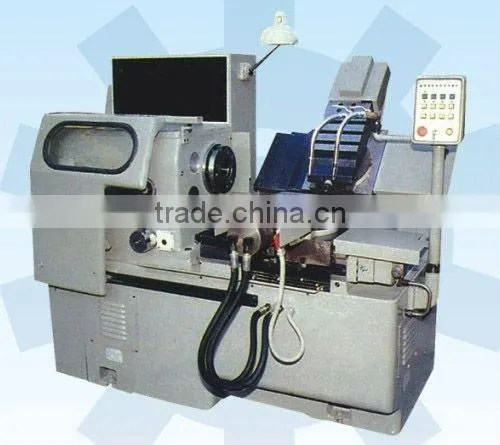

CP7620A Chuck Hydraulic Multicutter Semi Automatic Lathe
A) chuck multicutter
B) PLC
C) Max. diameter 200
C) 5-6 lathe tools at a time
D) especially suitable for rough machining
CP7620A is a insert type step feed program controlled and programmable controlled chuck multicutter lathe. This machine is widely used for various dish parts processing, with high degree of automation, flexible operation simple. This machine is with accuracy stable, safe and reliable operation, long service life. It is widely used in the mechanical industry, bearing, automobile, motor, machine tool, etc.
No. |
Items |
Unit |
Parameters |
Note |
1 |
Max. cutting diameter of knife rest |
mm |
200 |
|
2 |
Max. swing diameter of lathe bed |
mm |
350 |
|
3 |
Max. longitudinal travel of front and back knife rest |
mm |
260 |
|
4 |
Max. transverse travel of front and back knife rest |
mm |
100 |
|
5 |
Swing degree of front knife rest |
Degree |
Perpendicular to the centerline,20°(clockwise) |
|
6 |
Swing degree of back knife rest |
Degree |
50mm from the left side of back knife rest lengthways guide rail, perpendicular to the centerline. 20° (anticlockwise), 45° (clockwise) |
|
7 |
Min. feeds of knife rest |
mm/min |
10 |
|
8 |
Speed of knife rest |
mm/min |
4000(only a cylinder driving) |
|
9 |
Spindle speeds series |
Degree |
8 |
|
10 |
Spindle speed |
r/min |
90/125/185/255/345/500/700/1000 |
|
12 |
Main motor power |
KW |
18.5 |
|
13 |
Main motor revolving speed |
r/min |
730/1450(power frequency 50Hz);860/1750(power frequency 60Hz) |
|
14 |
Working pressure of hydraulic system |
MPa |
1.5—2.5 |
|
15 |
Working pressure of chuck hydro-cylinder |
MPa |
0.5—2.0 |
|
16 |
Fuel tank volume |
L |
158 |
|
17 |
Hydro-cylinder tension of chuck(1MPa) |
KN |
20 |
|
