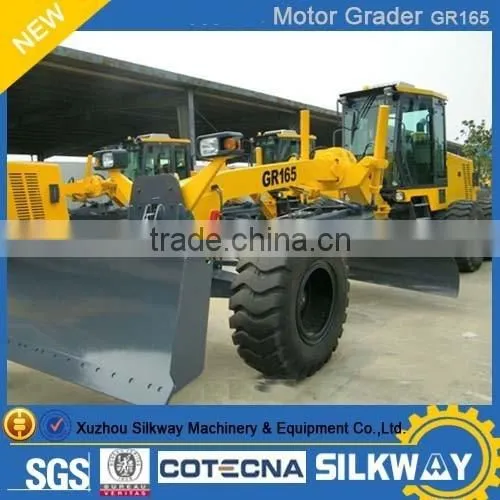

High Quality Road Construction GR165 Chinese Small Motor Grader for sale
Main Description:
Engine Shangchai or Cummins 170HP
Operating weight 15ton
Moldboard width*height 3965*610mm
Dimension(L*W*H)8900*2625*3470mm
Imported hydraulic parts
Optional Parts:
1. Front blade
2. Rear ripper

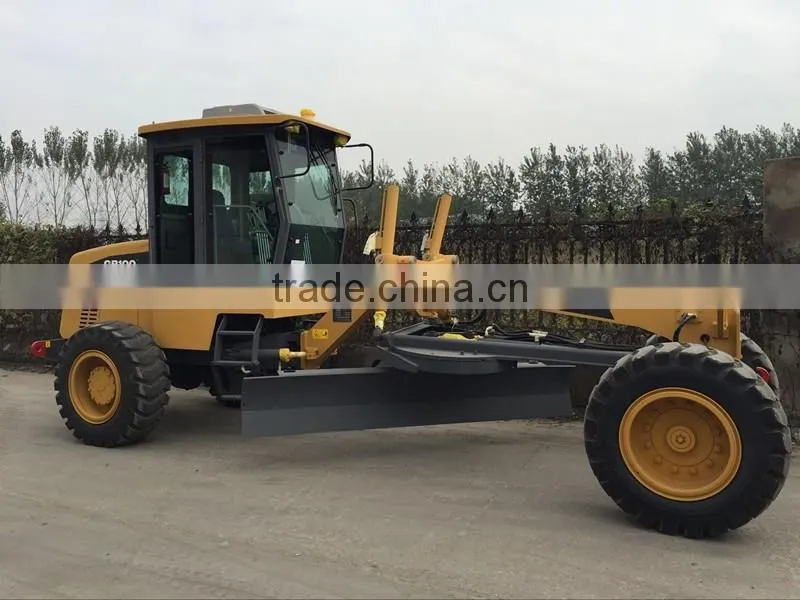

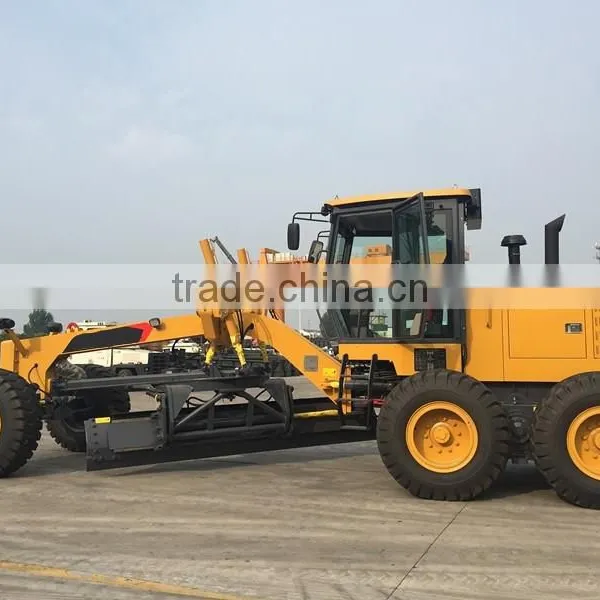

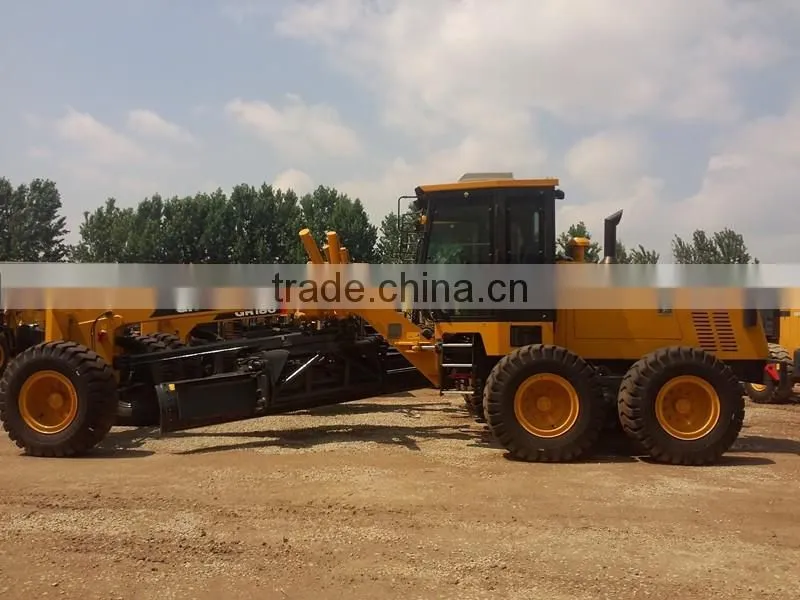

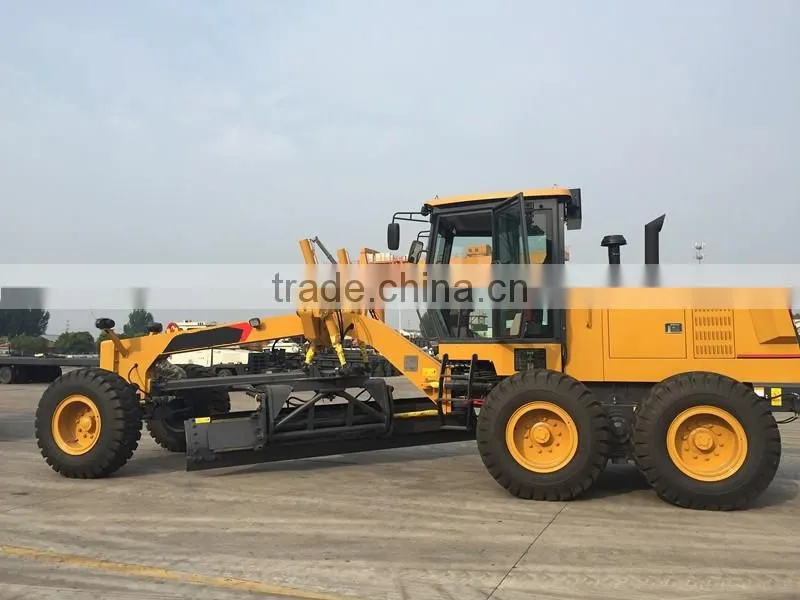

Photo:

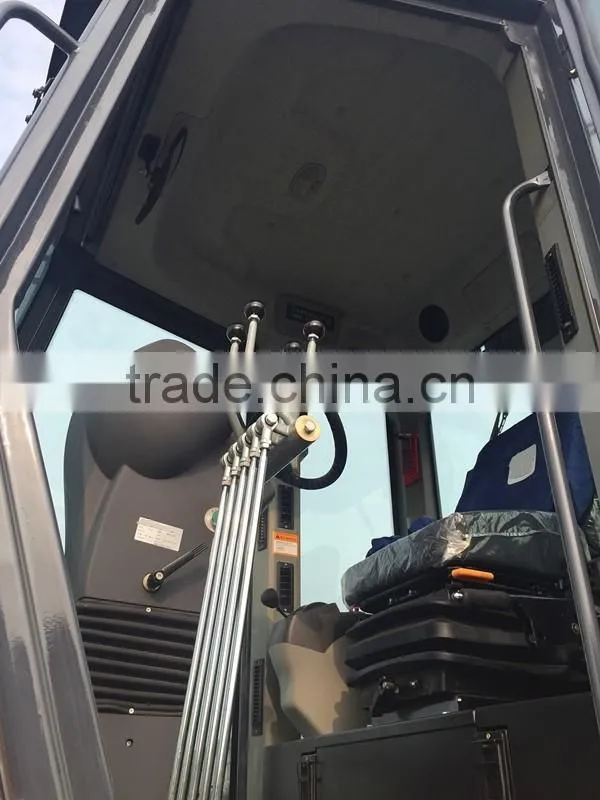

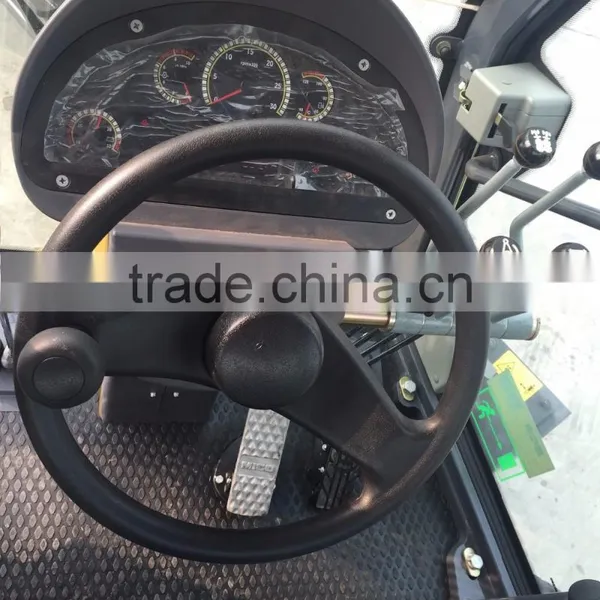

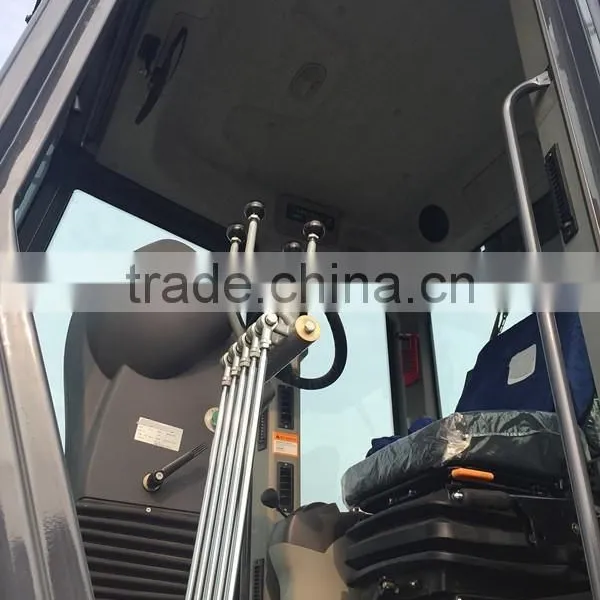

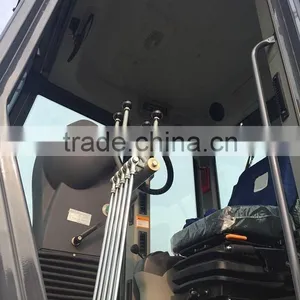

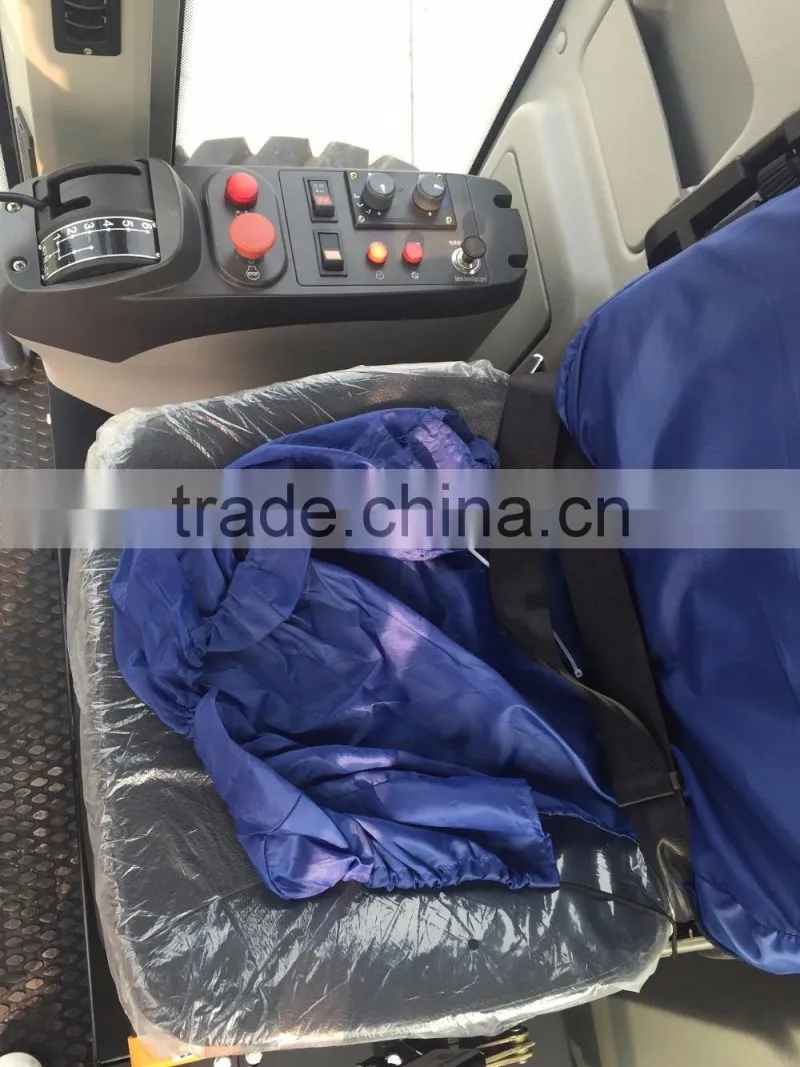

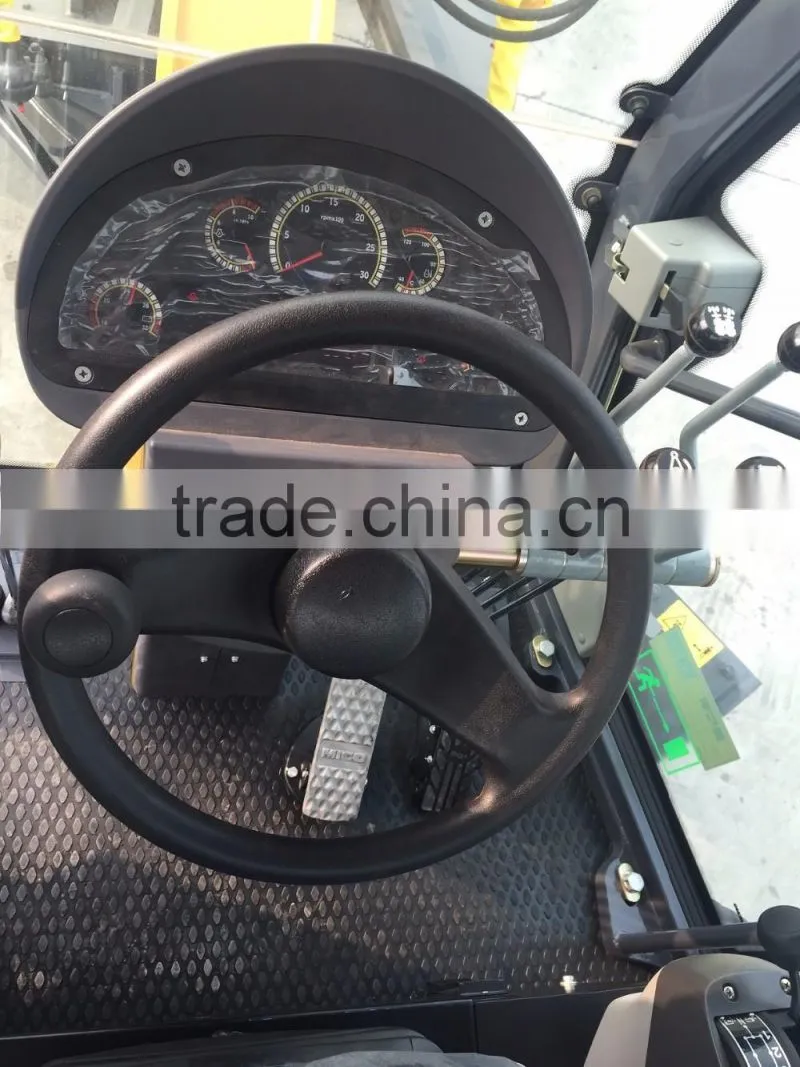

Cabin:
Detail specification of GR165:
Basic specification | |
|---|---|
| Engine model | D6114 |
| Rated power/speed | 125kW/2300rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15000kg |
Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 77KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |

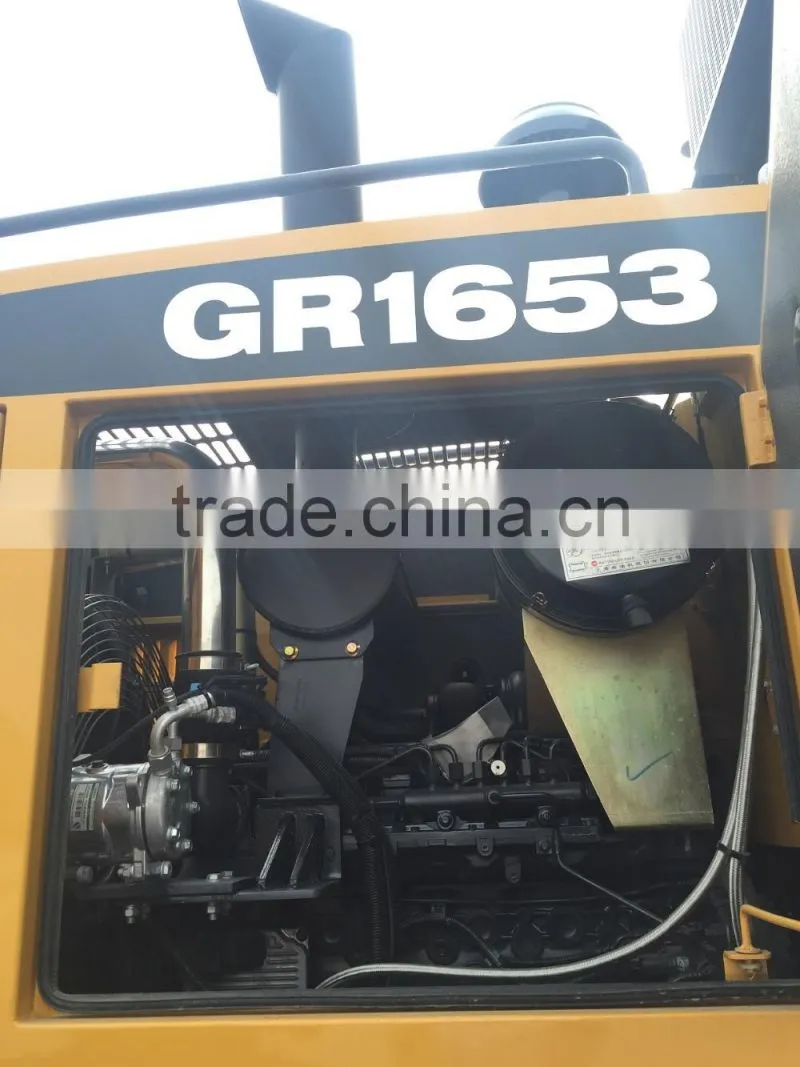

XCMG GR1653 - Upgraded model with Euro 3 engine!

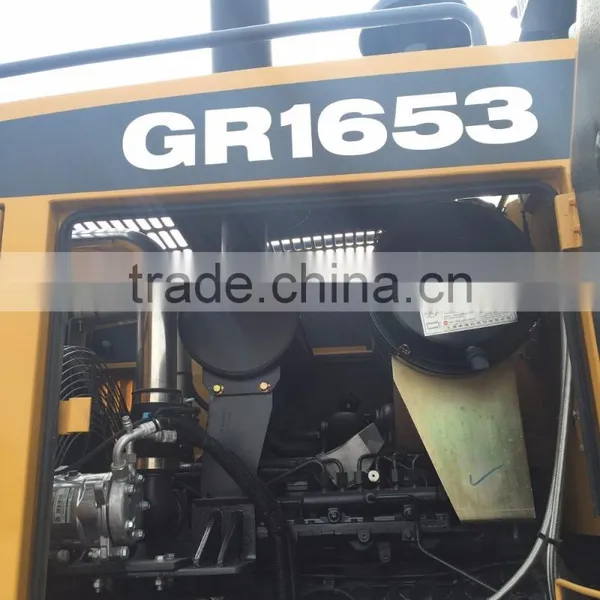

Engine:

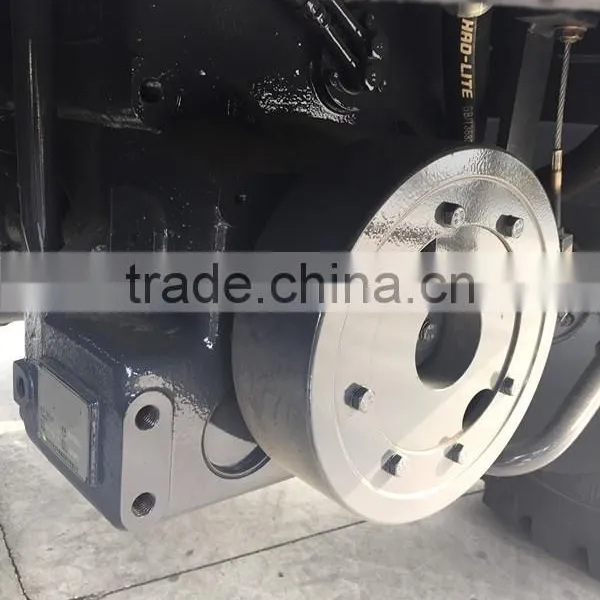

Transmission:
Other models of Small motor grader for Choice:
1. GR100 - 102HP and 7ton

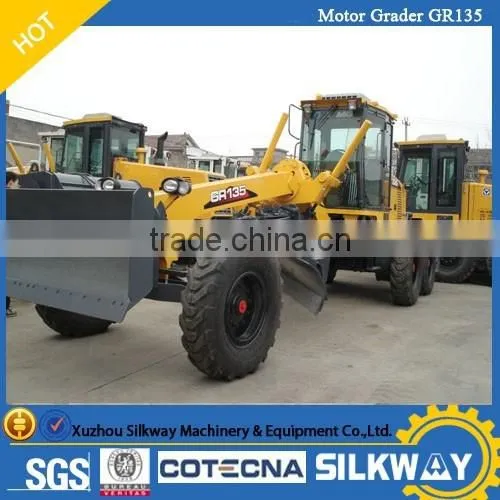

2. GR135 - 130HP and 11.2ton
Our Company Silkway:
WHAT ARE OUR ADVANTAGES ?
1. Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturer /factories.
2. Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
After-sales Service:
Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
Any questions, pls feel free to contact us!
