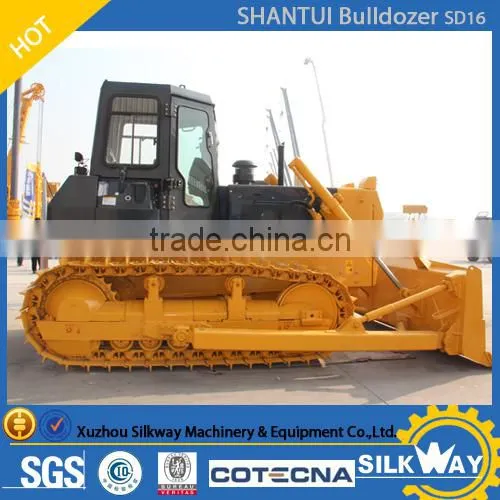

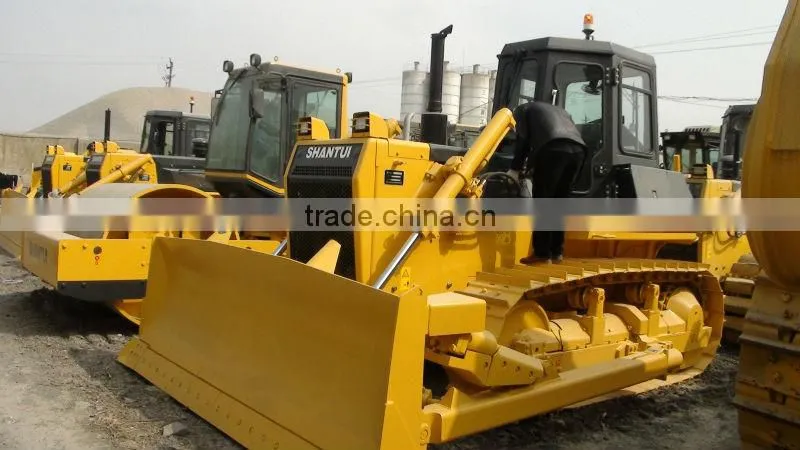

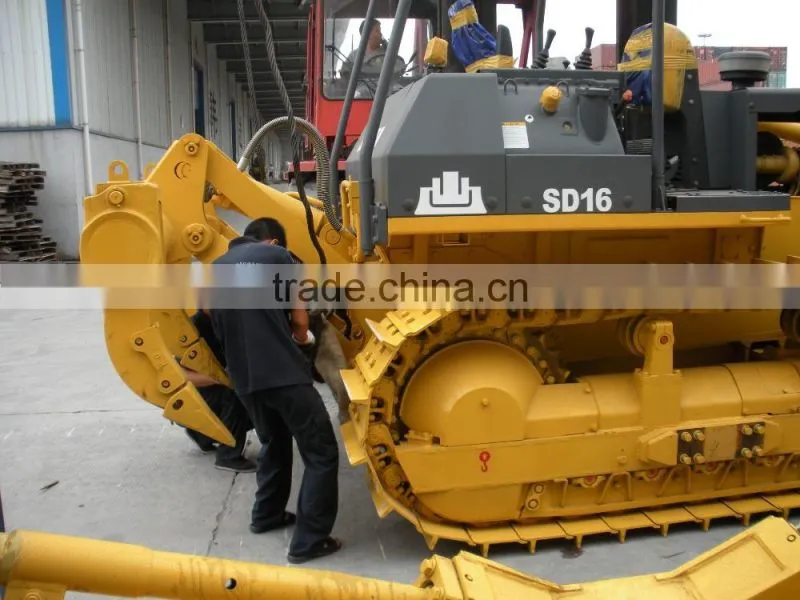

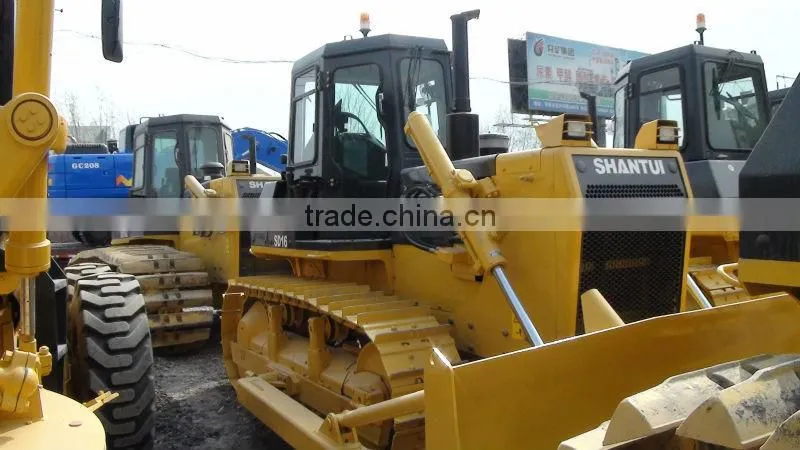

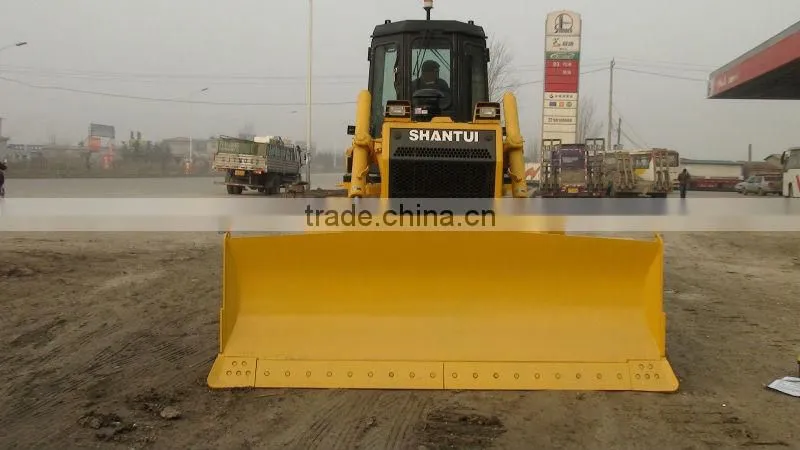

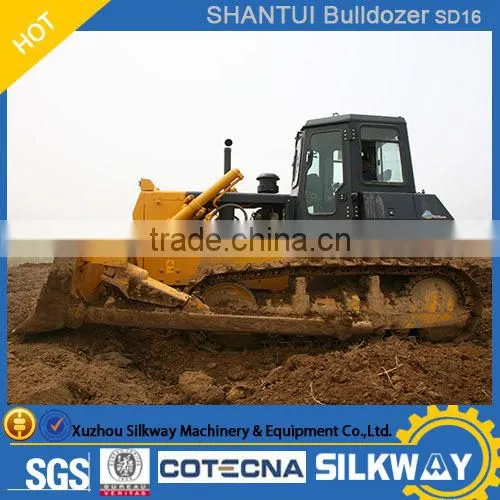

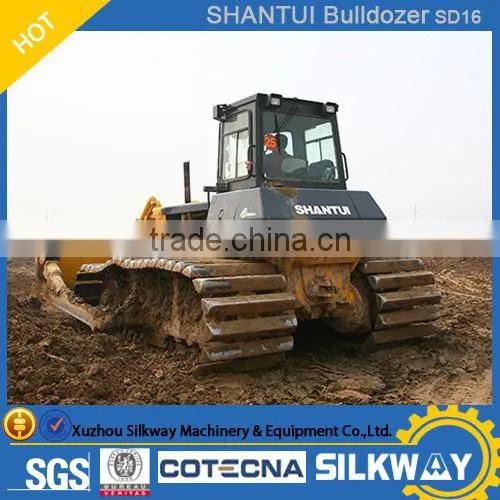

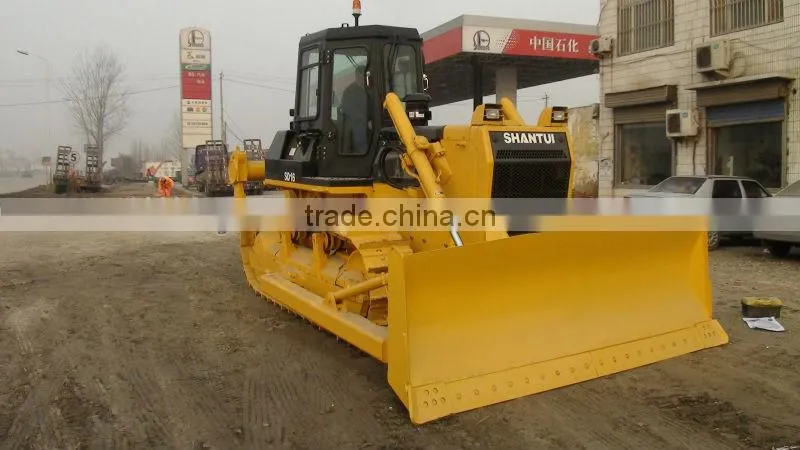

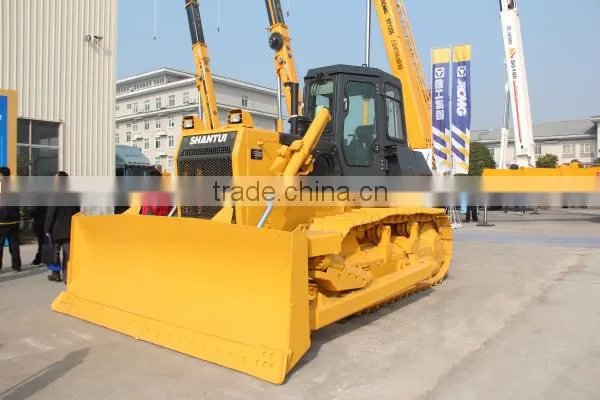

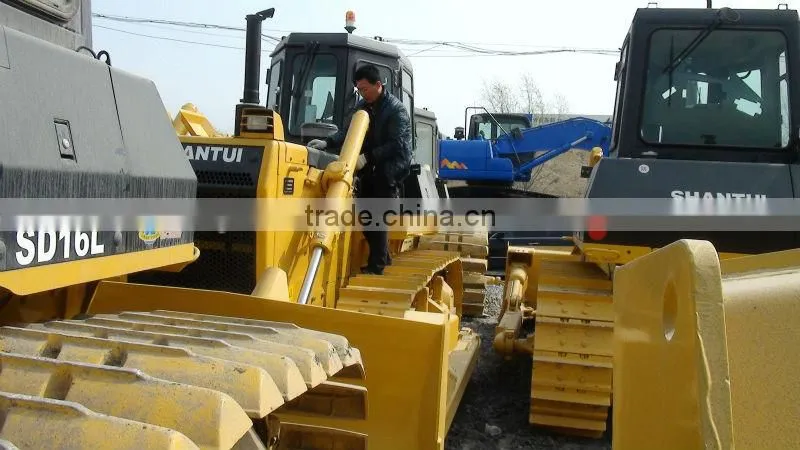

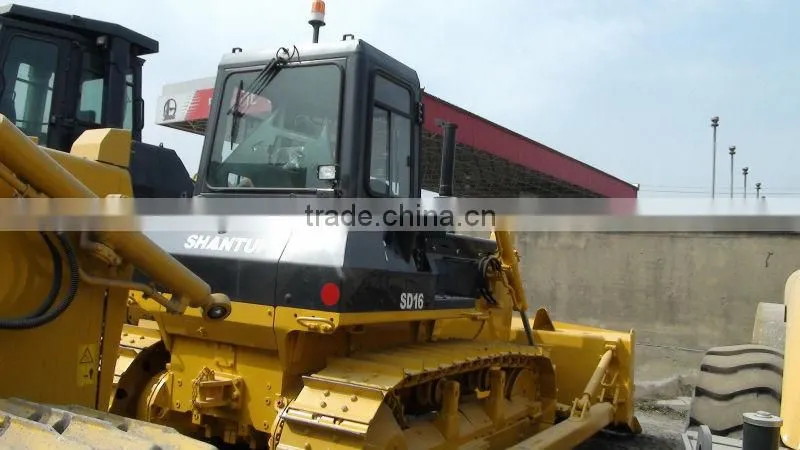

Shantui Bulldozer SD16
Features of Hot Sale SHANTUI Bulldozer SD16:
The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
| ITEM | UNIT | SD16 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 5140×3388×3032 |
| Operating weight (Ripper not included) | t | 17 |
| Engine | - | Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
| Rated power | kW/rpm | 120/1850 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U blade Angle blade |
| Blade width | mm | Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
| Dozing capacity | m3 | Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1095 |
| Ripper type | - | Three-shank ripper |
| Ripping depth of ripper | mm | 572 |
| Lifting height of ripper | mm | 592 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 37 |
| Width of track shoe | mm | 510 |
| Track gauge | mm | 1880 |
| Ground length and ground pressure | mm/MPa | 2430-0.067 |
| Pitch | mm | 203.2 |
| Forward speed | km/h | 0–3.29 |
| 0–5.82 | ||
| 0–9.63 | ||
| Reverse speed | km/h | 0–4.28 |
| 0–7.59 | ||
| 0–12.53 | ||
| Net Engine Output at Rated RPM | - | 148HP(110.5KW) |
SD16 Series:SD16
Rated Power: 120kW@1850rpm
Engine Model: Shangchai SC11CB184G2B1/Weichai WD10G178E25
Operating Weight: 17 Tons
Sales Service
u Being available online 24 hours a day.
u Responding to your e-mails at the first time.
u Providing the best choice according to the customer’s needs.
u Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service
u Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
u Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
01 WHAT ARE OUR ADVANTAGES COMPARED WITH ?
u Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedbacks from clients, our price is more competitive than manufacturer /factories.
u Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
02 WHICH TERMS OF PAYMENT CAN WE ACCEPT ?
u On T/T term, 30% down payment should be paid in advance, and 70% balance should be paid within 5 days before departure goods from factory.
u On L/C term, a 100% irrevocable L/C at sight by our acceptable bank.
03 HOW LONG WILL OUR PRICE BE VALID ?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remain s stable through the year. We only adjust our price based on two situations:
u The rate of USD /RMB varies significantly according to the international currency exchange rates.
u Manufacturers/factories adjusted to the machine price, because of the increasing of labor cost and raw material cost.
04 WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship construction machinery by various transportation tools.

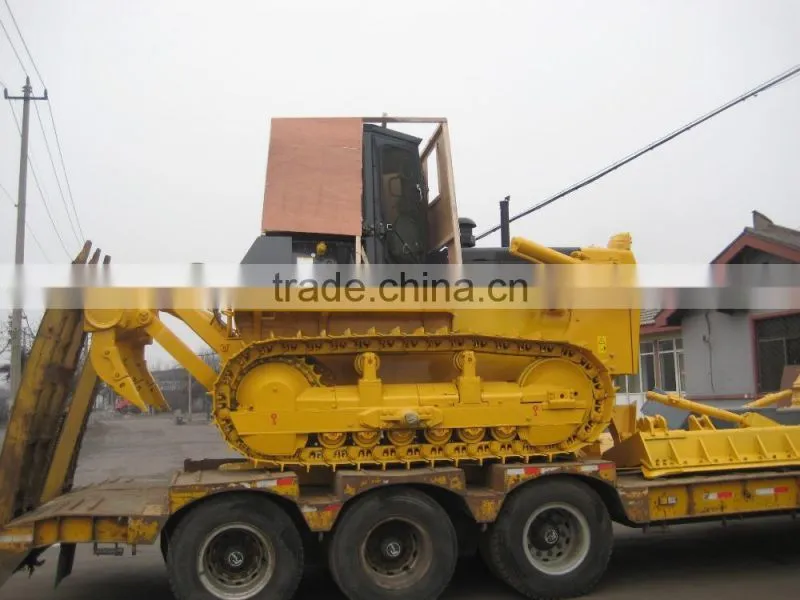

u For 90% of our shipment, we will go by sea, for other machinery, like truck crane, big bulldozer and road roller, either by RO/RO and Bulk shipment.
u For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, etc., we can ship construction machinery by road or railway.
u For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
05 HOW LONG IS OUR GUARANTEE TIME?
u 2000 working hours or one year from the date of B/L, which comes first.
u Engineers available to service machinery overseas.
Silkway is very famous construction machinery exporter in China and have exported products to more than 60 countries. Our main products are as follows: XCMG wheel loader, road roller, motor grader, excavator, truck crane and SHANTUI bulldozer etc. We always guarantee official products, quick after-sale service, and the most competitive price.
Shantui Bulldozer SD16
