Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine

Xuzhou Silkway Machinery & Equipment Co., Ltd.

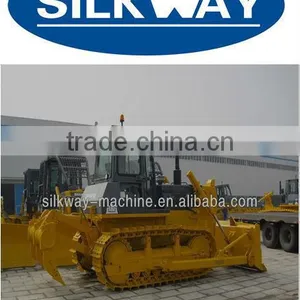

Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine thumbnail-1
Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine photo-1
US$ 30,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHANTUI
Model Number:
SD13
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name SHANTUI
Model Number SD13
Condition New
Moving Type Crawler Bulldozer
Machine Weight 13700kg
Dimension(Long * Breadth * High) 5840*3185*2900mm
After-sales Service Provided Engineers available to service machinery overseas

Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine



Performance Parameter

Engine
TypeSSHANGCHAI D6114ZG4B(water cooled, in-line, direct injection and turbo charger)
Rated revolution1900rpm
Rated power95.5kw
Cylinder number-bore x stroke6-114 x 135
Piston displacement8.27L
Rated fuel consumption<=228g/kW.h
Max. Torque674.m/1300rpm
Undercarriage system
TypeSwing type of sprayed beam, suspended structure of equalizer bar
Carry rollers2 each side
Track rollers6 each side
Track typeSingle teeth. Dry type
Width of track shoes460mm
Pitch190mm
Hydraulic system
Max. Pressure14MPa
Pump typeGear pump
Discharge180L/min lated revelation
Working cylinder x number90mm x2
Power transmitting system
Torque converter3-element, 1 stage, 1 phase
TransmissionForced connected, planetary gear
Main driveSpiral bevel gear, splash lubrication
Steering clutchWet, Multi-disc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake
Steering brakeWet, floating, band type foot stepping brake with hydraulic helping
Final drive2-stage speed reduction of spur gear, splash lubrication







Blade StraightAngle
Min. ground clearancemm320320
Operating weightkg1400014500
Ground pressureMpa0.0640.064
Gradeability%3030
Track gaugemm18801880
Dozing capacitym33.73.4
Blade heightmm1090915
Blade widthmm31853745
Max. drop below groundmm590590
Max. tilt adjustmentmm400400





Travel speed
Gear1st2nd3rd
Forward(km/h)3.25.99.8
Reverse(km/h)3.97.111.9

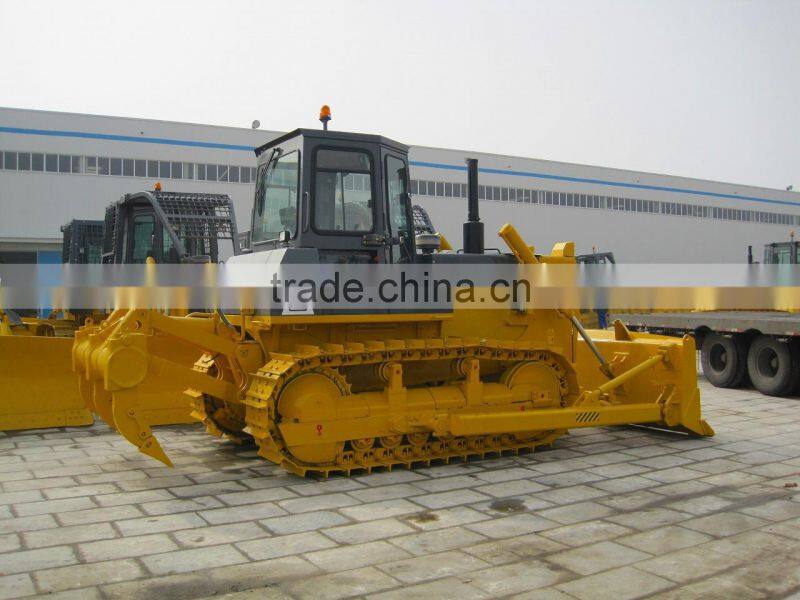

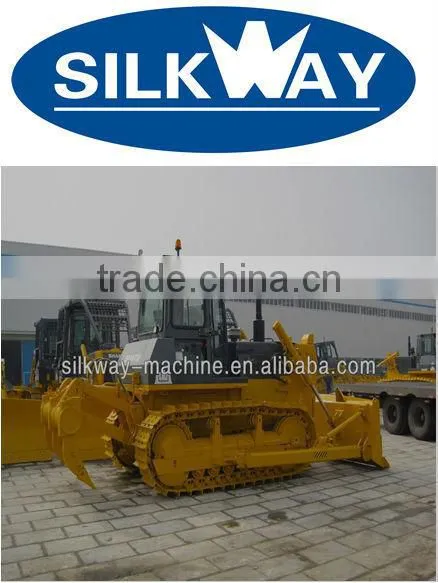

 Product Photos

Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai EngineHot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine

Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine



Packaging&Shipping

Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine



Our Services

Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine

Company Information

Silkway is located in the most famous construction machinery city Xuzhou, China, where XCMG located. Our company has been specializing in construction machinery for many years, and we have abundant experience and resources for pre-sale, sale and after sale service. As a professional construction machinery exporter, our enterprise philosophy is " Credbility, Integrity, Perfection ". Our products have been exported to over 80 different countries, including Australia, U.K., Poland, Netherland, Italy, Russia, India, main countries of Africa, America, Central-Asia, Southeast Asia, Middle East etc.



XUZHOU SILKWAY MACHINERY&EQUIPMENT CO.,LTD

Add:F17, Hengmao Business Center, No6, Xi'an Road(N), Xuzhou City, Jiangsu Province, P,R.China



 Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine
