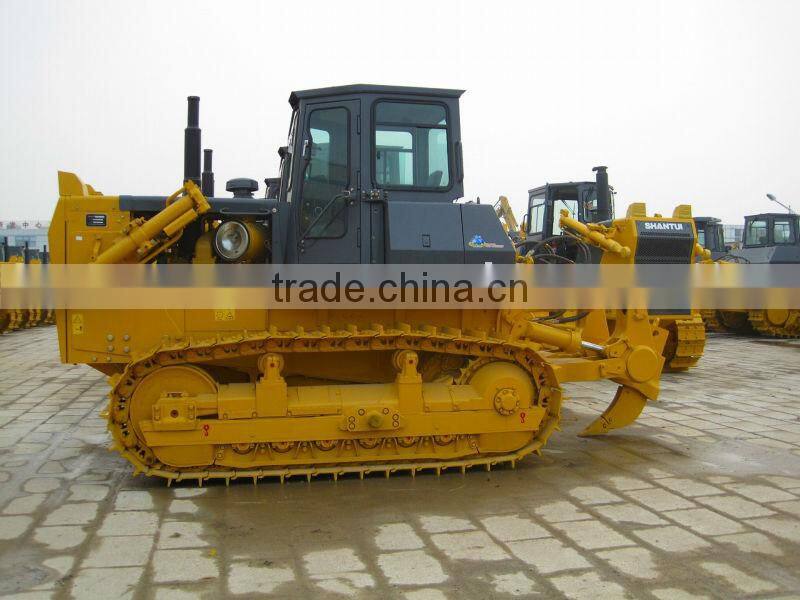

High Performance SHANTUI 220hp Bulldozer SD22 With Cummins Engine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHANTUI
Model Number:
SD22
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Model SHANTUI 420hp Bulldozer SD42-3 With Competitive PriceUS$ 100,000 - 150,000MOQ: 1 Unit -
China Top Brand Dozer Shantui SD16NegotiableMOQ: 1 Unit
-
Hot Selling SHANTUI Small Crawler Bulldozer SD16 With High EfficiencyNegotiableMOQ: 1 Unit
-
2014 HOT SELL SHANTUI CRAWLER BULLZODER SD16 WITH 3 TOOTH RIPPERNegotiableMOQ: 1 Unit
-
CHINA TOP BRAND SHANTUI CRAWLER BULLZODER SD16 KOMATSU TECHNOLOGYNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
SHANTUI
Model Number
SD22
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
23500kg
Dimension(Long * Breadth * High)
6805*3725*3395mm
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Engine: NT855-C280 (S10)Cummins2. Width of track shoes: 560mm
3. Dimension: 6805*3725*3395mm
4. Professional services
Performance Parameter
| Engine | |
| Type | NT855-C280 (S10)Cummins in-line,water cooled 4-cycle,overhead valve direct injection,turbocharged diesel |
| Rated revolution | 1800r/min |
| Rated power | 162kw |
| Cylinder number-bore x stroke | 6-139.7mm×152.4 |
| Piston displacement | 14010ml |
| Min. fuel consumption | 205g/KW.h |
| Max. Torque | 1030NM/1250rpm |
| Undercarriage system | |
| Type | Swing type of sprayed beam,suspended structure of equalizer bar |
| Carry rollers | 2 each side |
| Track rollers | 6/each side(single flange4,double flange2)(E-7/each side) |
| Track type | single-tooth shoes(38/each side) |
| Width of track shoes | 560mm |
| Pitch | 216mm |
| Hydraulic system | |
| Max. Pressure | 14MPa |
| Pump type | Gear pump |
| Discharge | 262L / min |
| Working cylinder x number | 120mm×2 |
| Power transmitting system | |
| Torque converter | 3-element, 1 stage, 1 phase |
| Transmission | Planetary gear,multi-disc clutch,hydraulically connected,forced lubrication |
| Main drive | Spiral bevel gear,splash lubrication,single-stage speed reduction |
| Steering clutch | Wet,multi-disc,spring loaded,hydraulically separated, hydraulic control |
| Steering brake | Wet,floating,direct on-off hydraulic inter-linking operation |
| Final drive | 2-stage speed reduction of spur gear,splash lubrication |
| Blade | Straight | Angle | Ublade | R-blade | Coal blade | |
| Min. ground clearance | mm | 405 | 405 | 405 | 513 | 405 |
| Ground pressure | Mpa | 0.077 | 0.077 | 0.078 | 0.041 | 0.078 |
| Min.turning radius | m | 3.3 | 3.3 | 3.3 | 3.8 | 3.3 |
| Gradeability | % | 30 | 30 | 30 | 30 | 30 |
| Track gauge | mm | 2000 | 2000 | 2000 | 2250 | 2000 |
| Dozing capacity | m3 | 6.4 | 4.7 | 7.5 | 10.2 | 9 |
| Theoretical Efficiency | m3/h | 330 | 245 | 365 | 413 | 450 |
| Blade width | mm | 3725 | 4365 | 3800 | 4160 | 4200 |
| Blade height | mm | 1315 | 1055 | 1343 | 1870 | 1350 |
| Max. drop below ground | mm | 540 | 535 | 540 | 540 | 540 |
| Max. tilt adjustment | mm | >755 | >755 | >755 | >755 | >755 |

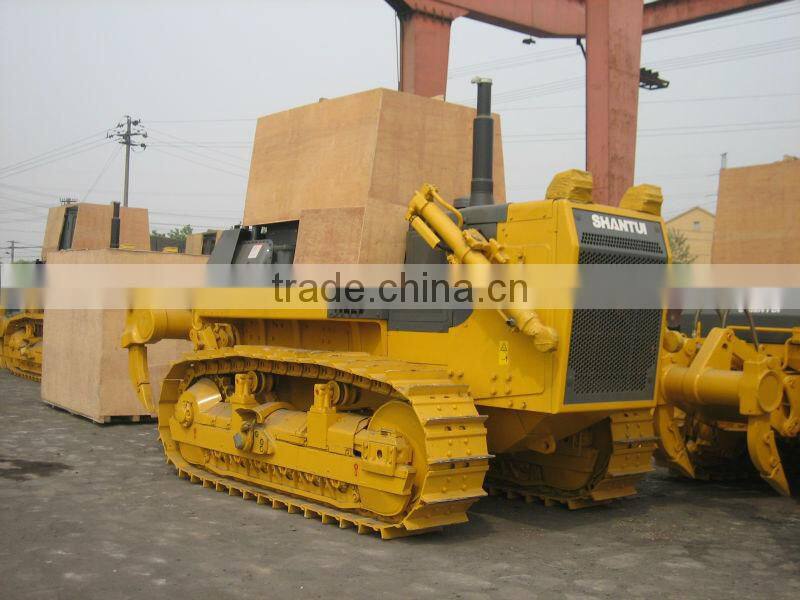

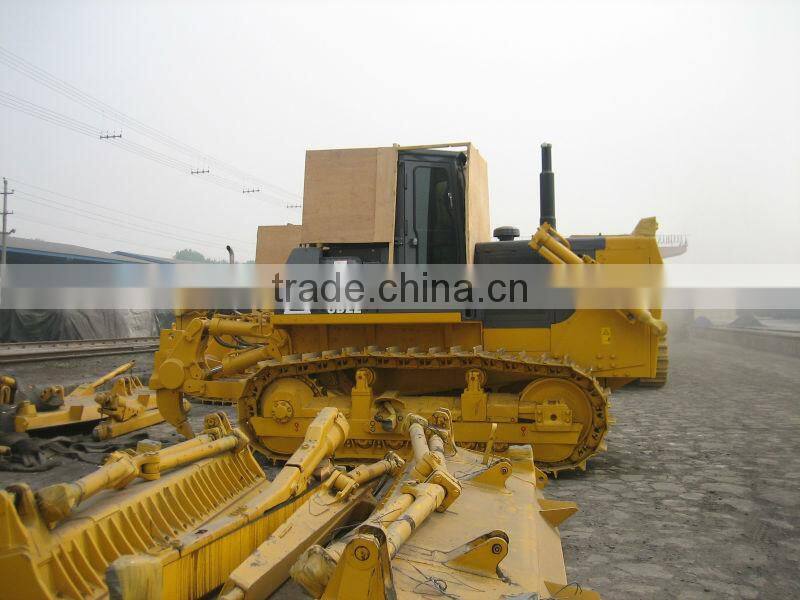

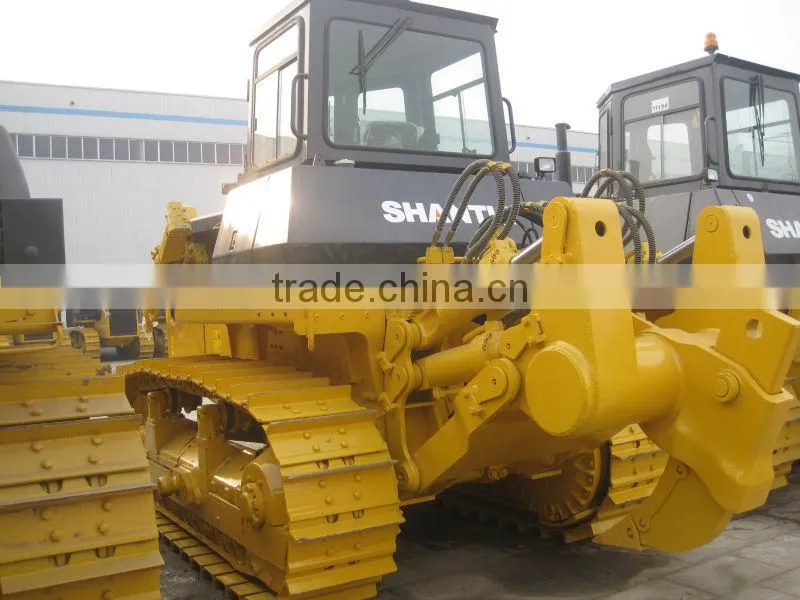

Product Photos

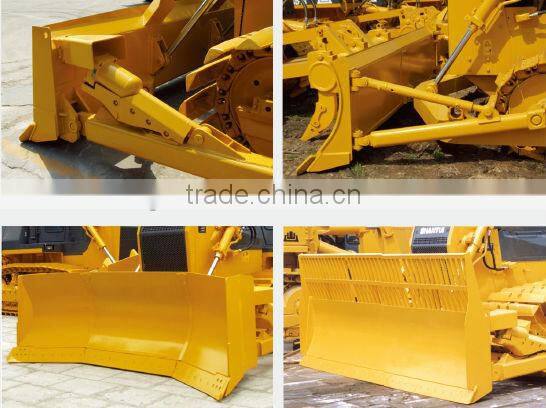

Blade Type
