Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Bulldozer > 2017 320hp SHANTUI SD32 Bulldozer With Cumins Engine
US$ 120,000 - 140,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHANTUI
Model Number:
SD32
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bulldozer Shantui SD22FUS$ 80,000 - 120,000MOQ: 1 Unit -
2017 SHANTUI Bulldozer SD16L Shantui SD16L Hydraulic Extra-Swamp Bulldozer PriceUS$ 60,000 - 90,000MOQ: 1 Unit
-
2017 SHANTUI Bulldozer SD16 With Triple Shanks RipperUS$ 50,000 - 80,000MOQ: 1 Unit
-
2017 New Shantui SD16tUS$ 11,000 - 92,000MOQ: 1 Unit
-
2017 Hot Sale 320hp SHANTUI Bulldozer SD32 And Shantui Bulldozer Spare PartsUS$ 90,000 - 140,000MOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
SHANTUI
Model Number
SD32
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
37200kg
Dimension(Long * Breadth * High)
6880*4130*3725mm
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Performance Parameter
| Engine | |
| Type | CUMMINS NTA855-C360S10 Turbochayged,intercooled,in-line,4-cycle |
| Rated revolution | 2000r/min |
| Rated power | 235kw(320HP) |
| Cylinder number-bore x stroke | 6-139.7x152.4mm |
| Piston displacement | 14010ml |
| Min. fuel consumption | 245g/kw.h(180g/Hp.h) |
| Max. Torque | (1440N.m/1400r/min) |
| Undercarriage system | |
| Type | Swing type of sprayed beam, suspended structure of equalizer bar |
| Carry rollers | 2 each side |
| Track rollers | 7 each side |
| Hydraulic system | |
| Max. Pressure | 14MPa |
| Pump type | Gear pump |
| Discharge | 335.5L/min |
| Hydraulic tank | Control valve and oil fi lter inner-installed type |
| Power transmitting system | |
| Torque converter | 3-element, 1 stage, 1 phase |
| Transmission | planetary gear,multiple-disc clutch, hydraulically connected forced lubrication by gear pump |
| Main drive | spiral bevel gear,splash lubrication |
| Steering clutch | wet type,multiple-disc,spring loaded,hydraulically separated, hand and hydraulic control operated |
| Steering brake | wet type,band brake,foot operated (with hydraulic booster,interconnected with clutch) |
| Final drive | 2-stage spur gear,speed reduction,splash lubrication |
| Travel speed | |||
| Gear | 1st | 2nd | 3rd |
| Forward(km/h) | 0~3.6 | 0~6.6 | 0~11.5 |
| Reverse(km/h) | 0~4.4 | 0~7.8 | 0~13.5 |

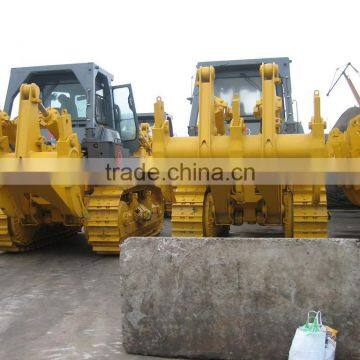

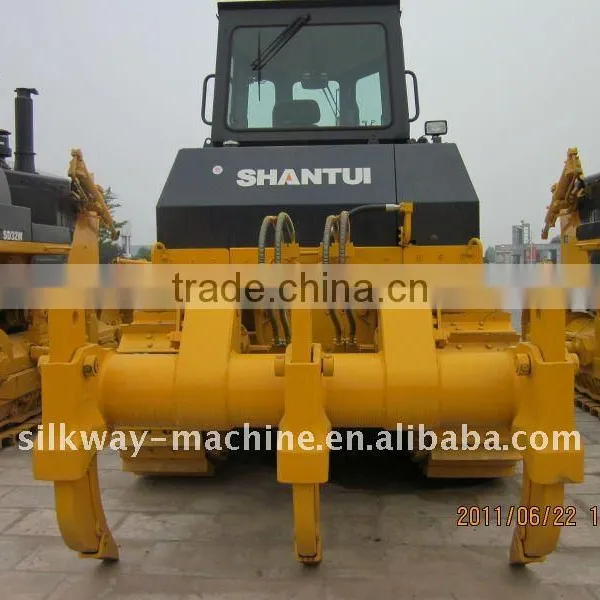

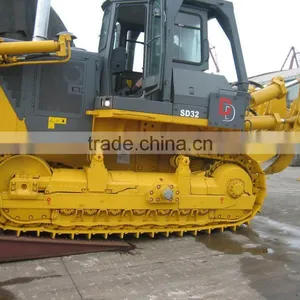

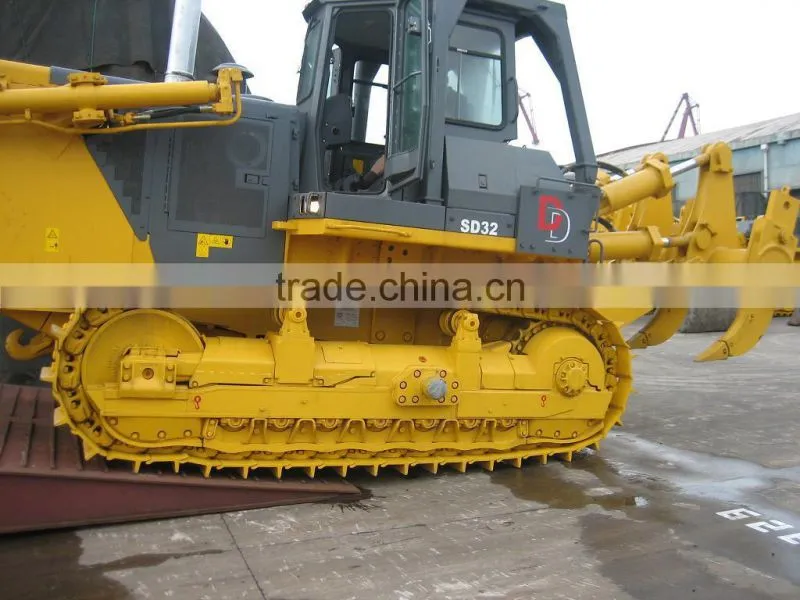

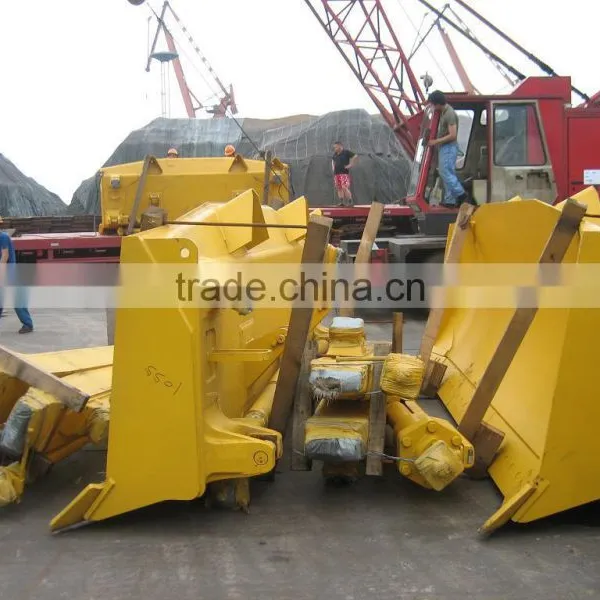

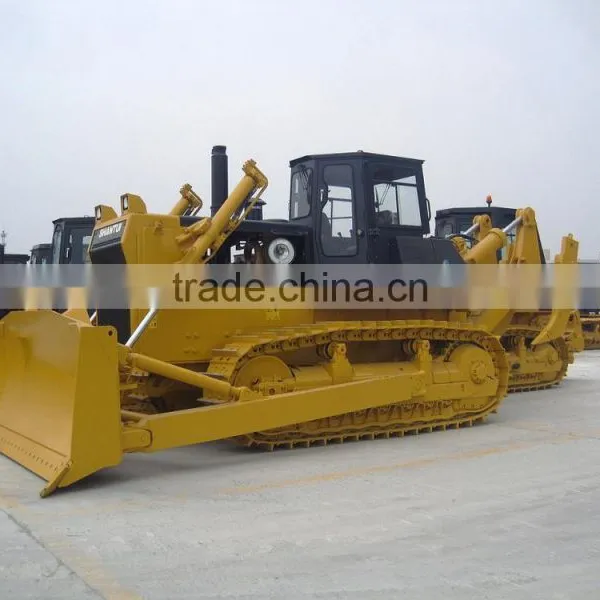

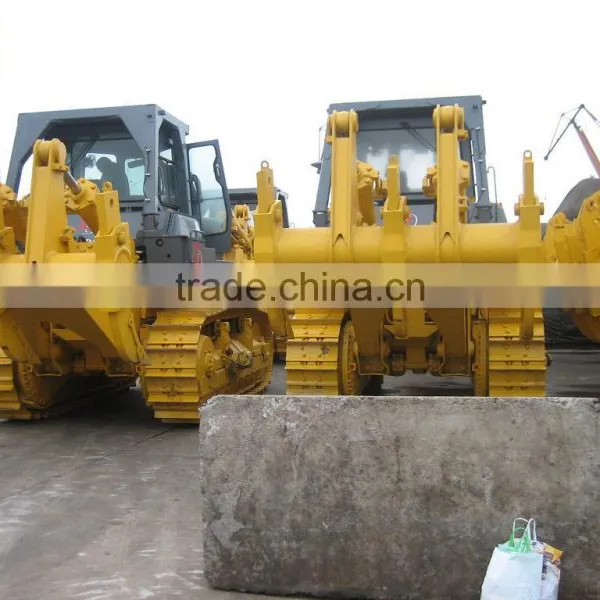

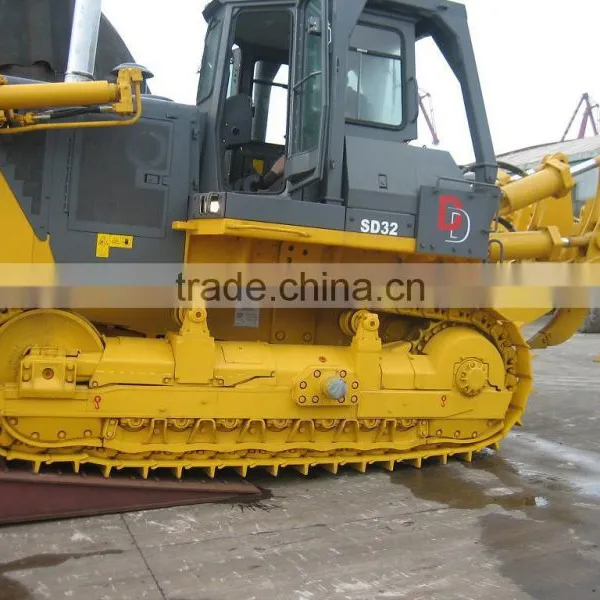

Product Photos

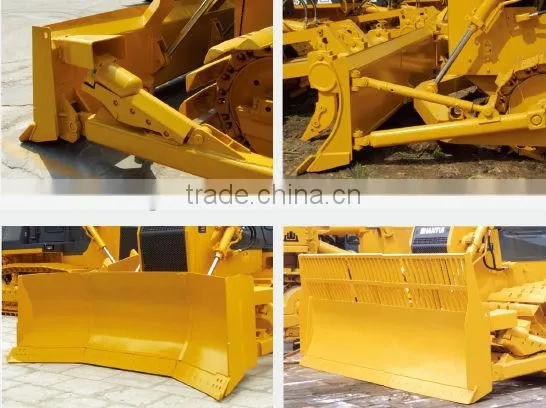

Blade Type

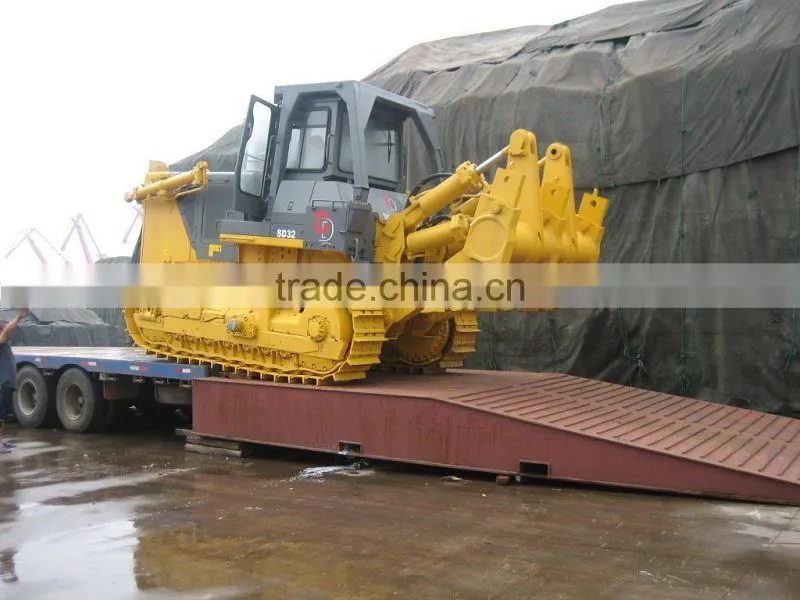

Packaging & Shipping
Our Services
Company Information
Company Information
Silkway is located in the most famous construction machinery city Xuzhou, China, where XCMG located. Our company has been specializing in construction machinery for many years, and we have abundant experience and resources for pre-sale, sale and after sale service. As a professional construction machinery exporter, our enterprise philosophy is " Credbility, Integrity, Perfection ". Our products have been exported to over 80 different countries, including Australia, U.K., Poland, Netherland, Italy, Russia, India, main countries of Africa, America, Central-Asia, Southeast Asia, Middle East etc.
XUZHOU SILKWAY MACHINERY&EQUIPMENT CO.,LTD
Add:F17, Hengmao Business Center, No6, Xi'an Road(N), Xuzhou City, Jiangsu Province, P,R.China
