2017 SHANTUI Bulldozer SD16 With Triple Shanks Ripper
US$ 50,000 - 80,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHANTUI
Model Number:
SD16
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2017 New Shantui SD16tUS$ 11,000 - 92,000MOQ: 1 Unit -
2017 Hot Sale 320hp SHANTUI Bulldozer SD32 And Shantui Bulldozer Spare PartsUS$ 90,000 - 140,000MOQ: 1 Unit
-
2017 Hot Sell China Popular Brand Shantui BulldozerUS$ 48,000 - 55,000MOQ: 1 Unit
-
2017 Hot Sale 520hp SHANTUI Bulldozer SD52-5 And Shantui Bulldozer Spare PartsUS$ 90,000 - 140,000MOQ: 1 Unit
-
2017 SHANTUI420hp Bulldozer SD42-3 With Single Shank RipperUS$ 70,000 - 140,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
SHANTUI
Model Number
SD16
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
17000kg
Dimension(Long * Breadth * High)
6366*3388*3100mm
After-sales Service Provided
Engineers available to service machinery overseas
SHANTUI 160HP Bulldozer SD16 With Good Quality
| Engine | |
| Type | Shangchai C6121ZG70B/STEYR WD10G175E15(water cooled, in-line, 4-stroke, injection direct) |
| Rated revolution | 1850r/min |
| Rated power | 120kw |
| Cylinder number-bore x stroke | 6-126×130mm |
| Piston displacement | 9.726L |
| Min. fuel consumption | 214g/KW.h |
| Max. Torque | 764N |
| Undercarriage system | |
| Type | Sprayed beam,suspended structure of equalizer |
| Carry rollers | 2 each side |
| Track rollers | 6 each side |
| Track type | Assembled,single-tooth |
| Width of track shoes | 510mm |
| Pitch | 203.2mm |
| Hydraulic system | |
| Max. Pressure | 14MPa |
| Pump type | Gear pump |
| Discharge | 243L / min |
| Working cylinder x number | 110mm×2 |
| Power transmitting system | |
| Torque converter | 3-element, 1 stage, 1 phase |
| Transmission | Planetary gear type,power-shift,forced lubrication |
| Main drive | Spiral bevel gear,single-stage speed reduction,splash lubrication |
| Steering clutch | Wet,multi-disc,spring loaded,hand hydraulically separated, inter-Iinking with steering brake |
| Steering brake | Wet,floating band structure,foot brake with hydraulic booster |
| Final drive | Two-stage speed reduction of spur gear,splash lubrication |
| Blade | Straight | Angle | Coal blade | R-blade | |
| Min. ground clearance | mm | 400 | 400 | 400 | 495 |
| Ground pressure | Mpa | 0.067 | 0.067 | 0.067 | 0.027 |
| Min.turning radius | m | 4.7 | 4.5 | 4.9 | 3.066 |
| Gradeability | % | 30 | 30 | 30 | 30 |
| Track gauge | mm | 1880 | 1880 | 1880 | 2300 |
| Dozing capacity | m3 | 4.5 | 4.4 | 5 | 8.2 |
| Theoretical Efficiency | m3/h | 225 | 225 | 250 | 250 |
| Blade width | mm | 3388 | 3970 | 3556 | 4150 |
| Blade height | mm | 1149 | 1090 | 1120 | 1578 |
| Max. drop below ground | mm | 540 | 560 | 530 | 485 |
| Max. tilt adjustment | mm | 400 | 400 | 400 | 1005 |
| Carrier width | mm | 510 | 510 | 560 | 610/1100 |
| Travel speed | |||
| Gear | 1st | 2nd | 3rd |
| Forward(km/h) | 0-3.29 | 0-5.28 | 0-9.63 |
| Reverse(km/h) | 0-4.28 | 0-4.28 | 0-12.53 |

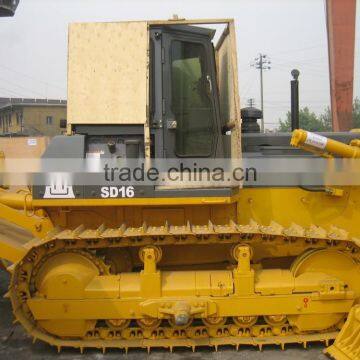

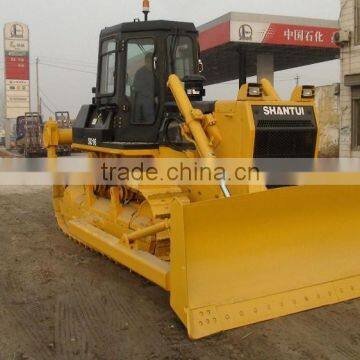

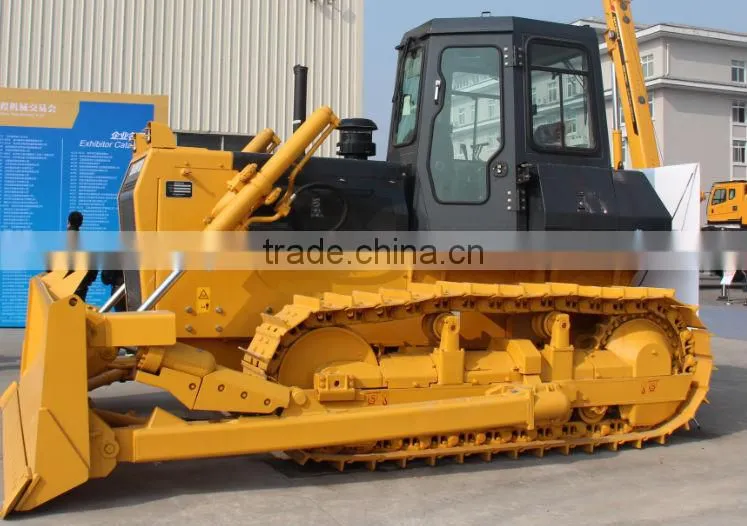

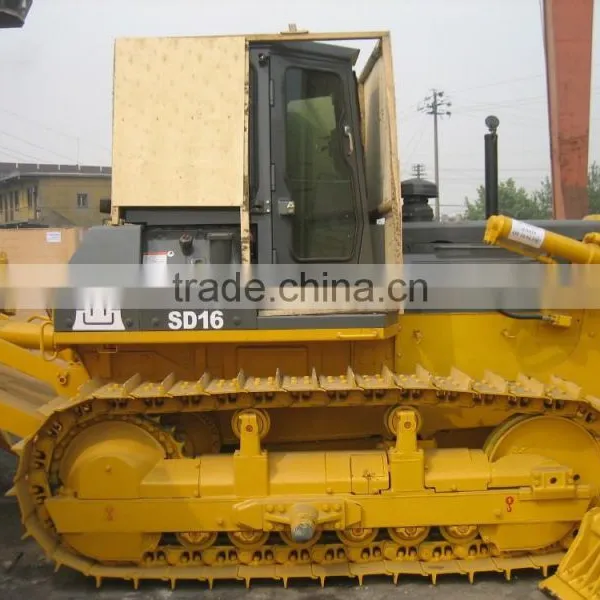

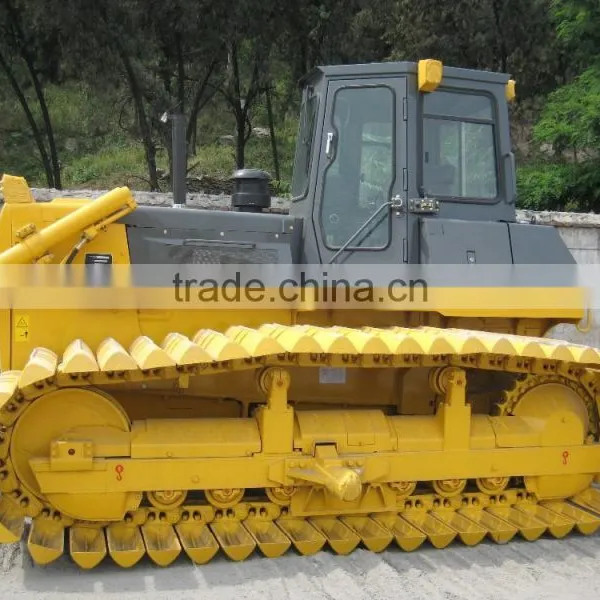

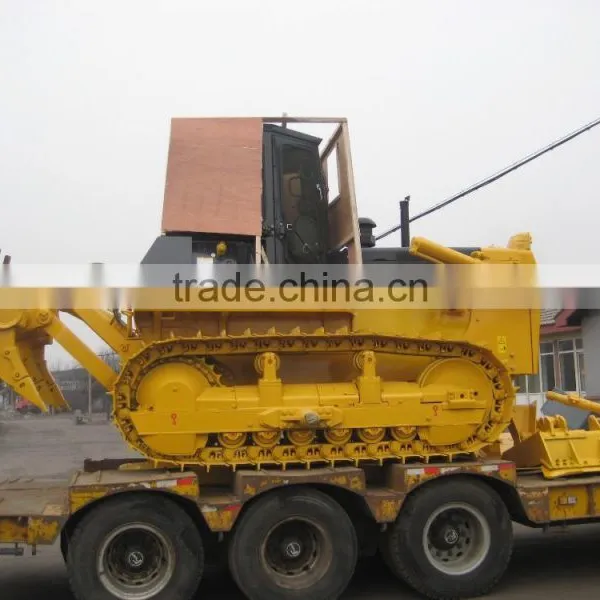

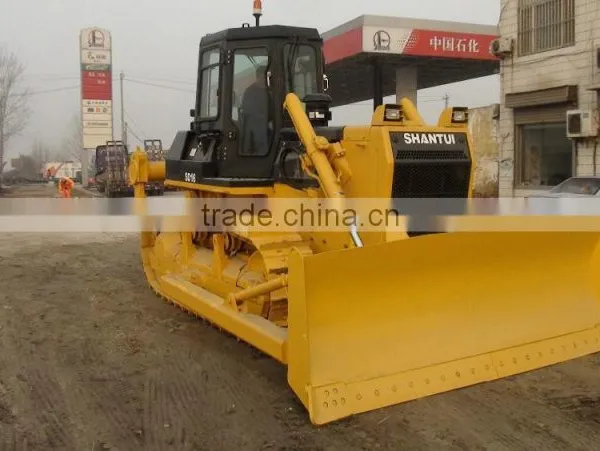

Product Photos

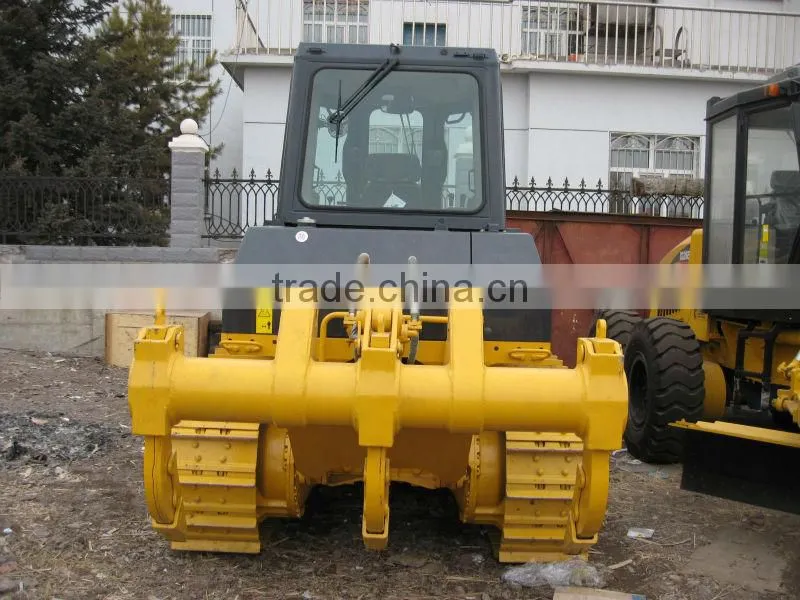

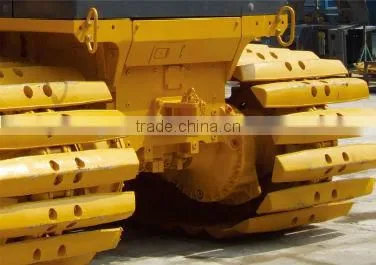

Draw Bar

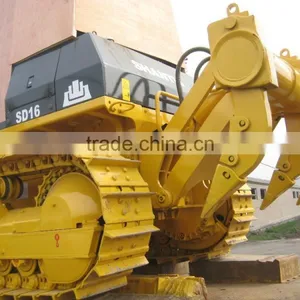

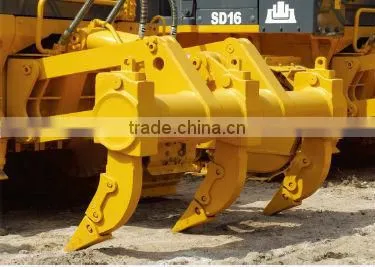

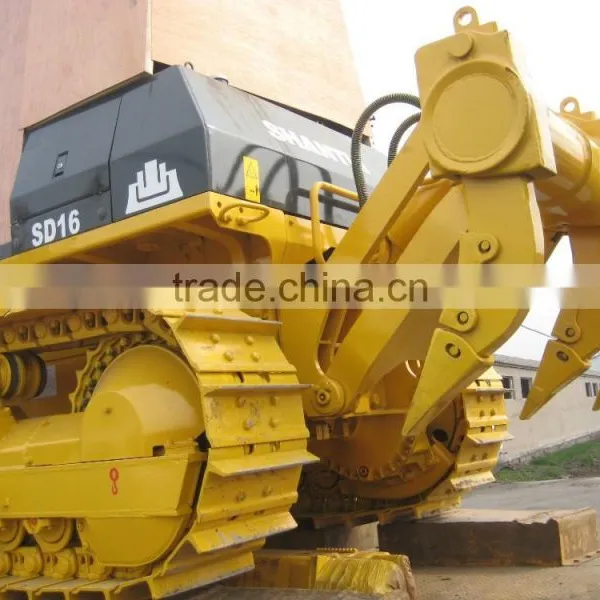

3-SHANK RIPPER

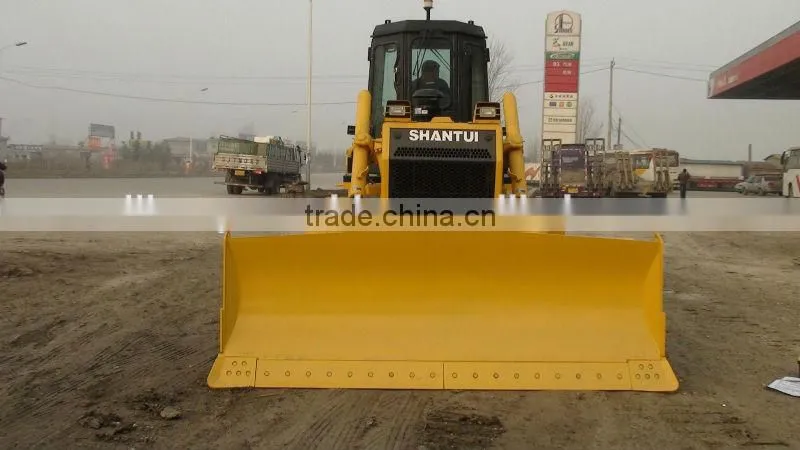

Blade Type
