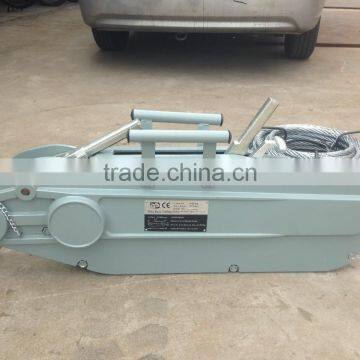

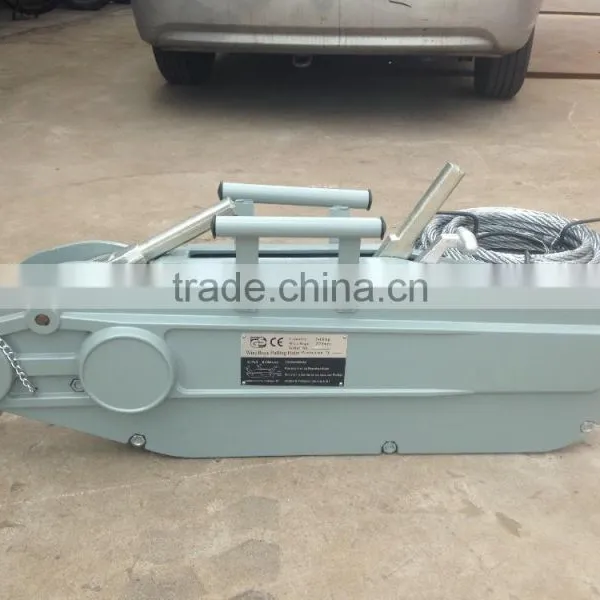

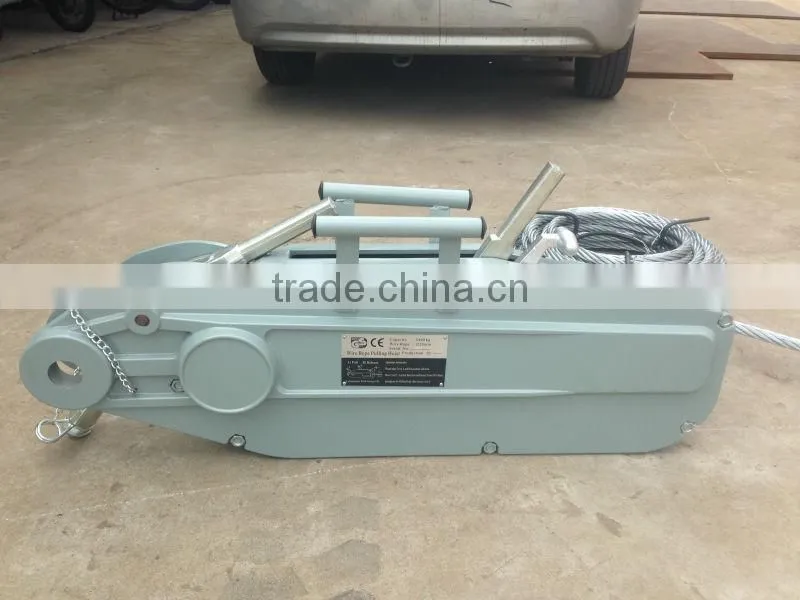

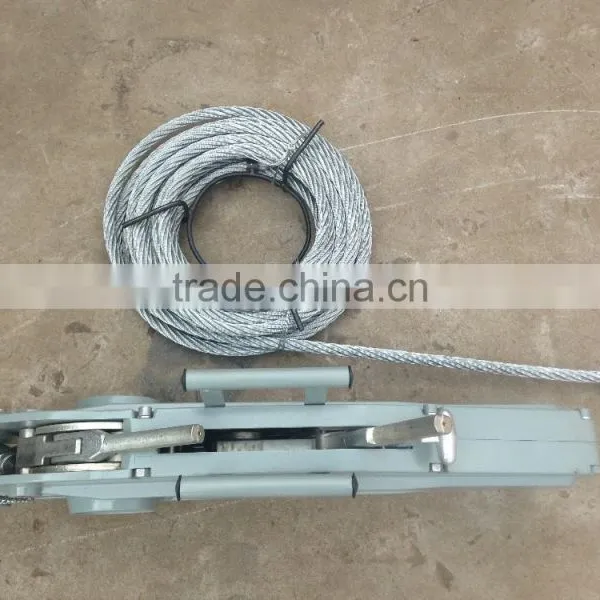

1.6T VIT Wire Rope Pulling Winch/Cable Hoist

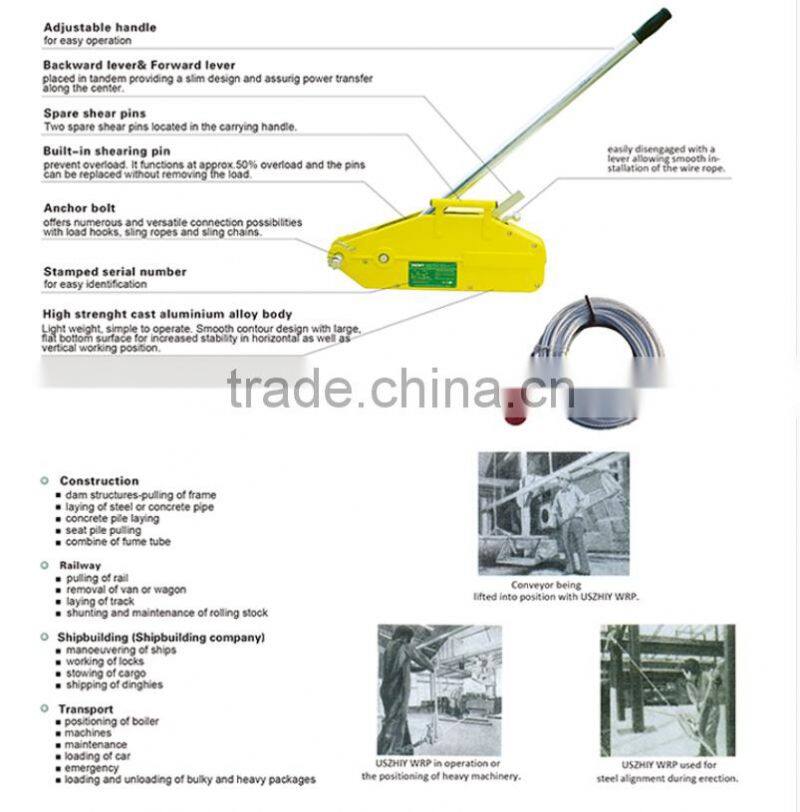

Use and Characteristic
1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.

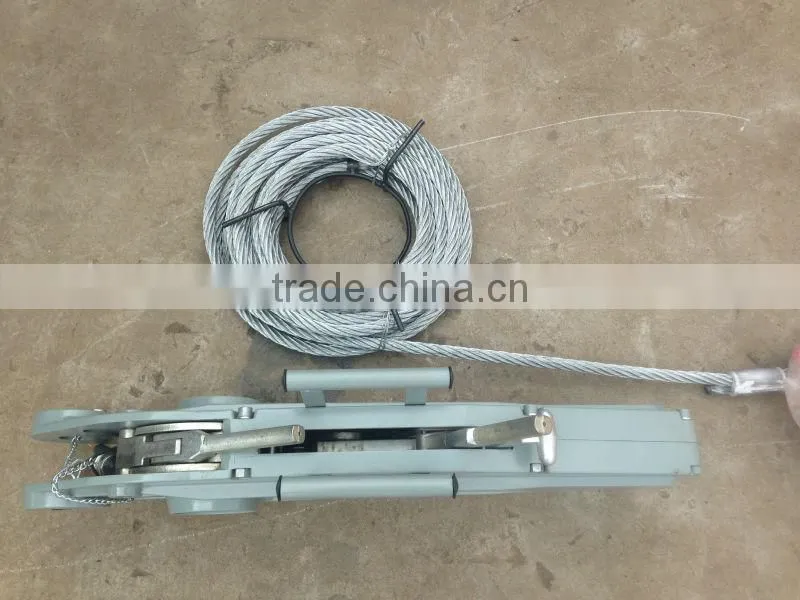

2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3) The hoist has low maintenance requirements and is easy service.
4) Overload protection ensures high personal safety when in operation.
5) Specially built-in shear pins can be replaced without removing the load.

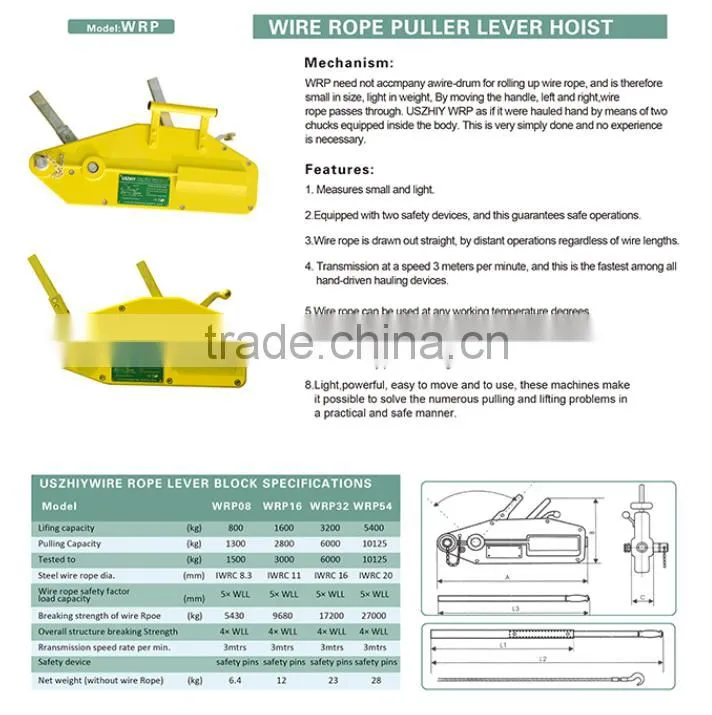

Technical Data
Model item |
VIT-800 |
VIT-1600 |
VIT-3200 |
VIT5400 |
Rated forward hand power(N) |
341 |
438 |
438 |
745 |
Rated capacity(KG) |
800 |
1600 |
3200 |
5400 |
Rated forward travel(MM) |
≥52 |
≥55 |
≥28 |
≥30 |
Rope diameter(MM) |
8.3 |
11 |
16 |
20 |
Wire rope safty factor load capacity(TIMES) |
5 |
5 |
5 |
5 |
Max travelling load(KG) |
1200 |
2400 |
4000 |
8000 |
Net weight(KG) |
6.4 |
12 |
28 |
56 |
Max outer size(MM) A |
426 |
545 |
660 |
930 |
B |
238 |
284 |
325 |
480 |
C |
64 |
97 |
116 |
152 |
L1(CM) |
|
80 |
80 |
68 |
L2(CM) |
80 |
120 |
120 |
112 |
Packing (L*W*H)(CM) |
43*6.4*24 |
54.5*9.7*29 |
66*12*35 |
110*110*73 |
