Hot Sale 5 Ton Speedy Gasoline Powered Towing Winch
US$ 1,400 - 2,500
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
JJM5B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Ton Diesel Engine Winch With 200 Wire Rope for Cable Pulling During Tower ErectionUS$ 900 - 1,250MOQ: 2 Sets -
3 Ton Petrol Engine Powered Winch/Cable Drum WinchUS$ 900 - 1,400MOQ: 2 Sets
-
8-shape Bend Resistance Connector Shackle To Connect Pilot RopeUS$ 6.5 - 100MOQ: 10 Pieces
-
16mm Double Braided Nylon Rope to Pull During Tower EerectionNegotiableMOQ: 1
-
3 Ton Single Nylon Sheave Snatch Block Hoisting Pulley With One Side OpenUS$ 15 - 100MOQ: 5 Pieces
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
JJM5B
Power Source
Other, gasoline, Yamaha petrol engine
Application
Other, Cranes, power construction; hositing;pulling
Capacity
5 Ton

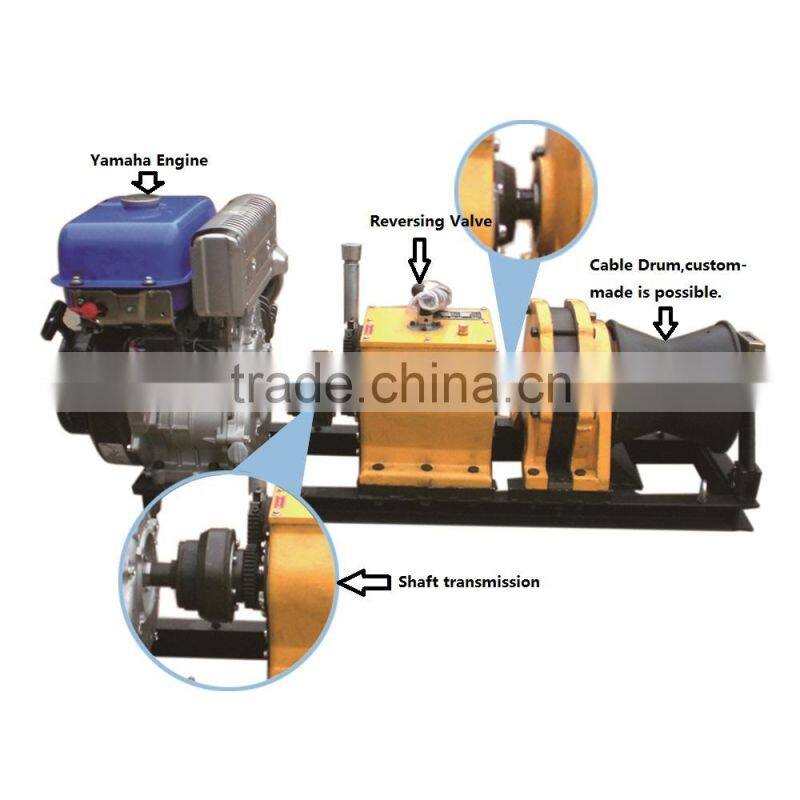

Hot sale 5 Ton Speedy Gasoline Powered Towing Winch
Application
Hot sale 5 Ton Speedy Gasoline Powered Towing Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Dimensions(mm) | Weight(kg) |
| JJM-5B | Fast | 9 | 24 | 1100*525*600 | 130 |
| Mid | 15 | 14 | |||
| Mid | 30 | 9 | |||
| Slow | 50 | 5 |
Test before shipment
Application
Different Types of Winches
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 | HONDA Petrol engine(6HP)or Homemade Petrol engine | (Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 | YAMAHA Petrol engine (9HP) or Homemade Gasoline engine | (Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 | HONDA Petrol engine or homemade petrol engine 13HP | (Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
