Home > Manufacturing & Processing Machinery > Lifting Equipment > Winch > 5 Ton Speedy Diesel Power Cable Pulling Winch
US$ 1,400 - 2,500
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Model Number:
JJM5
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale 5 Ton Speedy Gasoline Powered Towing WinchUS$ 1,400 - 2,500MOQ: 2 Sets -
3 Ton Diesel Engine Winch With 200 Wire Rope for Cable Pulling During Tower ErectionUS$ 900 - 1,250MOQ: 2 Sets
-
3 Ton Petrol Engine Powered Winch/Cable Drum WinchUS$ 900 - 1,400MOQ: 2 Sets
-
8-shape Bend Resistance Connector Shackle To Connect Pilot RopeUS$ 6.5 - 100MOQ: 10 Pieces
-
16mm Double Braided Nylon Rope to Pull During Tower EerectionNegotiableMOQ: 1
Place of Origin
Jiangsu, China
Brand Name
OEM
Model Number
JJM5
Power Source
Other, diesle engine, Diesel Engine
Application
Other, power construction, power construction
Capacity
50KN

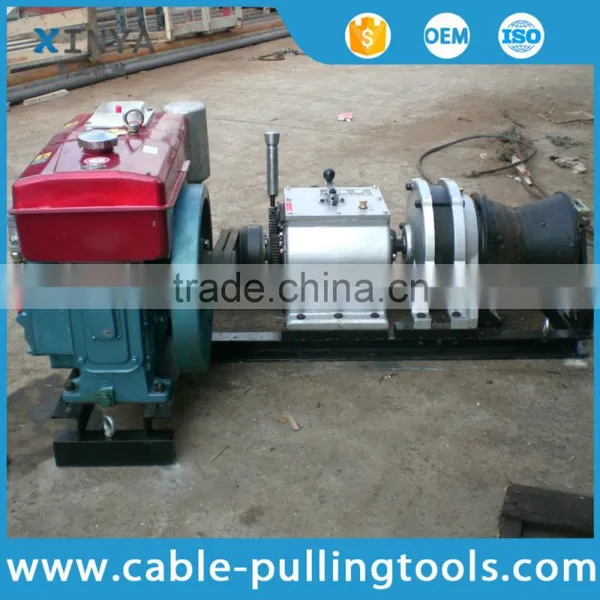

5 Ton Speedy Diesel Power Cable Pulling Winch
Application
5 Ton Speedy Diesel Power Cable Pulling Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Technical Data
| Model Type | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power(KW) | Dimension(mm) | Weight(kg) |
| JJM-5BC Diesel Engine | slow | 50 | 4.5 | 10 |
1100*498*600 | 137 |
| fast | 25 | 8.5 | ||||
| reverse | NO Lifting | 4 |
Test Before Shipment
Different Types of Winches
| Model | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJQ-1 | HONDA Petrol engine 4 HP | (Slow) | 10.0 | 0.8 | 36 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJD-1 | Electric motor 2.2kw | (Slow) | 10.0 | 0.8 | 46 |
| (Fast) | 15.0 | 0.6 | |||
| Reverse | 12.0 | No Lifting! | |||
| JJQ-3 | HONDA Petrol engine(6HP)or Homemade Petrol engine | (Slow) | 5.0 | 3.0 | 82 |
| (Fast) | 9.0 | 1.8 | |||
| Reverse | 4.0 | No Lifting! | |||
| JJC-3 | Diesel engine(4HP) | (Slow) | 6.0 | 3.0 | 108 |
| (Fast) | 11.0 | 1.8 | |||
| Reverse | 4.5 | No Lifting! | |||
| JJQ-5 | YAMAHA Petrol engine (9HP) or Homemade Gasoline engine | (Slow) | 5.0 | 5.0 | 145 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJC-5 | Diesel engine(6.6HP) | (Slow) | 5.0 | 5.0 | 180 |
| (Fast) | 9.0 | 2.5 | |||
| Reverse | 3.2 | No Lifting! | |||
| JJQ-8 | HONDA Petrol engine or homemade petrol engine 13HP | (Slow) | 3.0 | 8.0 | 168 |
| (Fast) | 5.0 | 3.0 | |||
| Reverse | 3.0 | No Lifting! | |||
| JJC-8 | Diesel engine 10.5HP | (Slow) | 4.0 | 8.0 | 230 |
| (Fast) | 7.5 | 3.0 | |||
| Reverse | 3.7 | No Lifting! |
