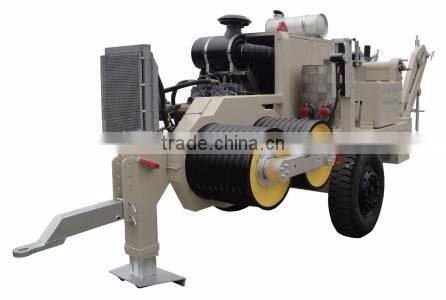

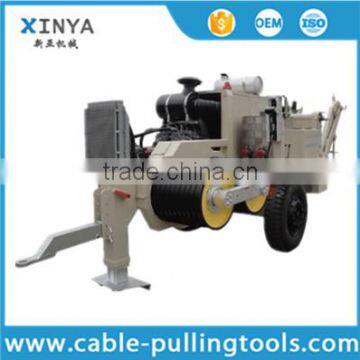

Help Center180KN Hydraulic Cable Puller SA-YQ180
Related Products
-
60KN Hydraulic Cable Puller Used In Overhead Transmission LineUS$ 15,000 - 55,000MOQ: 1 Set -
SA-YQ90 Hydraulic Cable Puller For Stringing Transmission Lines and ConductorsUS$ 15,000 - 55,000MOQ: 1 Set
-
SA-YQ40 Hydraulic Cable Puller For Overhead Transmission LineUS$ 15,000 - 55,000MOQ: 1 Set
-
SA-YQ30 Hydraulic Puller For Steel Wire Rope Cable Rope StringingUS$ 15,000 - 55,000MOQ: 1 Set
-
SA-KZM10 Winch Type Compressed Air Brake TensionerUS$ 10,000 - 50,000MOQ: 2 Sets
Technical Data:
Type No. |
SA-YQ180 |
Maximum linepull |
180KN |
Continuous linepull |
150KN |
Maximum linespeed |
5km/h |
Bullwheel bottom of groove diameter |
Φ630mm |
Bullwheel grooves number |
9 |
Maximum suitable steel rope diameter |
Φ24mm
|
Maximum through connector diameter |
Φ63mm |
Engine power /speed |
209/2100KW/rpm |
Dimensions (mm) |
5500×2170×2570
|
Weight |
7500kg |
Feature :
1.Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2.The max pull for conductor-stringing operation can preset ,automatic overload protection system .
3.Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4.Hydraulic pull rope pinch device,convenient for replacing reel .
5.Attached reel winder with automatically level wind ,load and unload conveniently .
Main Component :
1. Engine: Cummins(USA) water cooled diesel engine
2. Main variable displacement pump,main motor:Rexroth(BOSCH)
3. Reducer: RR(Italian)
4. Main hydraulic valves: Rexroth(BOSCH)
5. Radiator:AKG
6. Hydraulic instrument: WIKA
7. Mating with model GSP1600 drum
