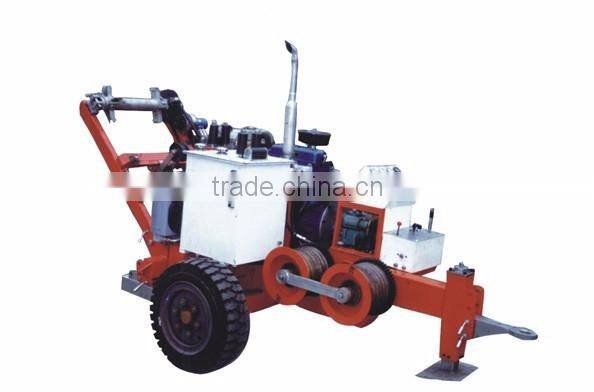

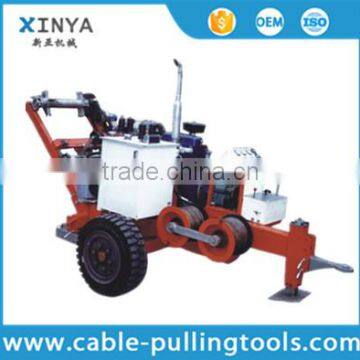

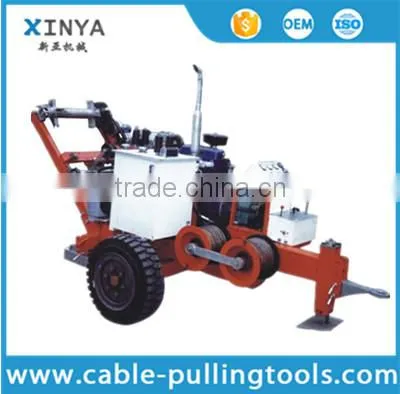

Help CenterSA-YQ30 Hydraulic Puller For Steel Wire Rope Cable Rope Stringing
Related Products
-
SA-KZM10 Winch Type Compressed Air Brake TensionerUS$ 10,000 - 50,000MOQ: 2 Sets -
SA-YZ4*45 Hydraulic Conductor Tensioner For Cable StringingUS$ 10,000 - 50,000MOQ: 2 Sets
-
SA-YZ2*70 Hydraulic Stringing Equipment Hydraulic TensionerUS$ 10,000 - 50,000MOQ: 2 Sets
-
SA-YZ2*50 Hydraulic Cable Pulling Tensioner Suitable For Various Conductors and EarthwireUS$ 10,000 - 50,000MOQ: 2 Sets
-
SA-YZ2*40A Hydraulic Tensioner For Wire And Conductor StringingUS$ 10,000 - 50,000MOQ: 2 Sets
Technical Data:
Type No. |
SA-YQ30 |
Maximum linepull |
30KN |
Continuous linepull |
25KN |
Bullwheel bottom of groove diameter |
Φ300mm |
Bullwheel grooves number |
7 |
Maximum suitable steel rope diameter |
Φ13mm
|
Maximum through connector diameter |
Φ40mm |
Engine power /speed |
31/2200KW/rpm |
Dimensions (mm) |
3200×1600×2000
|
Weight |
1500kg |
Feature :
1.Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2.The max pull for conductor-stringing operation can preset ,automatic overload protection system .
3.Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4.Attached reel winder with automatically level wind ,load and unload conveniently .
Main Component :
1. Chinese quality diesel engine.
2. Main pump:SAUER –SUNDSTRAND pump
3.Radiator:AKG
4.Hydraulic instrument: WIKA
5.Mating with model GSP950 drum
