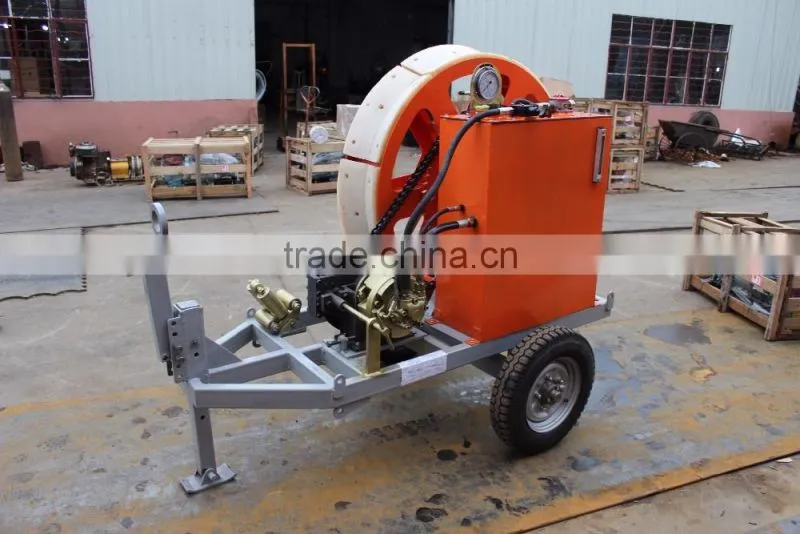

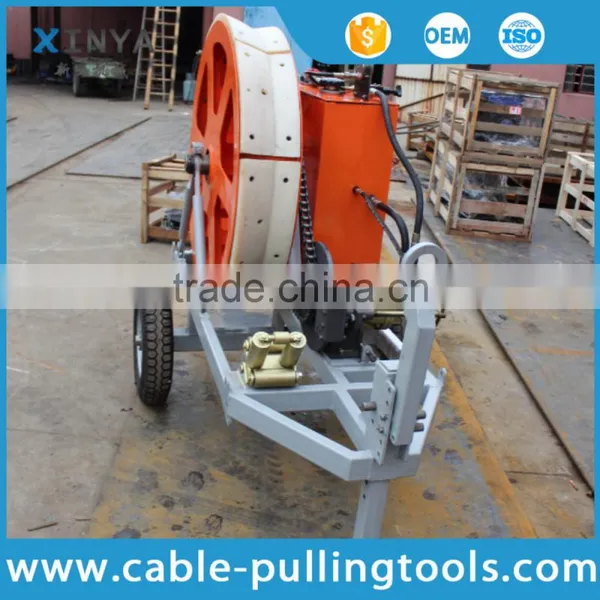

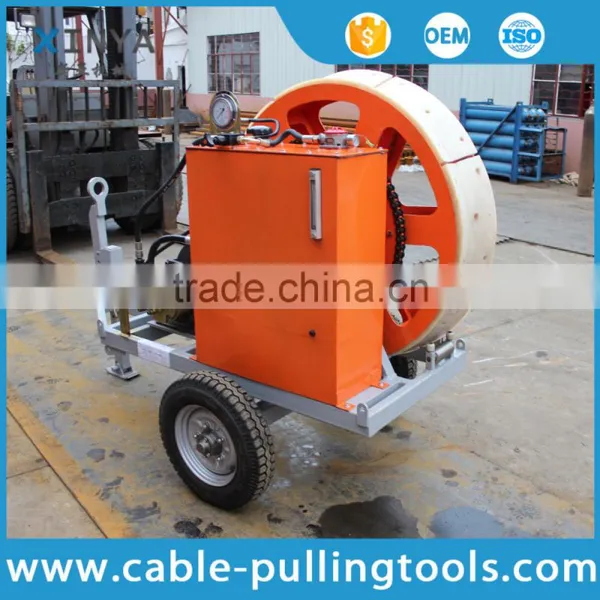

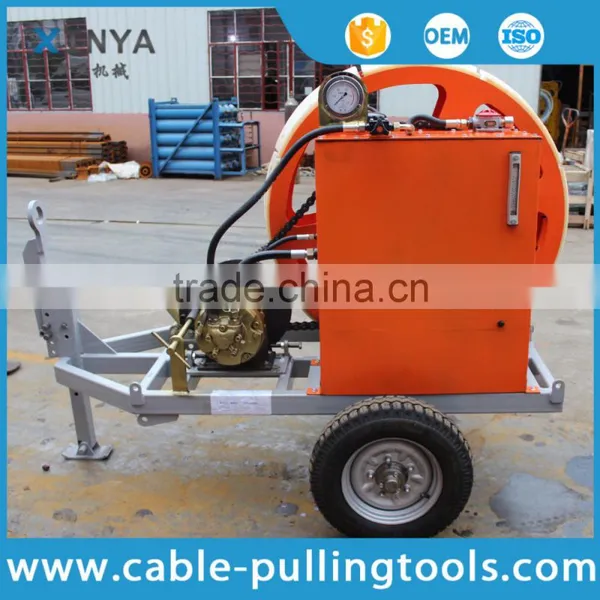

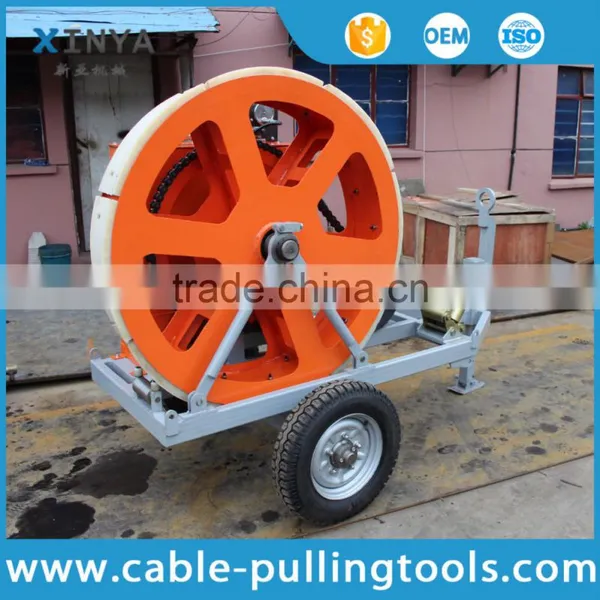

SA-KZM10 Winch Type Compressed Air Brake Tensioner
Application
Tension machine is used in power transmission and distribution engineering, telephone construction tower erection, traction cable, line, hoisting tools or heavy objects , the electric winch is driven by a belt, effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse gear moment to ensure the safety of construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Essential parameter:
Maximum Tension(KN): 10
Maximum linespeed(m/min): 40
Bullwheel bottom of groove diameter(mm): φ1100
Maximum suitable conductor diameter(mm): φ26
Dimensions(mm): 2300×1200×1600
Weight(kg): 470(can be disassembled to 5 pieces)
Features:
1.Adopt retarding with compressed air, adjust tension by the air valve.
2.Light, detachable and convenient to construct in mountainous area.
