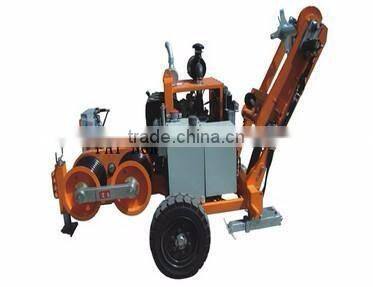

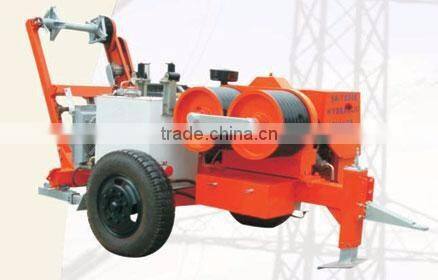

Help Center60KN Hydraulic Cable Puller Used In Overhead Transmission Line
Related Products
-
SA-YQ90 Hydraulic Cable Puller For Stringing Transmission Lines and ConductorsUS$ 15,000 - 55,000MOQ: 1 Set -
SA-YQ40 Hydraulic Cable Puller For Overhead Transmission LineUS$ 15,000 - 55,000MOQ: 1 Set
-
SA-YQ30 Hydraulic Puller For Steel Wire Rope Cable Rope StringingUS$ 15,000 - 55,000MOQ: 1 Set
-
SA-KZM10 Winch Type Compressed Air Brake TensionerUS$ 10,000 - 50,000MOQ: 2 Sets
-
SA-YZ4*45 Hydraulic Conductor Tensioner For Cable StringingUS$ 10,000 - 50,000MOQ: 2 Sets
Technical Data:
Type No. | SA-YQ60 |
Maximum linepull | 60KN |
Continuous linepull | 50KN |
Maximum linespeed | 5km/h |
Bullwheel bottom of groove diameter | Φ460mm |
Bullwheel grooves number | 7 |
Maximum suitable steel rope diameter | Φ18mm
|
Maximum through connector diameter | Φ60mm |
Engine power /speed | 77/2800KW/rpm |
Dimensions (mm) |
3800×2100×2300
|
Weight | 3000kg |
Feature :
1.Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2.The max pull for conductor-stringing operation can preset ,automatic overload protection system .
3.Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4.Attached reel winder with automatically level wind ,load and unload conveniently .
Main Component :
1. Engine: Cummins(DONGFENG) water cooled engine
2. Main variable pump and main motor: rexroth(BOSCH)
3.Reducer: RR(Italian)
4.Main hydraulic valve: rexroth(BOSCH)
5.Radiator: AKG
6.Hydraulic instrument: WIKA
7.Mating with model GSP1400 drum
8.If you choose Cummins(USA) watercooled diesel motor, the model is "YA-YQ60A"
