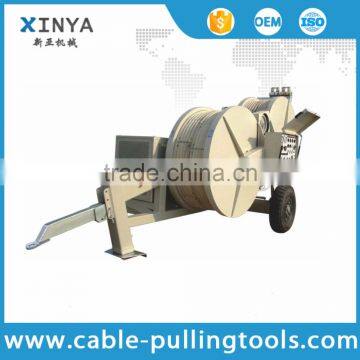

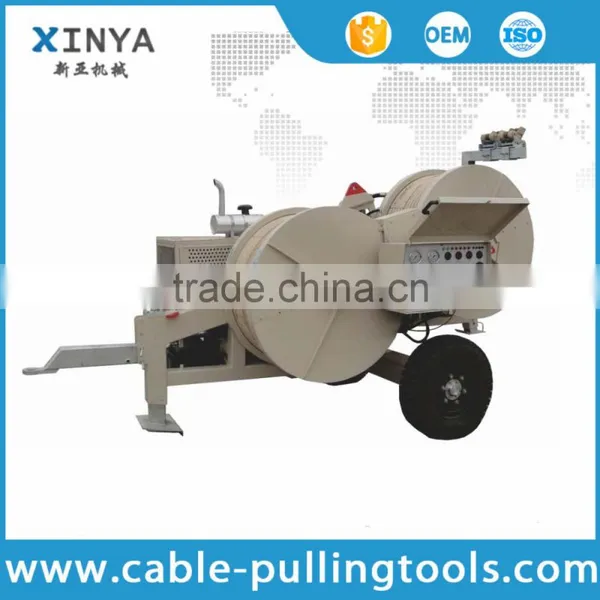

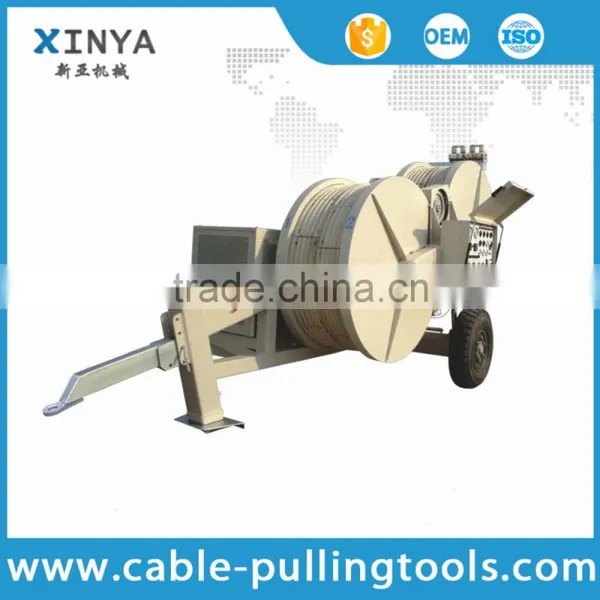

SA-YZ2x80 Overhead Line Equipment Hydraulic Puller Tensioner For Two Conductor
Essential parameter
Maximum Tension(kN) |
2×80 or 1×160 |
Continuous Tension(kN) |
2×75 or 1×150 |
Maximum speed (km/h) |
5 |
| Bullwheel bottom of groove diameter(mm) | Φ1700 |
| Bullwheel grooves number | 2×5 |
Maximum pullback (kN) |
2×126 |
Maximum speedback (km/h) |
2×1.6 |
Maximum suitable conductor diameter (mm) |
Φ45 |
Engine power /speed (kW/rpm) |
82.5/2500 |
Dimensions (mm) |
5300 × 2300×2900 |
Weight(kg) |
8500 |
Uses
It is used for stringing various conductors and earth wires.
It is stringing one conductor to tow bundle conductors.
·Feature :
- Bullwheel with wearproof MC nylon lining segments.
- Infinitely variable tension control and constant tension conductor stringing .
- Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
- attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .
·Main component
1. Engine :Chinese famous brand water–cooled engine .
2. main pump and main motor : Rexroth (BOSCH )
3. Reducer : RR(Italian) or Rexroth
4. hydraulic valve : Rexroth (BOSCH )
5. radiator :AKG
6. hydraulic instrument :WIKA
7. it can choose :Deutz air–cooled engine .
