Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller

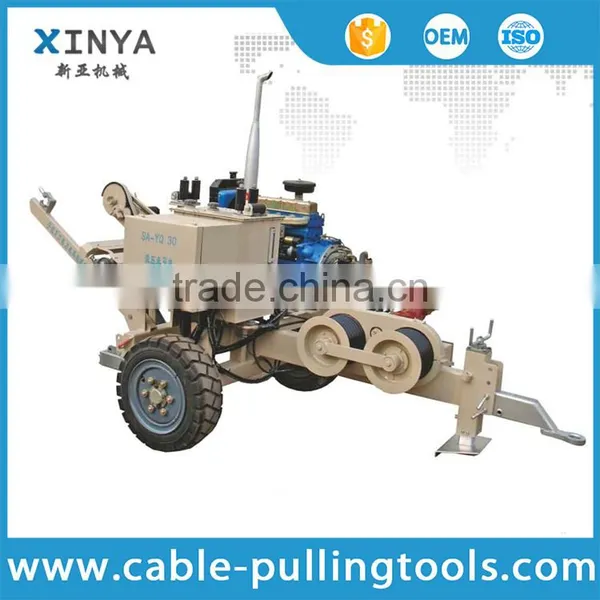

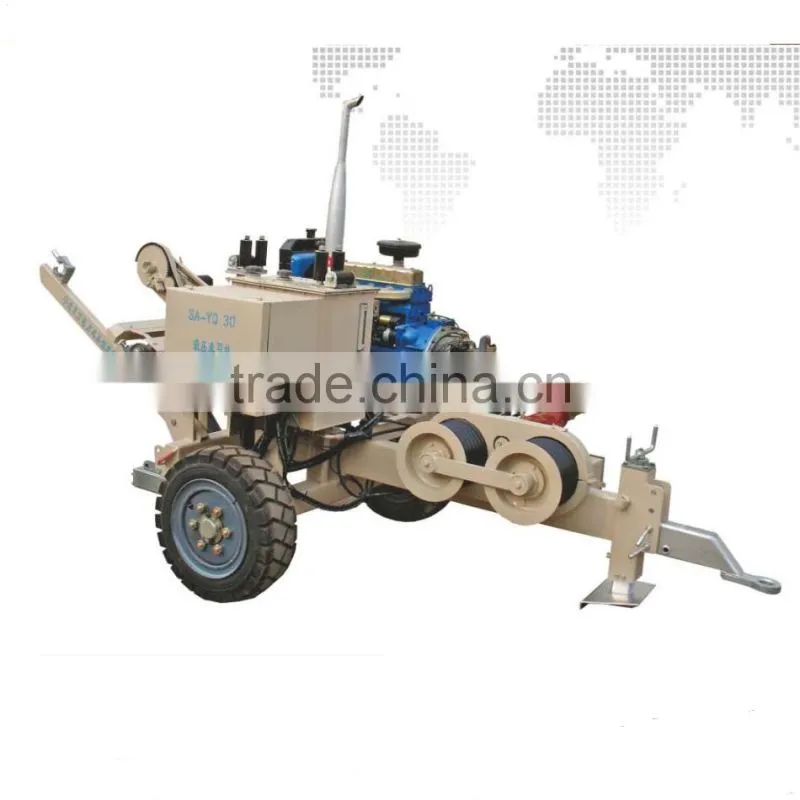

Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller photo-1
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Xinya
Model Number:
SA-YQ30
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Xinya
Model Number SA-YQ30
Type Other, Hydraulic puller





Product Description



Hydraulic Power Puller SA-YQ30 Hydraulic Cable PullerHydraulic Power Puller SA-YQ30 Hydraulic Cable Puller

Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller



Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller



Application

Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller is applicable to release wire, ground wire, cable in transmission line project.



Characteristic

1. infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .

2. the max pull  for conductor –stringing operation can preset ,automatic overpull  protection system .

3. spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .

4. attached reel winder with automatically level wind .load and unload conveniently .



Main component :

1. Chinese quality diesel engine

2. Main pump:SAUER-SUNDSTRAND pump

3. Radiator:AKG

4. Hydraulic instrument:WIKA

5. Mating with model GSP950 drum



Technical Data for  Hydraulic Power Puller SA-YQ40 Hydraulic Cable Puller

Product  30KN hydraulic puller
Type No. SA-YQ30
Maximum linepull (kN) 30
Continuous linepull (kN) 25
Maximum linespeed (km/h) 5
Bullwheel bottom of groove diameter(mm)  Φ300
Bullwheel grooves number  7

Maximum suitable steelrope diameter (mm)

 Φ13

Maximum through connector diameter (mm)

 Φ40
Engine power /speed (kW/rpm) 31/2200
Dimensions (mm) 3200×1600×2000

Weight (kg)

 1500





Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller



Hydraulic Power Puller SA-YQ30 Hydraulic Cable Puller
